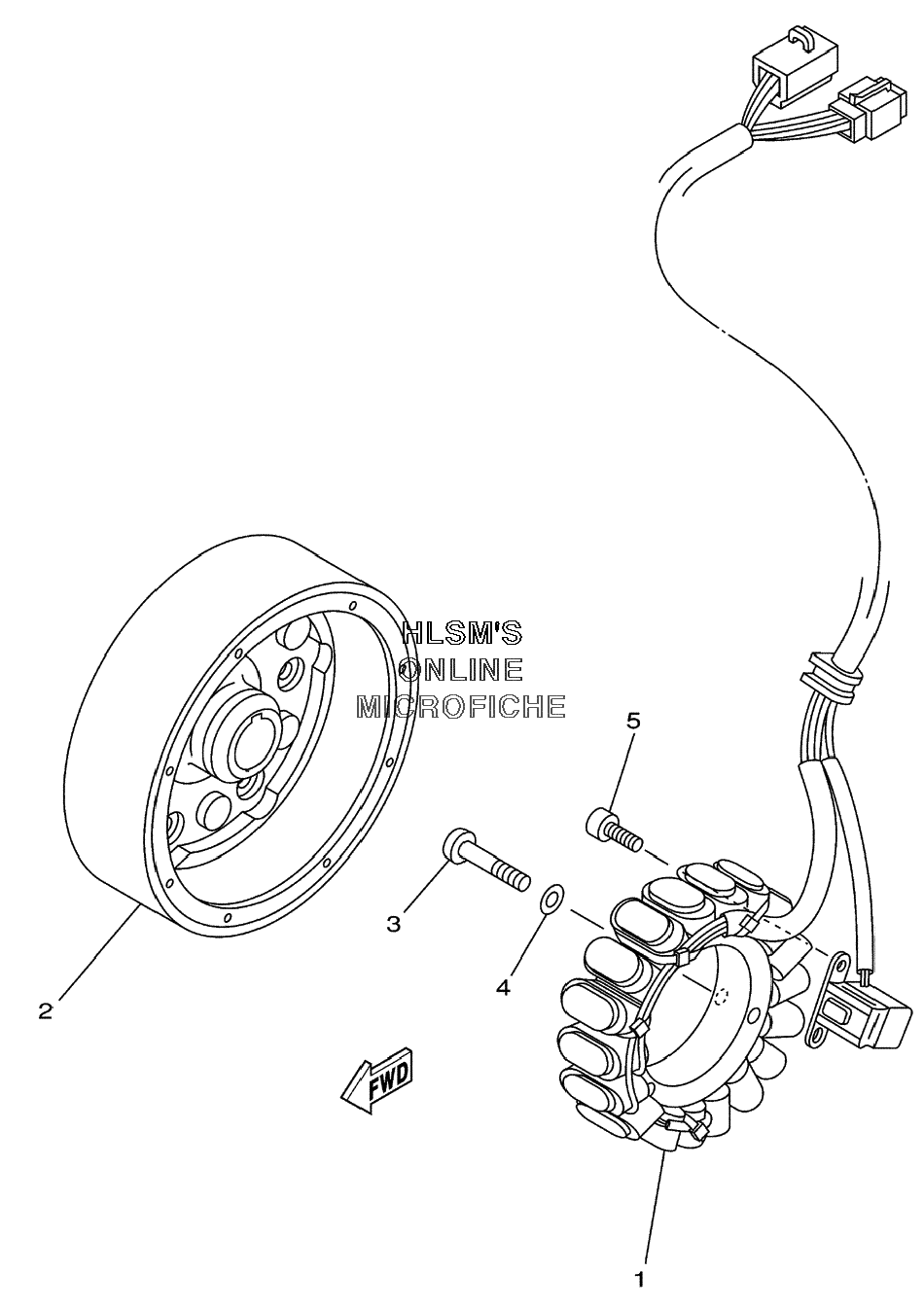

GENERATOR для Yamaha KODIAK 4WD AUTOMATIC YFM400FAM (5GH1) - 2000 года выпуска
-
№АртикулНазвание
-
15GH-81410-00-00 STATOR ASSYSTATOR ASSY
-
25GH-81450-00-00 ROTOR ASSYROTOR ASSY
-
398507-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
492907-06600-00 WASHER, PLATEWASHER, PLATE
-
591317-05012-00 BOLTBOLT
