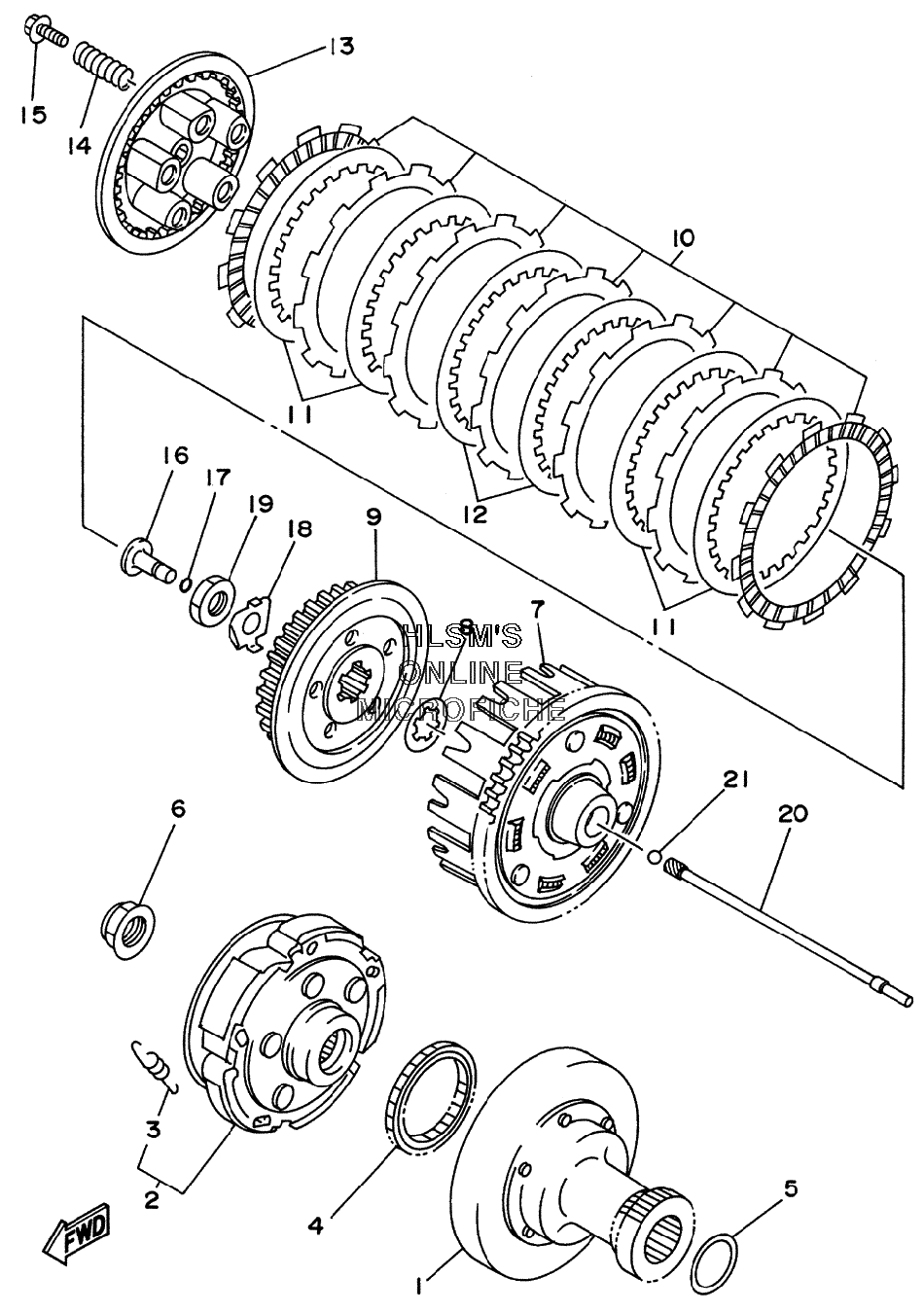

CLUTCH для Yamaha WOLVERINE YFM35FXM CALIFORNIA (4KBH) - 2000 года выпуска
-
№АртикулНазвание
-
14WU-16611-00-00 CLUTCH HOUSING COMPCLUTCH HOUSING COMP
-
24SH-16620-01-00 CLUTCH CARRIER ASSEMBLYCLUTCH CARRIER ASSEMBLY
-
34SH-16626-00-00 ...SPRING, CLUTCH WEIGHT 1...SPRING, CLUTCH WEIGHT 1
-
44SH-16664-00-00 BEARING, ONE WAYBEARING, ONE WAY
-
590201-301P3-00 WASHER, PLATEWASHER, PLATE
-
690179-22640-00 NUTNUT
-
74KB-16150-00-00 PRIMARY DRIVEN GEAR COMPPRIMARY DRIVEN GEAR COMP
-
830X-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
955V-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
105Y1-16331-01-00 PLATE, FRICTION 2PLATE, FRICTION 2
-
11168-16325-00-00 PLATE, CLUTCH 2PLATE, CLUTCH 2
-
123J2-16324-00-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
135Y1-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
1490501-23598-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1590159-06010-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
164KB-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1793210-06422-00 O-RINGO-RING
-
1890215-16289-00 WASHER, LOCKWASHER, LOCK
-
1990170-16326-00 NUTNUT
-
204KB-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2193511-32017-00 BALLBALL
