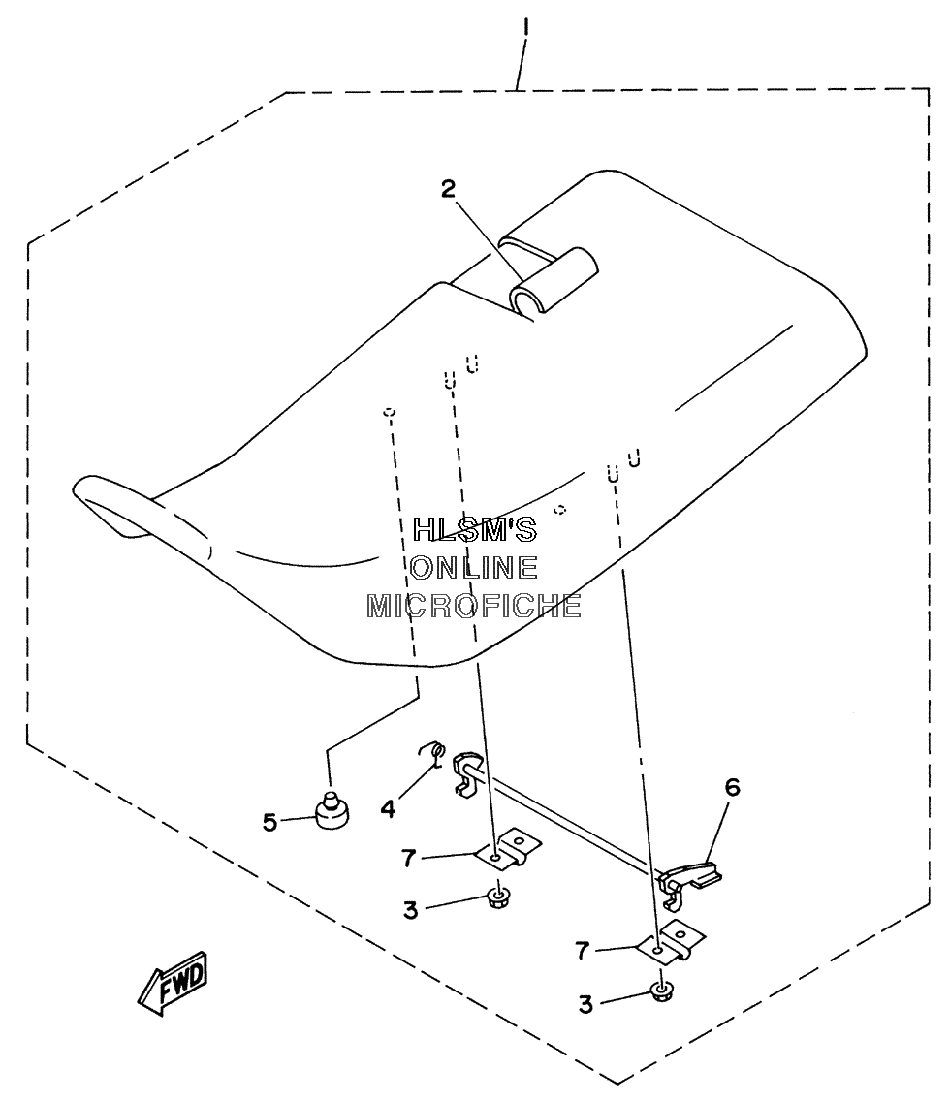

SEAT для Yamaha WOLVERINE YFM35FXM CALIFORNIA (4KBH) - 2000 года выпуска
-
№АртикулНазвание
-
14KB-24710-10-00 SINGLE SEAT ASSEMBLY (YAMAHA BLACK)SINGLE SEAT ASSEMBLY (YAMAHA BLACK)
-
14KB-24710-40-00 SINGLE SEAT ASSEMBLY (GRAY)SINGLE SEAT ASSEMBLY (GRAY)
-
24KB-24731-10-00 ...COVER, SEAT (YAMAHA BLACK)...COVER, SEAT (YAMAHA BLACK)
-
24KB-24731-40-00 ...COVER, SEAT (GRAY)...COVER, SEAT (GRAY)
-
395707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
490508-23567-00 ...SPRING, TORSION...SPRING, TORSION
-
5371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
64KB-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
759V-24775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
