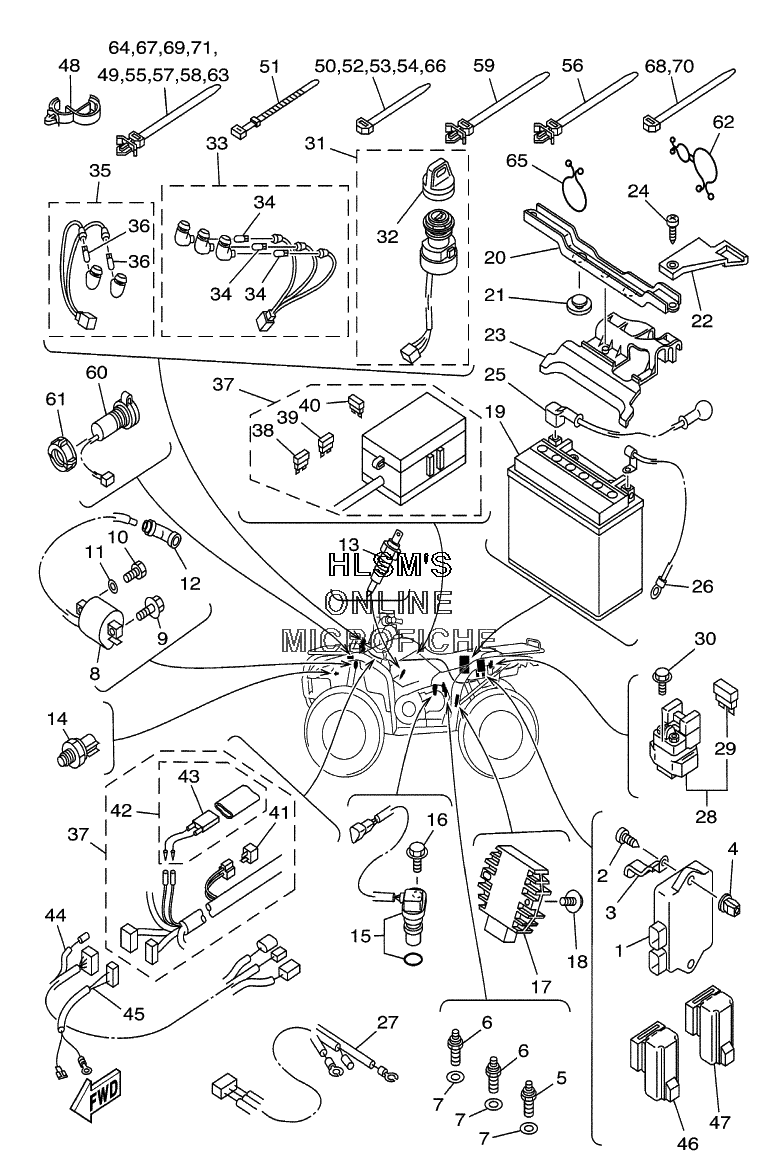

ELECTRICAL для Yamaha KODIAK 4X4 YFM400AN (5GH9) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-85540-10-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
297707-60525-00 SCREW, TAPPINGSCREW, TAPPING
-
390462-06016-00 CLAMPCLAMP
-
490338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
53GD-82540-11-00 REVERSE SWITCHREVERSE SWITCH
-
64KM-82540-00-00 REVERSE SWITCH ASSYREVERSE SWITCH ASSY
-
790430-10148-00 GASKETGASKET
-
83KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
990109-06723-00 BOLTBOLT
-
1097007-06020-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
121UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
134BA-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
145GH-82560-00-00 THERMOSWITCH ASSYTHERMOSWITCH ASSY
-
154XV-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
1690110-06001-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
175GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1895807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
194SH-82100-21-00 BATTERY ASSY (YTX20L-BS)BATTERY ASSY (YTX20L-BS)
-
205GH-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
21371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
225GH-82119-00-00 COVER, LEAD WIRECOVER, LEAD WIRE
-
235GH-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
2497707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
255GH-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
265GH-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
275GH-82541-00-00 WIRE, LEADWIRE, LEAD
-
284SV-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
291AE-82151-00-00 ......FUSE (30A-BL)......FUSE (30A-BL)
-
3095027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
314GB-82510-10-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
323HN-82579-00-00 ......CAP, KEY......CAP, KEY
-
335GH-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
345GH-83516-00-00 ......BULB (14V-1.7W)......BULB (14V-1.7W)
-
355GH-83530-10-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
365GH-83516-00-00 ......BULB (14V-1.7W)......BULB (14V-1.7W)
-
375GH-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
385JJ-82151-10-00 ......FUSE (15A-BL)......FUSE (15A-BL)
-
395JJ-82151-30-00 ......FUSE (10A-BL)......FUSE (10A-BL)
-
405JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
413WP-81980-00-00 ......DIODE ASSY......DIODE ASSY
-
425GT-82180-00-00 ......CIRCUIT BREAKER ASSY......CIRCUIT BREAKER ASSY
-
435GT-82560-00-00 ......THERMOSWITCH ASSY......THERMOSWITCH ASSY
-
445GH-82309-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
455GH-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
4629U-81950-93-00 RELAY ASSYRELAY ASSY
-
472NL-81950-92-00 RELAY ASSYRELAY ASSY
-
4890464-15195-00 CLAMPCLAMP
-
4990464-12089-00 CLAMPCLAMP
-
5090464-13073-00 CLAMPCLAMP
-
51437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
5290464-13073-00 CLAMPCLAMP
-
5390464-13073-00 CLAMPCLAMP
-
5490464-13073-00 CLAMPCLAMP
-
5590464-12089-00 CLAMPCLAMP
-
5690464-12036-00 CLAMPCLAMP
-
5790464-12089-00 CLAMPCLAMP
-
5890464-12089-00 CLAMPCLAMP
-
5990464-10112-00 CLAMPCLAMP
-
605GH-8254B-00-00 TERMINAL COMPTERMINAL COMP
-
615GH-82114-00-00 NUTNUT
-
6290464-25098-00 CLAMPCLAMP
-
6390464-12089-00 CLAMPCLAMP
-
6490464-12089-00 CLAMPCLAMP
-
6590465-10098-00 CLAMPCLAMP
-
6690464-13073-00 CLAMPCLAMP
-
6790464-12089-00 CLAMPCLAMP
-
6890464-15195-00 CLAMPCLAMP
-
6990464-12089-00 CLAMPCLAMP
-
7090464-15195-00 CLAMPCLAMP
-
7190464-12089-00 CLAMPCLAMP
-
7290890-56001-00 ATV KEY BLANK (TYPE-A) (NOT SHOWN)ATV KEY BLANK (TYPE-A) (NOT SHOWN)
-
7390890-56002-00 ATV KEY BLANK (TYPE-B) (NOT SHOWN)ATV KEY BLANK (TYPE-B) (NOT SHOWN)
