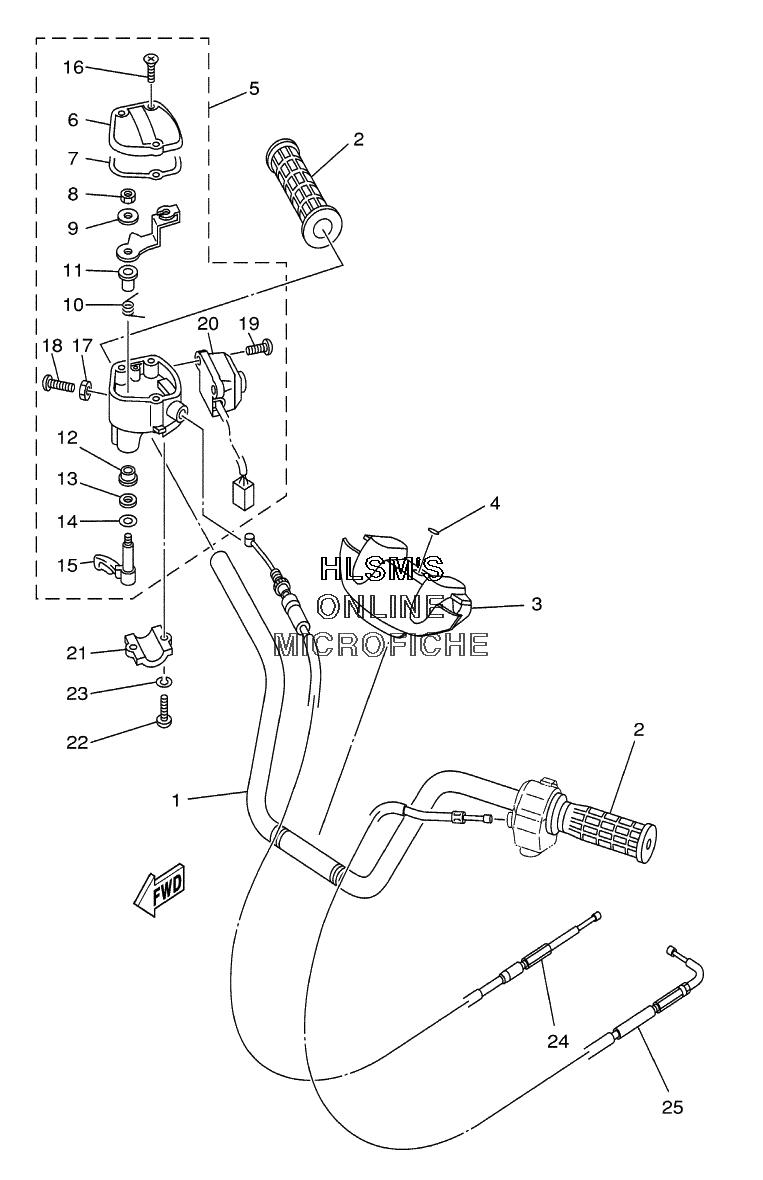

HANDLEBAR W/ THROTTLE - CABLES для Yamaha KODIAK 4X4 YFM400AN (5GH9) - 2001 года выпуска
-
№АртикулНазвание
-
15GH-26111-00-00 HANDLEBARHANDLEBAR
-
23GB-26241-00-00 GRIPGRIP
-
35GH-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45GT-2836B-00-00 TUNING FORK (12MM)TUNING FORK (12MM)
-
54WV-26250-00-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
64KB-2628F-00-00 ......CAP, GEAR......CAP, GEAR
-
74KB-2628G-00-00 ......GASKET......GASKET
-
895607-05100-00 ......NUT, U......NUT, U
-
91NV-26398-00-00 ......WASHER......WASHER
-
101NV-26304-00-00 ......SPRING......SPRING
-
111NV-26259-01-00 ...COLLAR...COLLAR
-
121NV-2625K-00-00 ......COLLAR......COLLAR
-
1393104-09025-00 ......OIL SEAL......OIL SEAL
-
141NV-26129-00-00 ......WASHER......WASHER
-
151NV-2625G-01-00 ......LEVER, THROTTLE......LEVER, THROTTLE
-
1690149-04278-00 ...SCREW, SPEC'L SHAPE...SCREW, SPEC'L SHAPE
-
1795307-05700-00 ...NUT...NUT
-
1898507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1997607-04210-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
204WV-83976-00-00 ...SWITCH, HANDLE...SWITCH, HANDLE
-
214V4-82913-00-00 HOLDER, LEVER LOWERHOLDER, LEVER LOWER
-
2298507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392907-05100-00 WASHER, SPRINGWASHER, SPRING
-
245GH-26311-00-00 CABLE, THROTTLECABLE, THROTTLE
-
255GH-26331-00-00 CABLE, STARTERCABLE, STARTER
