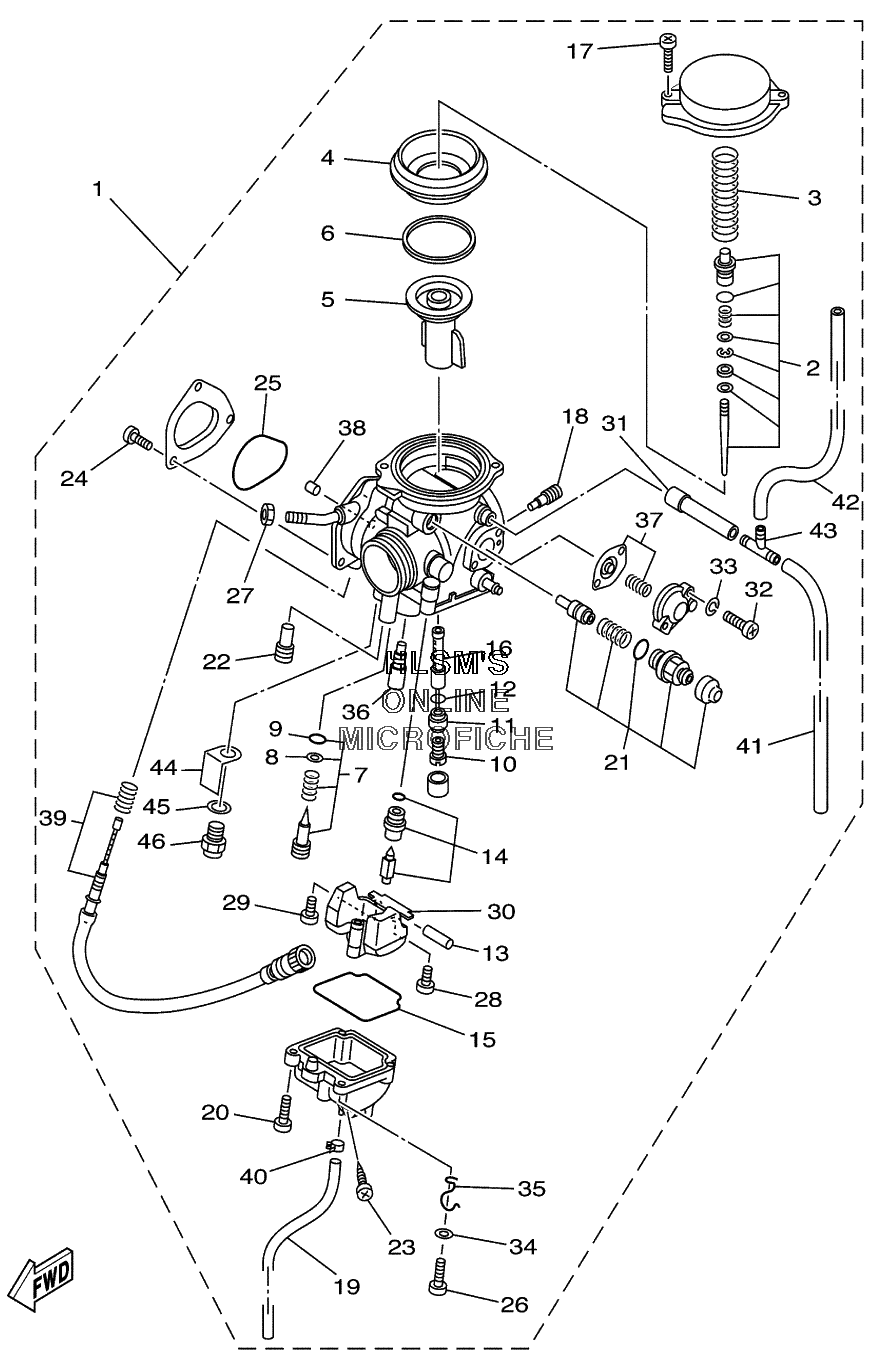

CARBURETOR для Yamaha BIG BEAR 400 4X4 REAL TREE YFM400FHP (5GUA) - 2002 года выпуска
-
№АртикулНазвание
-
15FU-14101-12-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
25FU-1490J-00-00 ...NEEDLE SET...NEEDLE SET
-
35DM-14933-00-00 ...SPRING, DIAPHRAGM...SPRING, DIAPHRAGM
-
45GH-14940-10-00 .........DIAPHRAGM ASSY.........DIAPHRAGM ASSY
-
55DM-14112-00-00 ......VALVE, THROTTLE 1......VALVE, THROTTLE 1
-
65GH-14918-10-00 ...RING...RING
-
75FU-14105-10-00 ...PILOT SCREW SET (WHITE SPRING)...PILOT SCREW SET (WHITE SPRING)
-
83H1-14962-00-00 .........WASHER.........WASHER
-
93H1-14147-00-00 .........O-RING.........O-RING
-
103G2-1423A-73-00 ...JET, MAIN (112.5)...JET, MAIN (112.5)
-
115DM-14261-00-00 ...HOLDER...HOLDER
-
12583-14561-00-00 ......O-RING......O-RING
-
13127-14186-00-00 ......PIN, FLOAT......PIN, FLOAT
-
144SV-14107-20-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
155DM-14561-00-00 .........O-RING.........O-RING
-
165DM-14141-40-00 .........NOZZLE, MAIN.........NOZZLE, MAIN
-
174KM-14216-00-00 ......SCREW......SCREW
-
181HX-14231-16-00 .........JET, MAIN (# 80).........JET, MAIN (# 80)
-
194KB-14193-20-00 .........PIPE.........PIPE
-
2098580-04010-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
215GH-1410A-00-00 .........STARTER SET.........STARTER SET
-
223G2-14231-14-00 ...JET,PILOT AIR(70)...JET,PILOT AIR(70)
-
2312R-14191-00-00 ......PLUG, DRAIN......PLUG, DRAIN
-
2498507-04006-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
254WV-14147-10-00 ......O-RING......O-RING
-
2698507-04016-00 ......SCREW, PAN HEAD......SCREW, PAN HEAD
-
27522-14161-00-00 .........NUT, CABLE ADJUSTING.........NUT, CABLE ADJUSTING
-
2898507-04008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
291FN-14565-00-00 ...SCREW...SCREW
-
305DM-14985-00-00 .........FLOAT.........FLOAT
-
315FU-14197-00-00 ...PIPE...PIPE
-
3298501-04014-00 .........SCREW, PAN HEAD.........SCREW, PAN HEAD
-
3392902-04100-00 ......WASHER, SPRING......WASHER, SPRING
-
3492907-04600-00 ...WASHER...WASHER
-
355FU-14937-00-00 ...CLIP...CLIP
-
364KM-14142-17-00 ...JET, PILOT ( 17.5)...JET, PILOT ( 17.5)
-
375EL-1490H-00-00 .........DIAPHRAGM SET 5.........DIAPHRAGM SET 5
-
381UY-14155-00-00 ......GUIDE, CABLE......GUIDE, CABLE
-
395FU-14103-01-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
4090467-06194-00 .........CLIP.........CLIP
-
413XV-14348-00-00 ...PIPE 1...PIPE 1
-
427T9-14987-00-00 ...HOSE...HOSE
-
4390413-05014-00 ...WAY 3...WAY 3
-
443BT-82103-00-00 ...TERMINAL 1...TERMINAL 1
-
4590201-085R5-00 ...WASHER, PLATE...WASHER, PLATE
-
464TR-83790-00-00 ...HEATER ASSY (15W)...HEATER ASSY (15W)
