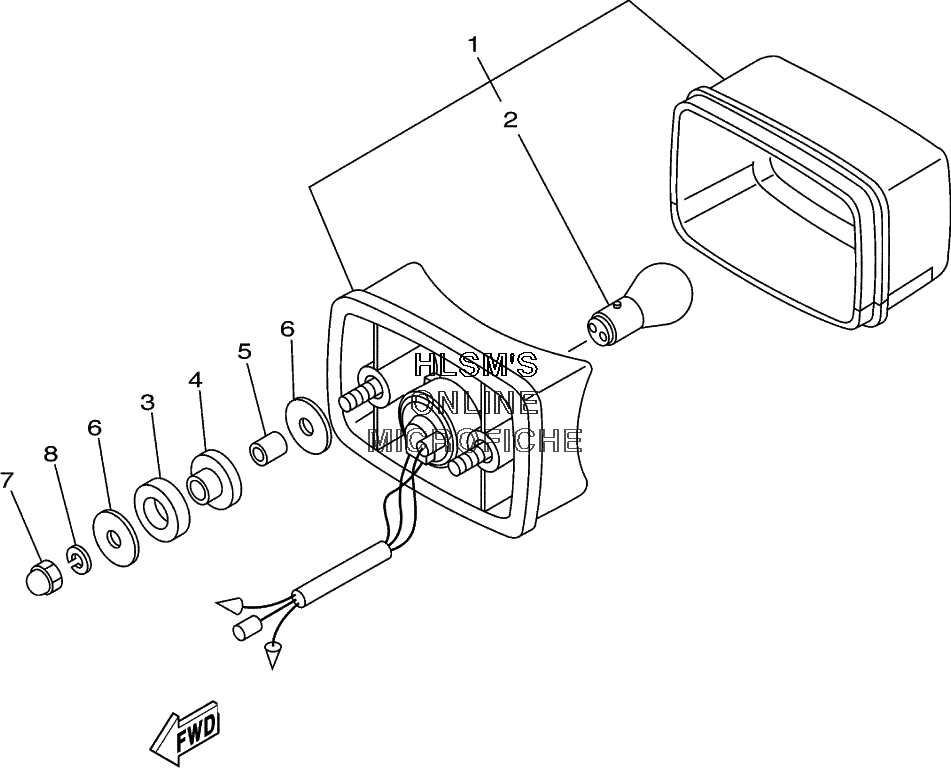

TAILLIGHT для Yamaha BIG BEAR 400 4X4 REAL TREE YFM400FHP (5GUA) - 2002 года выпуска
-
№АртикулНазвание
-
15KM-84710-00-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
21A2-84714-41-00 ...BULB...BULB
-
390202-14077-00 WASHER, PLATEWASHER, PLATE
-
490480-14088-00 GROMMETGROMMET
-
590560-07007-00 SPACERSPACER
-
690201-06074-00 WASHER, PLATEWASHER, PLATE
-
795307-06800-00 NUTNUT
-
89290P-06100-00 WASHERWASHER
