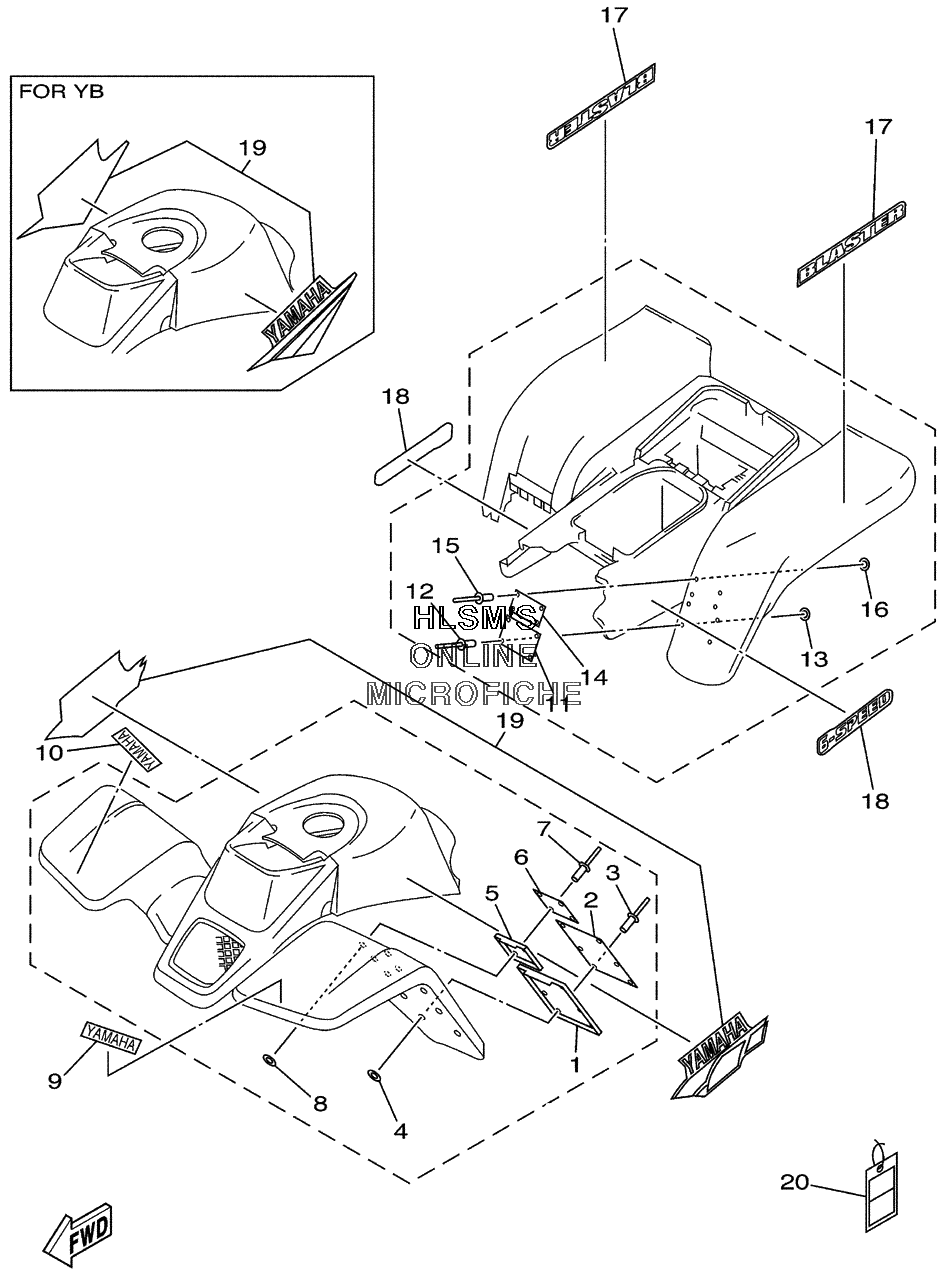

EMBLEM LABEL для Yamaha BLASTER YFS200P (5KJ7) - 2002 года выпуска
-
№АртикулНазвание
-
14EM-21581-20-00 STAY, PLATE FITTING 1 (DEEP PURPLISH BLUE SOLID E) (DPSE)STAY, PLATE FITTING 1 (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
14EM-21581-40-00 STAY, PLATE FITTING 1 (YAMAHA BLACK) (YB)STAY, PLATE FITTING 1 (YAMAHA BLACK) (YB)
-
25FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
390267-32198-00 RIVET, BLINDRIVET, BLIND
-
490201-03313-00 WASHER, PLATEWASHER, PLATE
-
53JM-21591-10-00 STAY, PLATE FITTING 2 (DEEP PURPLISH BLUE SOLID E) (DPSE)STAY, PLATE FITTING 2 (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
53JM-21591-40-00 STAY, PLATE FITTING 2 (YAMAHA BLACK) (YB)STAY, PLATE FITTING 2 (YAMAHA BLACK) (YB)
-
65FE-21697-01-00 LABEL, CAUTION 2LABEL, CAUTION 2
-
790267-32198-00 RIVET, BLINDRIVET, BLIND
-
890201-03313-00 WASHER, PLATEWASHER, PLATE
-
93GD-2153E-00-00 EMBLEM, YAMAHA (DEEP PURPLISH BLUE SOLID E) (DPSE)EMBLEM, YAMAHA (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
93GD-2153E-10-00 EMBLEM, YAMAHA (YAMAHA BLACK) (YB)EMBLEM, YAMAHA (YAMAHA BLACK) (YB)
-
103GD-2153E-00-00 EMBLEM, YAMAHA (DEEP PURPLISH BLUE SOLID E) (DPSE)EMBLEM, YAMAHA (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
103GD-2153E-10-00 EMBLEM, YAMAHA (YAMAHA BLACK) (YB)EMBLEM, YAMAHA (YAMAHA BLACK) (YB)
-
113JM-21696-41-00 LABEL, CAUTIONLABEL, CAUTION
-
1290267-32004-00 RIVET, BLINDRIVET, BLIND
-
1390201-03313-00 WASHER, PLATEWASHER, PLATE
-
145FE-2151H-01-00 LABEL 5LABEL 5
-
1590267-32004-00 RIVET, BLINDRIVET, BLIND
-
1690201-03313-00 WASHER, PLATEWASHER, PLATE
-
175KJ-2163G-10-00 EMBLEM 1 (DEEP PURPLISH BLUE SOLID E) (DPSE)EMBLEM 1 (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
175KJ-2163G-20-00 EMBLEM 1 (YAMAHA BLACK) (YB)EMBLEM 1 (YAMAHA BLACK) (YB)
-
185KJ-2163H-01-00 EMBLEM 2 (DEEP PURPLISH BLUE SOLID E) (DPSE)EMBLEM 2 (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
185KJ-2163H-10-00 EMBLEM 2 (YAMAHA BLACK) (YB)EMBLEM 2 (YAMAHA BLACK) (YB)
-
195KJ-2173L-30-00 GRAPHIC SET 1 (DEEP PURPLISH BLUE SOLID E) (DPSE)GRAPHIC SET 1 (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
195KJ-2173L-40-00 GRAPHIC SET 1 (YAMAHA BLACK) (YB)GRAPHIC SET 1 (YAMAHA BLACK) (YB)
