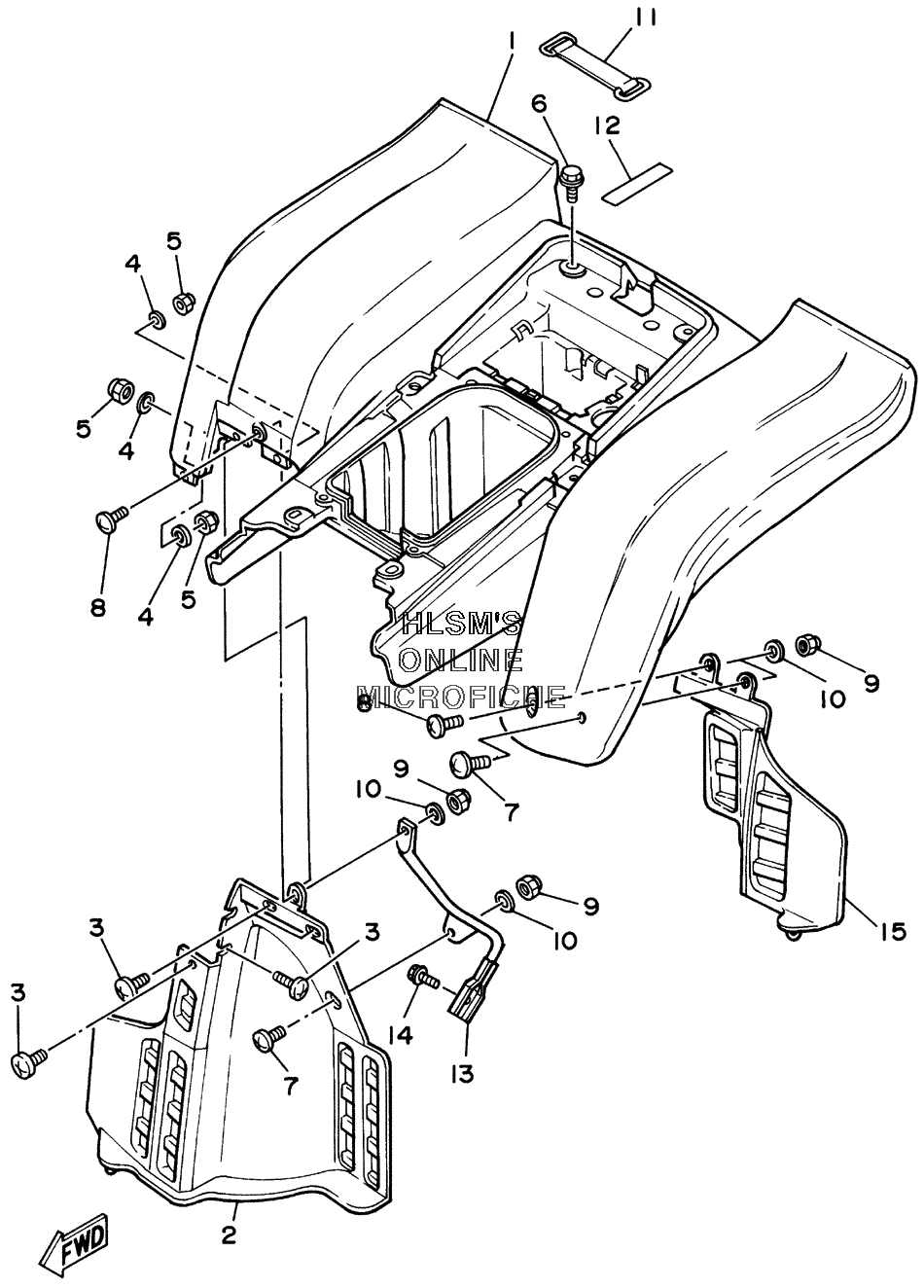

FENDER - REAR для Yamaha BLASTER YFS200P (5KJ7) - 2002 года выпуска
-
№АртикулНазвание
-
12XJ-W2161-N1-00 REAR FENDER COMP. (YAMAHA BLACK) (YB)REAR FENDER COMP. (YAMAHA BLACK) (YB)
-
12XJ-W2161-R1-00 REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E) (DPSE)REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E) (DPSE)
-
23JM-21621-00-00 FLAPFLAP
-
390154-05005-00 SCREW, BINDINGSCREW, BINDING
-
492907-05200-00 WASHERWASHER
-
595607-05100-00 NUT, UNUT, U
-
690119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790149-06306-00 SCREWSCREW
-
890150-06037-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
995607-06100-00 NUT, UNUT, U
-
1092907-06200-00 WASHERWASHER
-
112T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
1293210-61750-00 O-RINGO-RING
-
132XJ-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
1492017-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
153JM-21691-00-00 FLAPFLAP
Все узлы модели:
- AIR CLEANER W/ INTAKE
- BRAKE - REAR
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- ELECTRICAL
- EMBLEM LABEL
- EXHAUST
- FENDER - FRONT
- • FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- GUARD W/ CARRIER - FRONT/REAR
- HANDLEBAR W/ SWITCHES - LEVERS
- HANDLEBAR W/ THROTTLE - CABLE
- HEADLIGHT
- MODEL INFO - COLOR CHART
- OIL PUMP
- OIL TANK
- SEAT
- SHIFT CAM FORK
- SHIFT SHAFT
- STARTER - KICK
- STEERING
- SUSPENSION - FRONT
- SUSPENSION - REAR ARM
- SUSPENSION - REAR SHOCK ABSORBER
- TAILLIGHT
- TRANSMISSION
- WHEEL - FRONT W/ BRAKE
- WHEEL - REAR W/ AXLE
