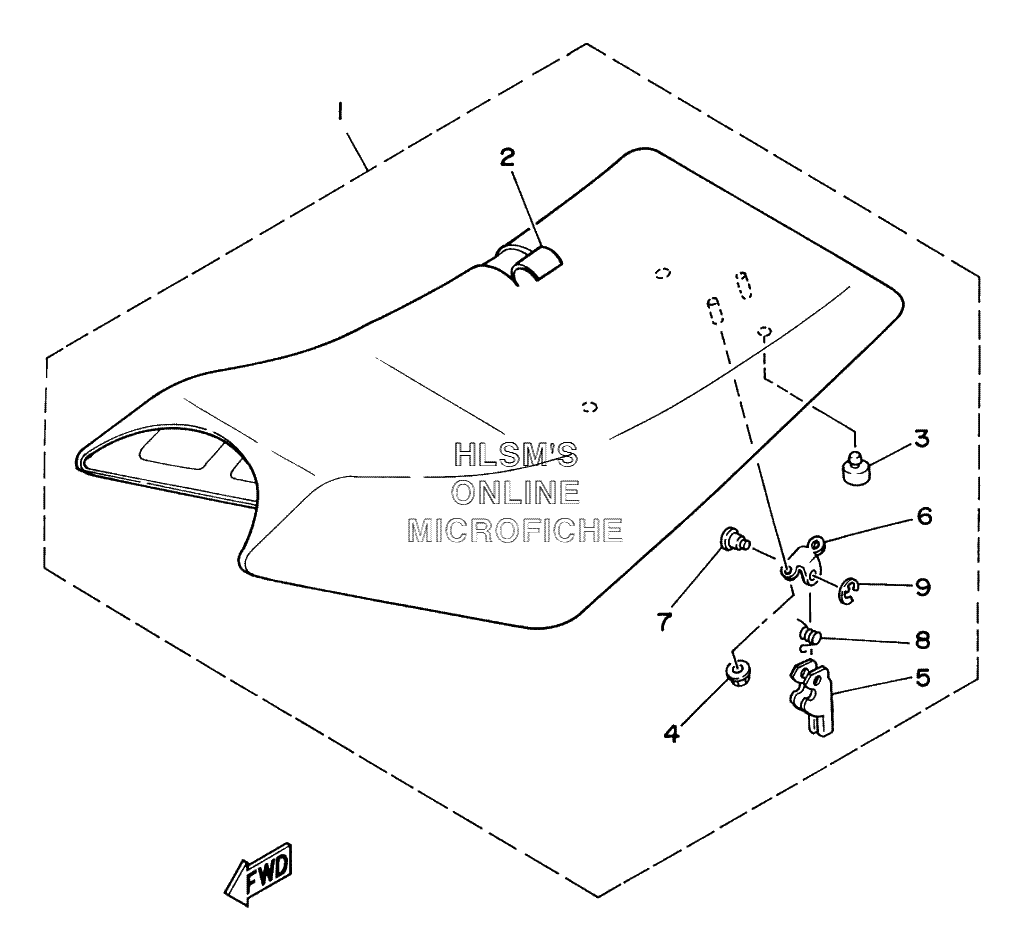

SEAT для Yamaha BREEZE YFA1P (3FAW) - 2002 года выпуска
-
№АртикулНазвание
-
13FA-24710-80-00 SINGLE SEAT ASSYSINGLE SEAT ASSY
-
23FA-24731-80-00 ...COVER, SEAT...COVER, SEAT
-
3371-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
495707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
529U-24776-00-00 ...LEVER, SEAT...LEVER, SEAT
-
64K0-24775-00-00 ...BRACKET, SEAT LEVER...BRACKET, SEAT LEVER
-
74K0-24774-01-00 ...PIN...PIN
-
890508-20779-00 ...SPRING, TORSION...SPRING, TORSION
-
999001-04600-00 ...CIRCLIP...CIRCLIP
Все узлы модели:
- AIR CLEANER W/ INTAKE
- CAMSHAFT CHAIN
- CARBURETOR
- CLUTCH
- CRANKCASE
- CRANKCASE COVER
- CRANKSHAFT - PISTON
- CYLINDER HEAD
- DECALS
- ELECTRICAL
- EXHAUST
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BRAKE PEDAL
- FRAME
- FUEL TANK
- GENERATOR
- GUARD W/ CARRIER - FRONT/REAR
- HANDLEBAR W/ SWITCHES - LEVERS
- HANDLEBAR W/THROTTLE - CABLES
- HEADLIGHT
- MODEL INFO - COLOR CHART
- OIL PUMP
- • SEAT
- SHIFT LEVER W/CAM FORK
- STARTER - CLUTCH
- STARTER - RECOIL
- STARTING MOTOR
- STEERING
- SUSPENSION - FRONT
- SUSPENSION - REAR ARM
- TAILLIGHT
- TRANSMISSION
- VALVE
- WHEEL - FRONT W/ BRAKE
- WHEEL - REAR W/ AXLE - BRAKE
