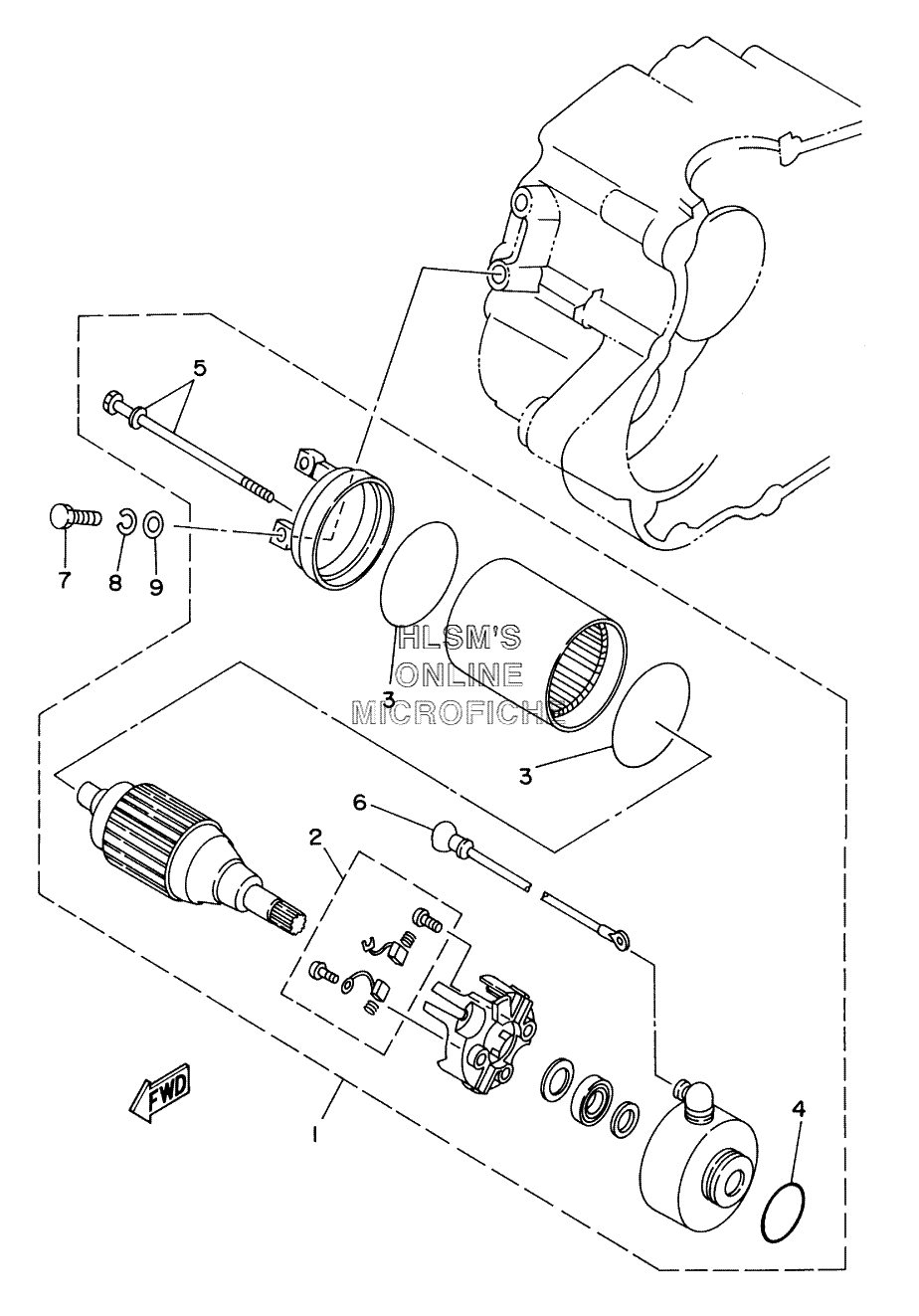

STARTING MOTOR для Yamaha BREEZE YFA1P (3FAW) - 2002 года выпуска
-
№АртикулНазвание
-
13FA-81800-01-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
250M-81801-M0-00 ...BRUSH SET...BRUSH SET
-
393210-55669-00 ...O-RING...O-RING
-
493210-25711-00 ...O-RING...O-RING
-
53FA-81828-00-00 ...BOLT 2...BOLT 2
-
63FA-8183G-00-00 ...CORD COMP...CORD COMP
-
797007-06025-00 BOLTBOLT
-
892907-06100-00 WASHER, SPRINGWASHER, SPRING
-
992907-06600-00 WASHER, PLATEWASHER, PLATE
