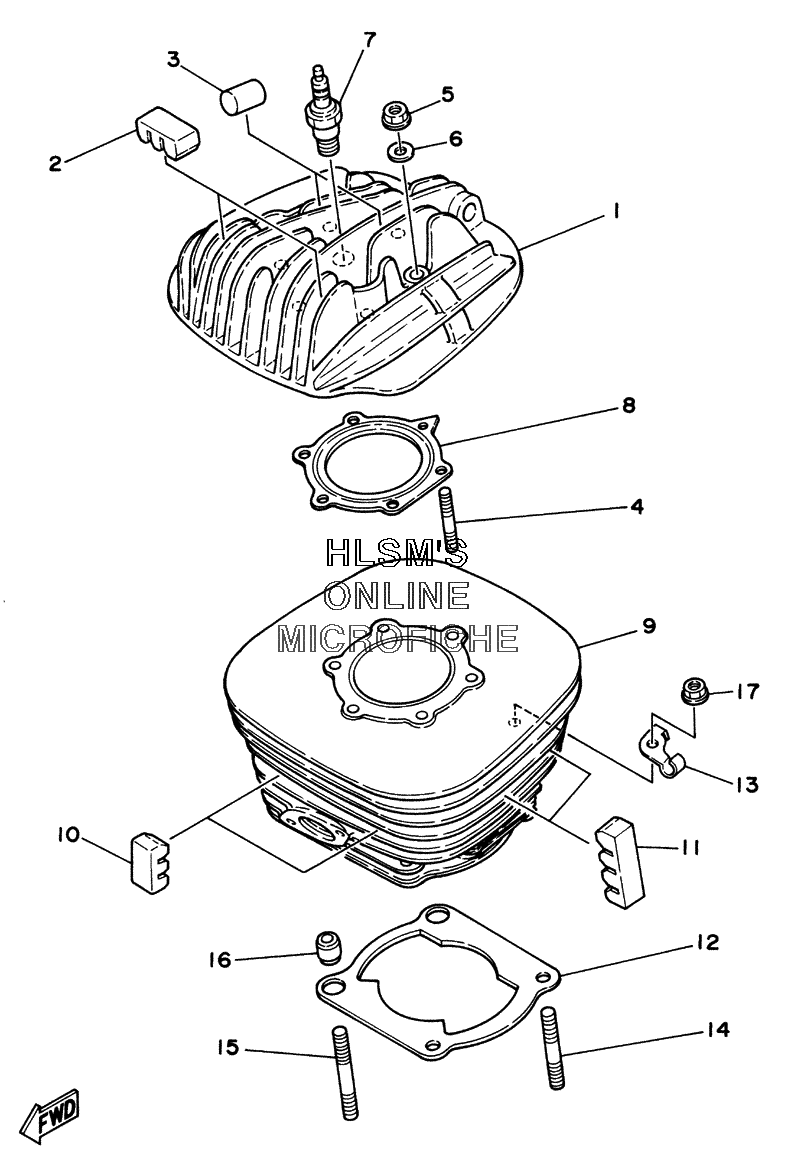

CYLINDER HEAD для Yamaha BLASTER YFS200R (5VM1) - 2003 года выпуска
-
№АртикулНазвание
-
12XJ-11111-00-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
23R9-11162-00-00 ABSORBER 2ABSORBER 2
-
31K6-11128-00-00 ABSORBER 4ABSORBER 4
-
490116-08394-00 BOLT, STUDBOLT, STUD
-
595317-08600-00 NUTNUT
-
690201-08649-00 WASHER, PLATEWASHER, PLATE
-
794701-00204-00 PLUG, SPARK (NGK BR8ES)PLUG, SPARK (NGK BR8ES)
-
82XJ-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
92XJ-11311-02-00 CYLINDER 1CYLINDER 1
-
103R9-11162-00-00 ABSORBER 2ABSORBER 2
-
113R6-11162-00-00 ABSORBER 2ABSORBER 2
-
123JM-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
-
1310V-1131E-00-00 HOLDER 1HOLDER 1
-
1490116-08318-00 BOLT, STUDBOLT, STUD
-
1590116-08388-00 BOLT, STUDBOLT, STUD
-
1699530-10114-00 PIN, DOWELPIN, DOWEL
-
1790179-08299-00 NUTNUT
