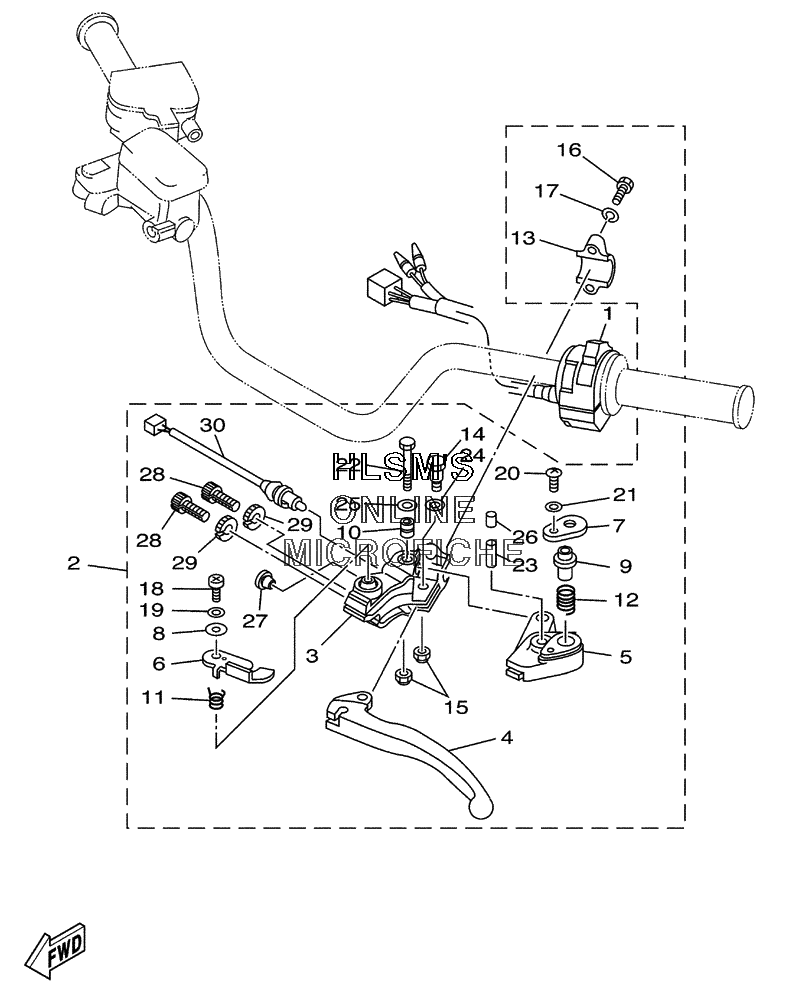

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha BLASTER YFS200R (5VM1) - 2003 года выпуска
-
№АртикулНазвание
-
15KJ-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
23GG-82910-10-00 LEVER HOLDER ASSY (LEFT)LEVER HOLDER ASSY (LEFT)
-
34KB-82911-00-00 ...HOLDER, LEVER 1...HOLDER, LEVER 1
-
45LP-83912-00-00 ...LEVER 1...LEVER 1
-
51UY-83922-01-00 ...LEVER 2...LEVER 2
-
64KB-W8393-00-00 ...LOCK, LEVER ASSY...LOCK, LEVER ASSY
-
71UY-83935-00-00 ...COVER...COVER
-
81UY-83909-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
91UY-83967-00-00 ...PIN, LOCK 1...PIN, LOCK 1
-
101UY-83913-00-00 ...COLLAR, LEVER 1...COLLAR, LEVER 1
-
111UY-83966-00-00 ...SPRING, RETURN...SPRING, RETURN
-
121UY-83962-00-00 ...SPRING...SPRING
-
132XJ-82913-00-00 ...HOLDER, LEVER LOWER 1...HOLDER, LEVER LOWER 1
-
1490109-06576-00 ...BOLT...BOLT
-
1595607-06100-00 ...NUT, U...NUT, U
-
1697027-06025-00 ...BOLT...BOLT
-
1792907-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
1898507-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1992907-05600-00 ...WASHER, PLATE...WASHER, PLATE
-
2098507-03008-00 ...SCREW...SCREW
-
2192907-03600-00 ...WASHER...WASHER
-
2297007-06040-00 ...BOLT...BOLT
-
2391690-40022-00 ...PIN, SPRING...PIN, SPRING
-
2490201-082A9-00 ...WASHER, PLATE...WASHER, PLATE
-
2592907-06200-00 ...WASHER...WASHER
-
261UY-83956-00-00 ...CAP 1...CAP 1
-
2790338-12192-00 ...PLUG...PLUG
-
2890123-08046-00 ...BOLT...BOLT
-
2990179-08148-00 ...NUT...NUT
-
304KB-82917-00-00 ...SWITCH...SWITCH
