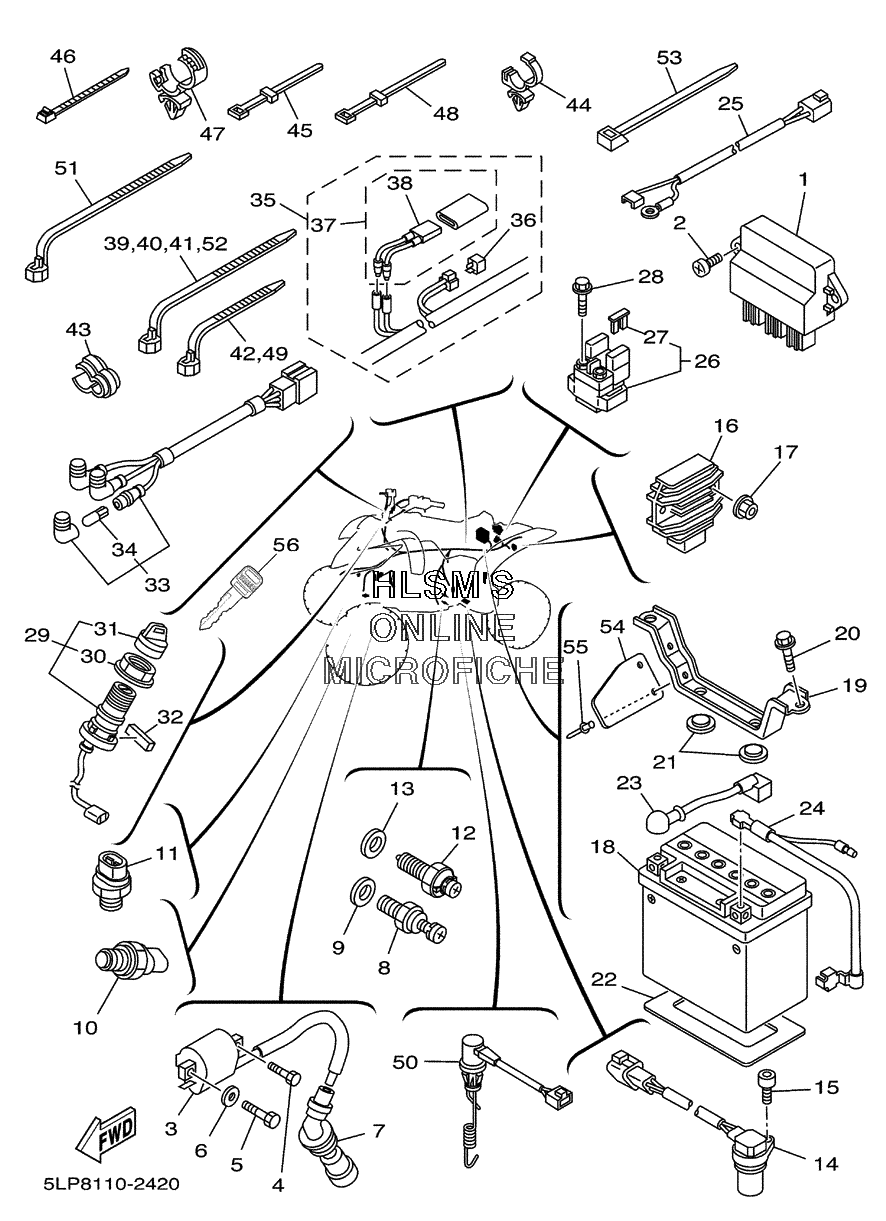

ELECTRICAL для Yamaha RAPTOR 660R YFM660RR (5LPC) - 2003 года выпуска
-
№АртикулНазвание
-
15LP-85540-20-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
298907-06016-00 SCREW, BINDSCREW, BIND
-
34KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
490109-06723-00 BOLTBOLT
-
597007-06020-00 BOLTBOLT
-
692907-06600-00 WASHER, PLATEWASHER, PLATE
-
73YF-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
85LP-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
990430-10148-00 GASKETGASKET
-
105GH-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
115LP-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
124GY-82540-10-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1390430-10148-00 GASKETGASKET
-
145LP-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
1590110-06124-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
165GT-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1795707-06500-00 NUT, FLANGENUT, FLANGE
-
183XW-82100-01-00 BATTERY ASSY (YTX14-BS) (YUASA)BATTERY ASSY (YTX14-BS) (YUASA)
-
195LP-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
2095807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
21371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
225LP-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
235LP-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
245LP-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
255LP-82541-00-00 WIRE, LEADWIRE, LEAD
-
264XE-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
272GH-82151-00-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
2895027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
295LP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
303HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
313HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
325LP-82176-00-00 DAMPERDAMPER
-
335LP-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
345GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
355LP-82590-10-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
363WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
375GT-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
385GT-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
3990464-15195-00 CLAMPCLAMP
-
4090464-15195-00 CLAMPCLAMP
-
4190464-15195-00 CLAMPCLAMP
-
4290464-13073-00 CLAMPCLAMP
-
4390464-15065-00 CLAMPCLAMP
-
4490464-20181-00 CLAMPCLAMP
-
45437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4690465-13M11-00 CLAMPCLAMP
-
4790464-07209-00 CLAMPCLAMP
-
483TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4990464-13073-00 CLAMPCLAMP
-
505LP-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
5190464-13077-00 CLAMPCLAMP
-
5290464-15195-00 CLAMPCLAMP
-
5390464-16061-00 CLAMPCLAMP
-
545LP-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
5590267-48120-00 RIVET, BLINDRIVET, BLIND
