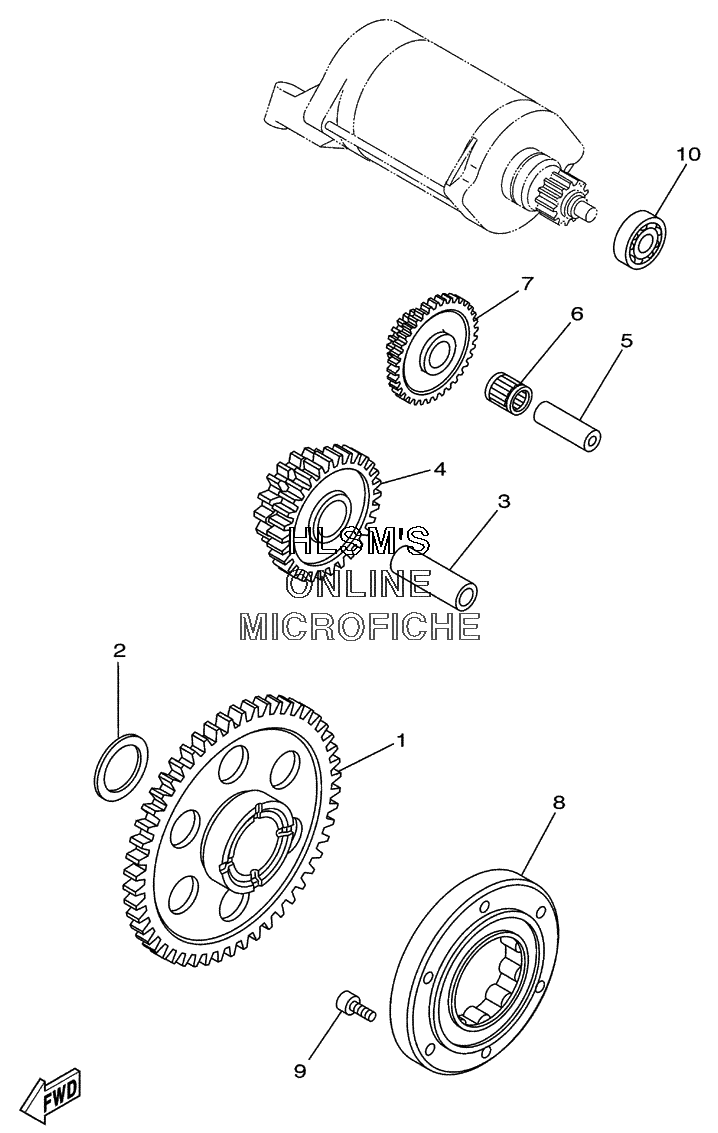

STARTER CLUTCH для Yamaha RAPTOR 660R YFM660RR (5LPC) - 2003 года выпуска
-
№АртикулНазвание
-
15LP-15515-10-00 GEAR 3 (52T)GEAR 3 (52T)
-
290201-286K9-00 WASHER, PLATEWASHER, PLATE
-
31VJ-15522-00-00 SHAFT 2SHAFT 2
-
45LP-15517-10-00 GEAR, ILDER 2 (32/17T)GEAR, ILDER 2 (32/17T)
-
51VJ-15521-00-00 SHAFT 1SHAFT 1
-
693310-212R6-00 BEARINGBEARING
-
71VJ-15512-00-00 GEAR, IDLER 1GEAR, IDLER 1
-
85LP-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
991317-06014-00 BOLTBOLT
-
1093306-20006-00 BEARING (B6200) (NTN)BEARING (B6200) (NTN)
