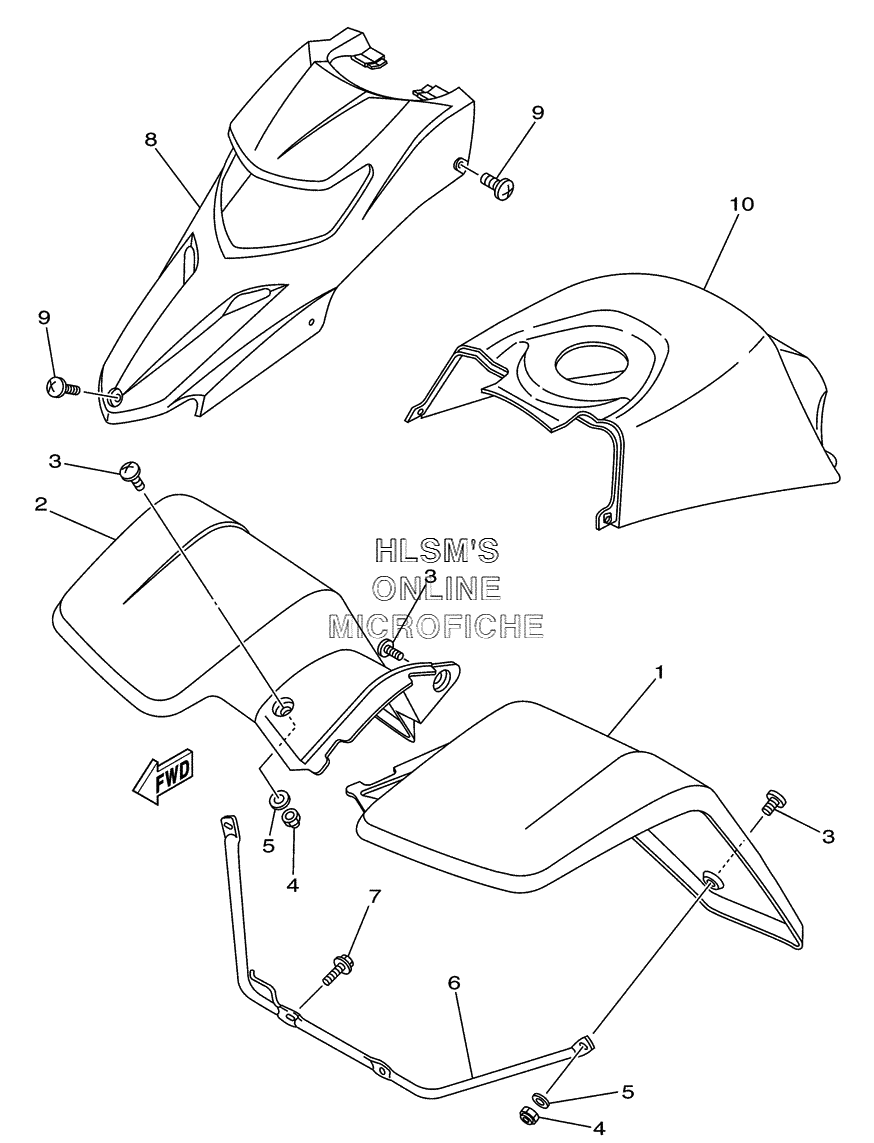

FENDER - FRONT для Yamaha BLASTER YFS200S - 2004 года выпуска
-
№АртикулНазвание
-
12XJ-W2151-C1-00 FRONT FENDER COMP. (FOR DPBSE)FRONT FENDER COMP. (FOR DPBSE)
-
12XJ-W2151-D1-00 FRONT FENDER COMP. (FOR BWS1)FRONT FENDER COMP. (FOR BWS1)
-
22XJ-21556-C0-00 FENDER, FRONT 2 (FOR DPBSE)FENDER, FRONT 2 (FOR DPBSE)
-
22XJ-21556-D0-00 FENDER, FRONT 2 (FOR BWS1)FENDER, FRONT 2 (FOR BWS1)
-
390149-06306-00 SCREWSCREW
-
495607-06100-00 NUT, UNUT, U
-
592907-06200-00 WASHERWASHER
-
62XJ-21513-01-00 STAY, FENDER 1STAY, FENDER 1
-
795827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
85VM-23391-00-00 PANEL, FRONT (FOR DPBSE)PANEL, FRONT (FOR DPBSE)
-
85VM-23391-20-00 PANEL, FRONT (FOR BWS1)PANEL, FRONT (FOR BWS1)
-
990154-05002-00 SCREW, BINDINGSCREW, BINDING
-
102XJ-2171A-C0-00 COVER, TOP (FOR DPBSE)COVER, TOP (FOR DPBSE)
-
102XJ-2171A-E0-00 COVER, TOP (FOR BWS1)COVER, TOP (FOR BWS1)
