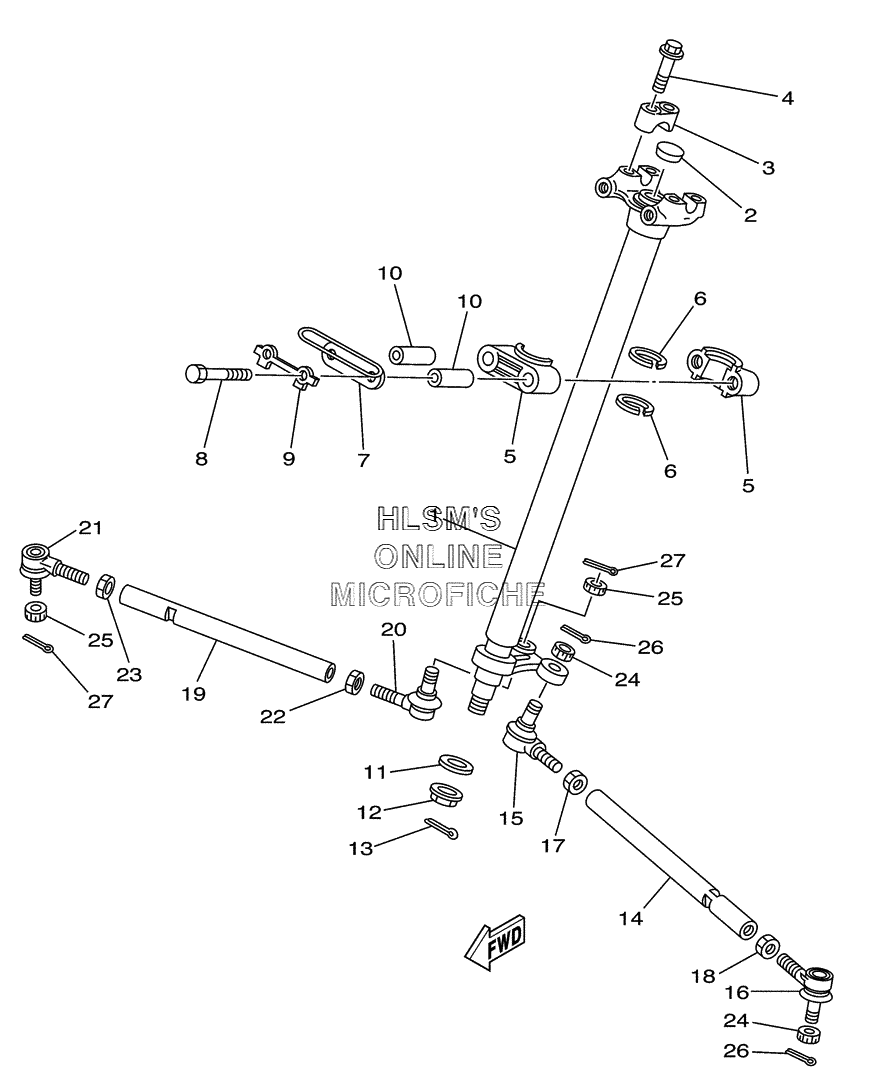

STEERING для Yamaha BLASTER YFS200S - 2004 года выпуска
-
№АртикулНазвание
-
15VM-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
290336-28053-00 PLUG, TAPERPLUG, TAPER
-
38K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
495827-08035-00 BOLT, FLANGEBOLT, FLANGE
-
51UY-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
693112-31011-00 OIL SEALOIL SEAL
-
75VM-23868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
897027-08060-00 BOLTBOLT
-
91UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1090387-090R0-00 COLLARCOLLAR
-
1190201-10774-00 WASHER, PLATEWASHER, PLATE
-
1290185-10115-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1391401-20020-00 PIN, COTTERPIN, COTTER
-
142XJ-23831-01-00 ROD, TIEROD, TIE
-
151UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
161UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
1795307-10700-00 NUTNUT
-
1890170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
192XJ-23831-01-00 ROD, TIEROD, TIE
-
201UY-23841-01-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
211UY-23845-01-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2295307-10700-00 NUTNUT
-
2390170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2490171-10046-00 NUT, CASTLENUT, CASTLE
-
2590171-10046-00 NUT, CASTLENUT, CASTLE
-
2691401-20020-00 PIN, COTTERPIN, COTTER
-
2791401-20020-00 PIN, COTTERPIN, COTTER
