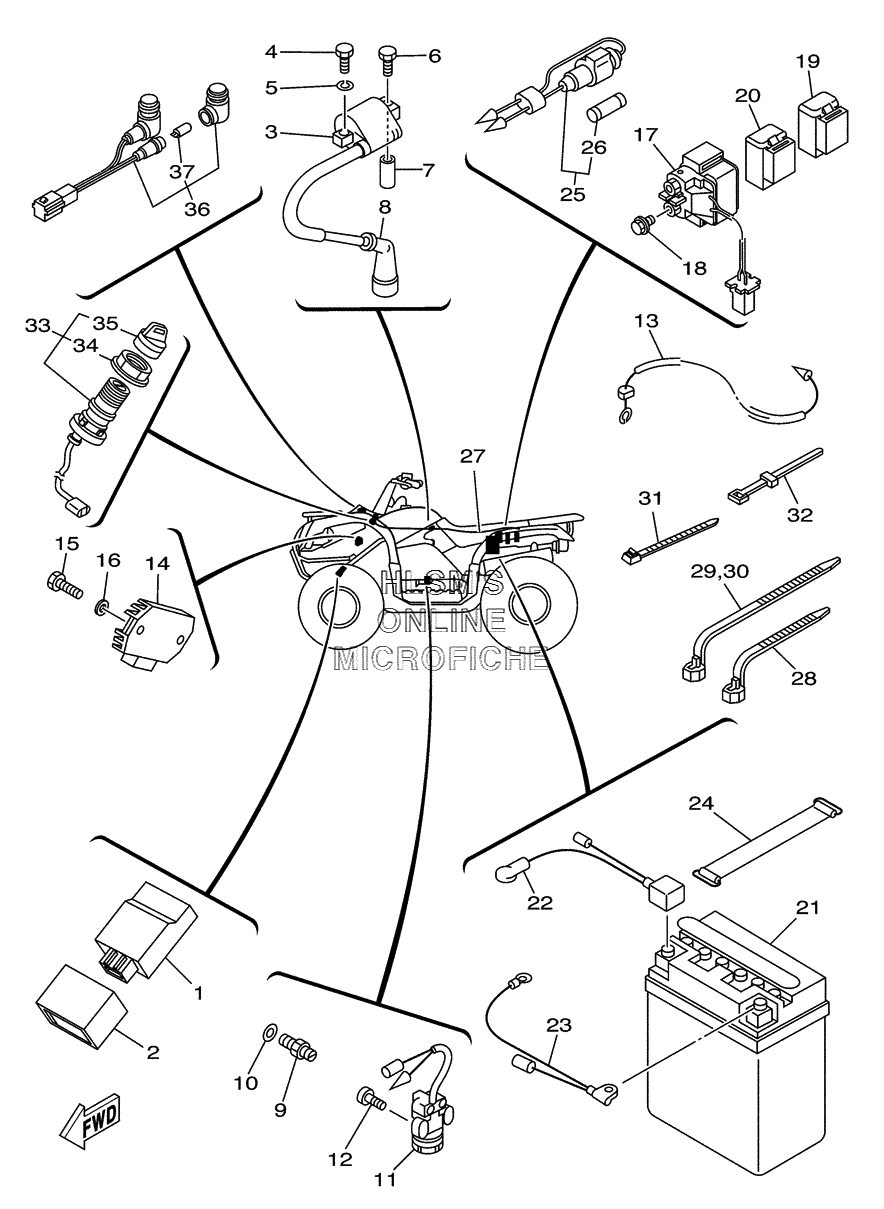

ELECTRICAL для Yamaha GRIZZLY YFM125S - 2004 года выпуска
-
№АртикулНазвание
-
13FA-85540-20-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
25HP-85546-00-00 BANDBAND
-
34KJ-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
497007-06020-00 BOLTBOLT
-
592907-06100-00 WASHER, SPRINGWASHER, SPRING
-
690109-06723-00 BOLTBOLT
-
790445-072A4-00 HOSE (L15)HOSE (L15)
-
81UY-82370-20-00 PLUG CAP ASSYPLUG CAP ASSY
-
94KM-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1090430-10148-00 GASKETGASKET
-
113FA-82627-00-00 SWITCHSWITCH
-
1290149-05283-00 SCREWSCREW
-
133FA-82541-00-00 WIRE, LEADWIRE, LEAD
-
145GT-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1597007-06020-00 BOLTBOLT
-
1692907-06600-00 WASHER, PLATEWASHER, PLATE
-
173MW-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1895027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1929U-81950-93-00 RELAY ASSYRELAY ASSY
-
202NL-81950-92-00 RELAY ASSYRELAY ASSY
-
213FA-82110-12-00 BATTERY ASSY (GS 12N12C-4A-2)BATTERY ASSY (GS 12N12C-4A-2)
-
223FA-82115-01-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
233FA-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
24133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
251UY-82150-00-00 FUSE HOLDER ASSYFUSE HOLDER ASSY
-
261UY-82151-00-00 ...FUSE (15A)...FUSE (15A)
-
271C5-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
2890464-13073-00 CLAMPCLAMP
-
2990464-15195-00 CLAMPCLAMP
-
3090464-15195-00 CLAMPCLAMP
-
3190465-10098-00 CLAMPCLAMP
-
32437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
335LP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
343HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
353HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
365TE-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
375GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
