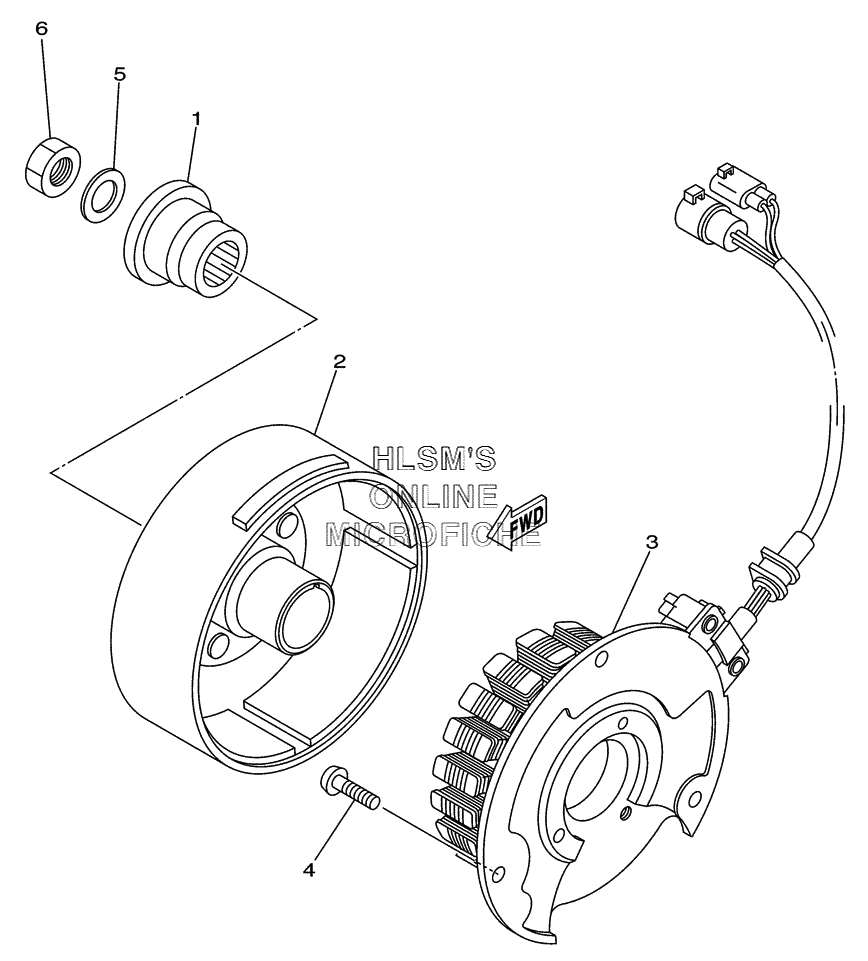

GENERATOR для Yamaha GRIZZLY YFM125S - 2004 года выпуска
-
№АртикулНазвание
-
13FA-15724-00-00 SPACERSPACER
-
21C5-81450-00-00 ROTOR ASSYROTOR ASSY
-
31C5-81410-00-00 STATOR ASSYSTATOR ASSY
-
492017-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
590201-122H1-00 WASHER, PLATEWASHER, PLATE
-
690170-12181-00 NUTNUT
