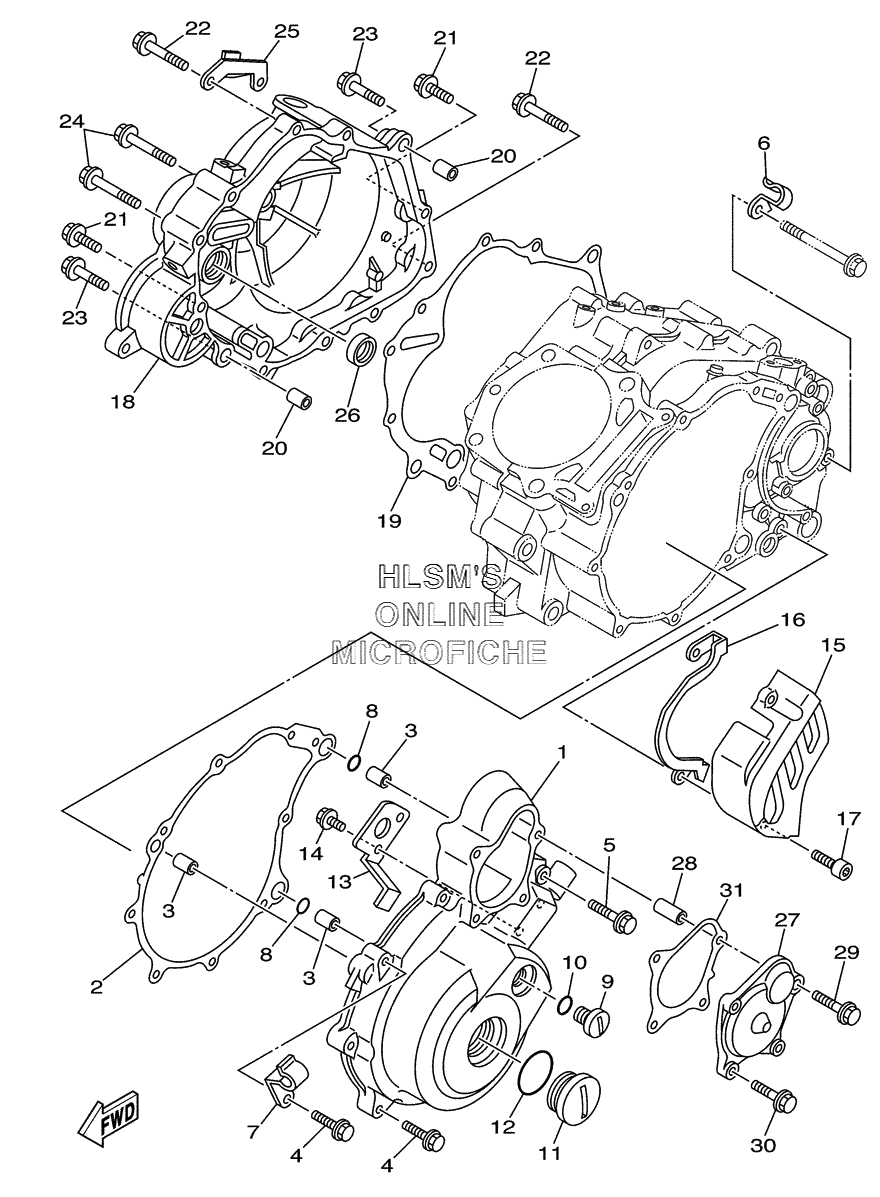

CRANKCASE COVER для Yamaha RAPTOR 660R YFM660RS - 2004 года выпуска
-
№АртикулНазвание
-
15LP-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
25LP-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-12016-00 PIN, DOWELPIN, DOWEL
-
495027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
590105-06032-00 BOLT, FLANGEBOLT, FLANGE
-
690465-08122-00 CLAMPCLAMP
-
75LP-13487-00-00 GUIDE, OIL HOSEGUIDE, OIL HOSE
-
893210-13361-00 O-RINGO-RING
-
990340-14128-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1093210-14369-00 O-RINGO-RING
-
1190340-36121-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1293210-357A3-00 O-RINGO-RING
-
135LP-15113-00-00 PLATEPLATE
-
1495027-06014-00 BOLT, FLANGEBOLT, FLANGE
-
155LP-15421-01-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
165LP-17466-00-00 GUIDE, CHAINGUIDE, CHAIN
-
1791317-06025-00 BOLTBOLT
-
185LP-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
195LP-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2099530-12016-00 PIN, DOWELPIN, DOWEL
-
2195027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2295027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2395027-06035-00 BOLT, FLANGEBOLT, FLANGE
-
2495027-06050-00 BOLT, FLANGEBOLT, FLANGE
-
255LP-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
2693101-14092-00 OIL SEAL (S7-14-25-5.5-1-HS)OIL SEAL (S7-14-25-5.5-1-HS)
-
275LP-15415-00-00 COVER, GENERATORCOVER, GENERATOR
-
2899530-08016-00 PIN, DOWELPIN, DOWEL
-
2995027-06035-00 BOLT, FLANGEBOLT, FLANGE
-
3095027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
315LP-15455-00-00 GASKET 1GASKET 1
