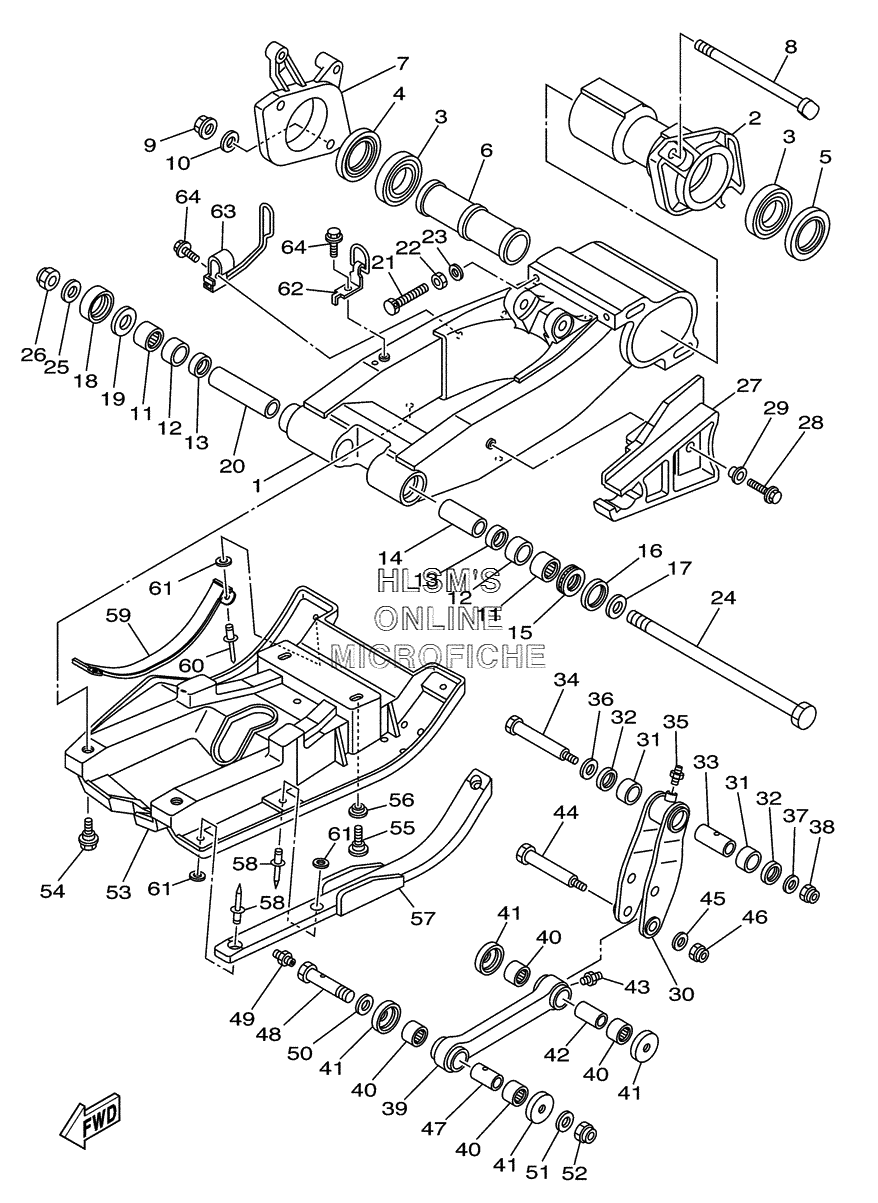

SUSPENSION - REAR ARM для Yamaha RAPTOR 660R YFM660RS - 2004 года выпуска
-
№АртикулНазвание
-
15LP-22110-10-00 REAR ARM COMP.REAR ARM COMP.
-
25LP-25311-10-00 HUB, REARHUB, REAR
-
393306-00705-00 BEARINGBEARING
-
493102-42260-00 OIL SEALOIL SEAL
-
593102-43341-00 OIL SEALOIL SEAL
-
690560-35263-00 SPACERSPACER
-
75LP-25721-10-00 BRACKET, CALIPERBRACKET, CALIPER
-
890109-12002-00 BOLTBOLT
-
990179-12588-00 NUTNUT
-
1090201-122H1-00 WASHER, PLATEWASHER, PLATE
-
1193317-22237-00 BEARINGBEARING
-
1290380-22111-00 BUSH, SOLIDBUSH, SOLID
-
1393106-22019-00 OIL SEAL (DC 22-28-8)OIL SEAL (DC 22-28-8)
-
145LP-22123-00-00 BUSH 1BUSH 1
-
1593342-22217-00 BEARINGBEARING
-
1693109-28043-00 OIL SEALOIL SEAL
-
1790387-16006-00 COLLARCOLLAR
-
184X7-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
193YF-22149-00-00 WASHERWASHER
-
205LP-22184-00-00 BUSHBUSH
-
2190103-08026-00 BOLT, HEAD WITH HOLEBOLT, HEAD WITH HOLE
-
2295307-08600-00 NUTNUT
-
2390201-083P5-00 WASHER, PLATEWASHER, PLATE
-
245LP-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
2590201-160F6-00 WASHER, PLATEWASHER, PLATE
-
2690185-16127-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
275LP-22151-10-00 SEAL, GUARDSEAL, GUARD
-
2895807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2990387-06500-00 COLLARCOLLAR
-
305LP-2217A-10-00 ARM, RELAYARM, RELAY
-
3190383-20033-00 BUSH, FORMEDBUSH, FORMED
-
3293109-20076-00 OIL SEALOIL SEAL
-
3390387-125N9-00 COLLARCOLLAR
-
3490109-10008-00 BOLTBOLT
-
3593700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3690201-122H1-00 WASHER, PLATEWASHER, PLATE
-
3790201-100U1-00 WASHER, PLATEWASHER, PLATE
-
3890185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
395LP-2217F-10-00 ROD, CONNECTING 1ROD, CONNECTING 1
-
4090383-20032-00 BUSH, FORMEDBUSH, FORMED
-
4123X-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
4290387-125K2-00 COLLARCOLLAR
-
4393700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
4490109-10654-00 BOLTBOLT
-
4590201-101J1-00 WASHER, PLATEWASHER, PLATE
-
4690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4790387-12010-00 COLLARCOLLAR
-
4890109-12003-00 BOLTBOLT
-
4993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5090201-12016-00 WASHER, PLATEWASHER, PLATE
-
5190201-124G9-00 WASHER, PLATEWASHER, PLATE
-
5290185-12134-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
535LP-2219X-00-00 COVERCOVER
-
5490109-063F1-00 BOLTBOLT
-
5597007-08020-00 BOLTBOLT
-
5690387-083J6-00 COLLARCOLLAR
-
575LP-22153-10-00 GUARD, CHAINGUARD, CHAIN
-
5890267-47187-00 RIVET, BLINDRIVET, BLIND
-
595LP-25345-00-00 INSERT, PLATEINSERT, PLATE
-
6090267-47200-00 RIVET, BLINDRIVET, BLIND
-
6190201-04325-00 WASHER, PLATEWASHER, PLATE
-
625EB-25887-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
635LP-25886-00-00 HOLDER, BRAKE HOSEHOLDER, BRAKE HOSE
-
6495027-06020-00 BOLT, FLANGEBOLT, FLANGE
