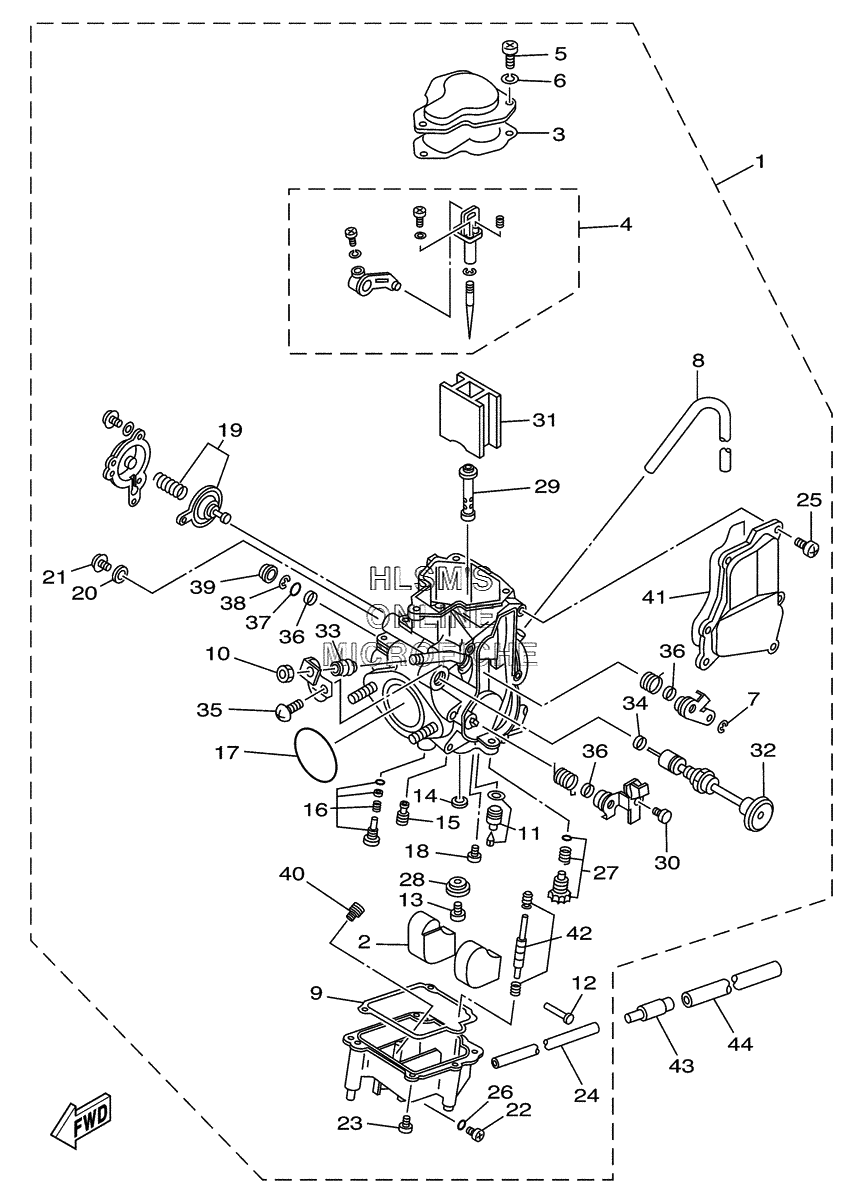

CARBURETOR для Yamaha WARRIOR YFM350XS - 2004 года выпуска
-
№АртикулНазвание
-
13GD-14101-00-00 CARBURETOR ASSY 1 (OPT) (EXCEPT CALI)CARBURETOR ASSY 1 (OPT) (EXCEPT CALI)
-
13GD-14101-10-00 CARBURETOR ASSY 1 (OPT) (CALIF ONLY)CARBURETOR ASSY 1 (OPT) (CALIF ONLY)
-
22VA-14185-00-00 ...FLOAT...FLOAT
-
31UY-14198-00-00 ...GASKET...GASKET
-
41UY-1490J-00-00 ...NEEDLE SET (OPT) (EXCEPT CALI)...NEEDLE SET (OPT) (EXCEPT CALI)
-
43GD-1490J-10-00 ...NEEDLE SET (OPT) (CALIF ONLY)...NEEDLE SET (OPT) (CALIF ONLY)
-
598511-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
692902-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
7737-14137-00-00 ...CLIP...CLIP
-
81UY-14197-00-00 ...PIPE...PIPE
-
91UY-14147-00-00 ...O-RING...O-RING
-
10802-14161-00-00 ...NUT, CABLE ADJUSTING...NUT, CABLE ADJUSTING
-
111UY-14107-25-00 ...NEEDLE VALVE SET...NEEDLE VALVE SET
-
12537-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
13620-14231-29-00 ...JET, MAIN (#145)...JET, MAIN (#145)
-
14137-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
154G0-14142-42-00 ...JET, PILOT (# 42.5)...JET, PILOT (# 42.5)
-
1621V-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
171YW-14147-00-00 ...O-RING...O-RING
-
181FN-14565-00-00 ...SCREW...SCREW
-
1926H-1490H-00-00 ...DIAPHRAGM SET 5...DIAPHRAGM SET 5
-
2059V-14962-00-00 ...WASHER...WASHER
-
2192502-06008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
222L1-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
2398502-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2421V-14196-00-00 ...PIPE...PIPE
-
251UY-14565-00-00 ...SCREW...SCREW
-
26214-14147-00-00 ...O-RING...O-RING
-
272VA-14103-00-00 ...THROTTLE SCREW SET...THROTTLE SCREW SET
-
285V7-14153-00-00 ...WASHER, MAIN JET...WASHER, MAIN JET
-
291UY-14141-36-00 ...NOZZLE, MAIN (OPT) (EXCEPT CALI)...NOZZLE, MAIN (OPT) (EXCEPT CALI)
-
293GD-14141-36-00 ...NOZZLE, MAIN (OPT) (CALIF ONLY)...NOZZLE, MAIN (OPT) (CALIF ONLY)
-
301UY-14155-00-00 ...GUIDE, CABLE...GUIDE, CABLE
-
311UY-14112-00-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
321UY-14993-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
3322F-14173-00-00 ...COVER, PLUNGER CAP...COVER, PLUNGER CAP
-
342A2-14997-00-00 ...SEAL...SEAL
-
3598502-04010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
362A2-14997-00-00 ...SEAL...SEAL
-
3722F-14126-00-00 ...GASKET...GASKET
-
38812-14137-00-00 ...CLIP...CLIP
-
3936X-14169-00-00 ...CAP...CAP
-
401HX-14231-63-00 ...JET, MAIN (#315)...JET, MAIN (#315)
-
412HR-14147-00-00 ...O-RING...O-RING
-
421UY-14504-00-00 ...ROD SET...ROD SET
-
4324W-14193-00-00 PIPEPIPE
-
4491A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
