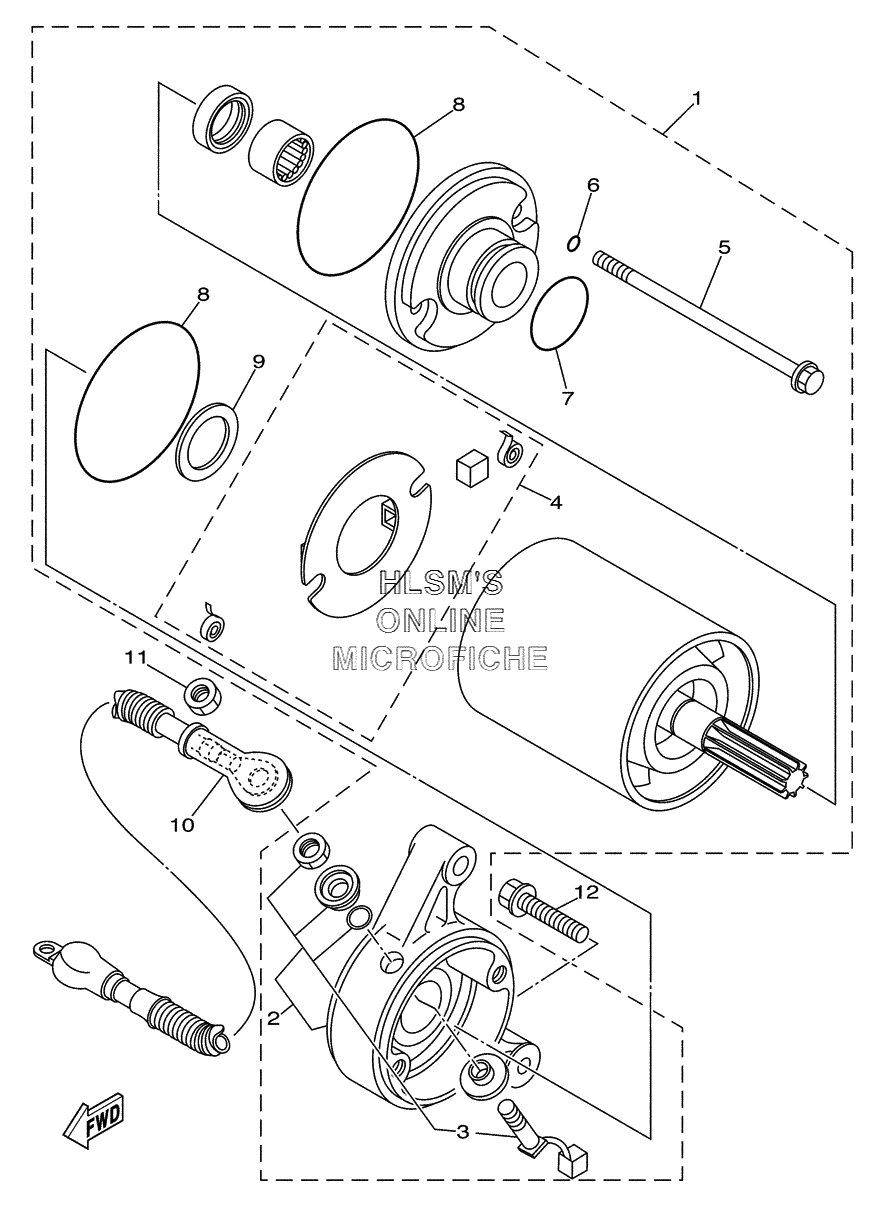

STARTING MOTOR для Yamaha WARRIOR YFM350XS - 2004 года выпуска
-
№АртикулНазвание
-
11UY-81890-00-00 MOTOR ASSYMOTOR ASSY
-
21UY-81820-51-00 ...REAR BRACKET ASSY...REAR BRACKET ASSY
-
31UY-81818-50-00 ...BRUSH AND BOLT...BRUSH AND BOLT
-
48L6-81840-50-00 ...BRUSH HOLDER ASSY...BRUSH HOLDER ASSY
-
53GD-81826-00-00 ...BOLT, THROUGH...BOLT, THROUGH
-
68L6-81847-50-00 ...O-RING...O-RING
-
71UY-81847-50-00 ...O-RING...O-RING
-
84H7-81844-50-00 ...O-RING...O-RING
-
94H7-81843-50-00 ...WASHER 1...WASHER 1
-
101UY-81815-50-00 CORD, STARTER MOTORCORD, STARTER MOTOR
-
1195302-06600-00 NUTNUT
-
1295027-06030-00 BOLT, FLANGEBOLT, FLANGE
