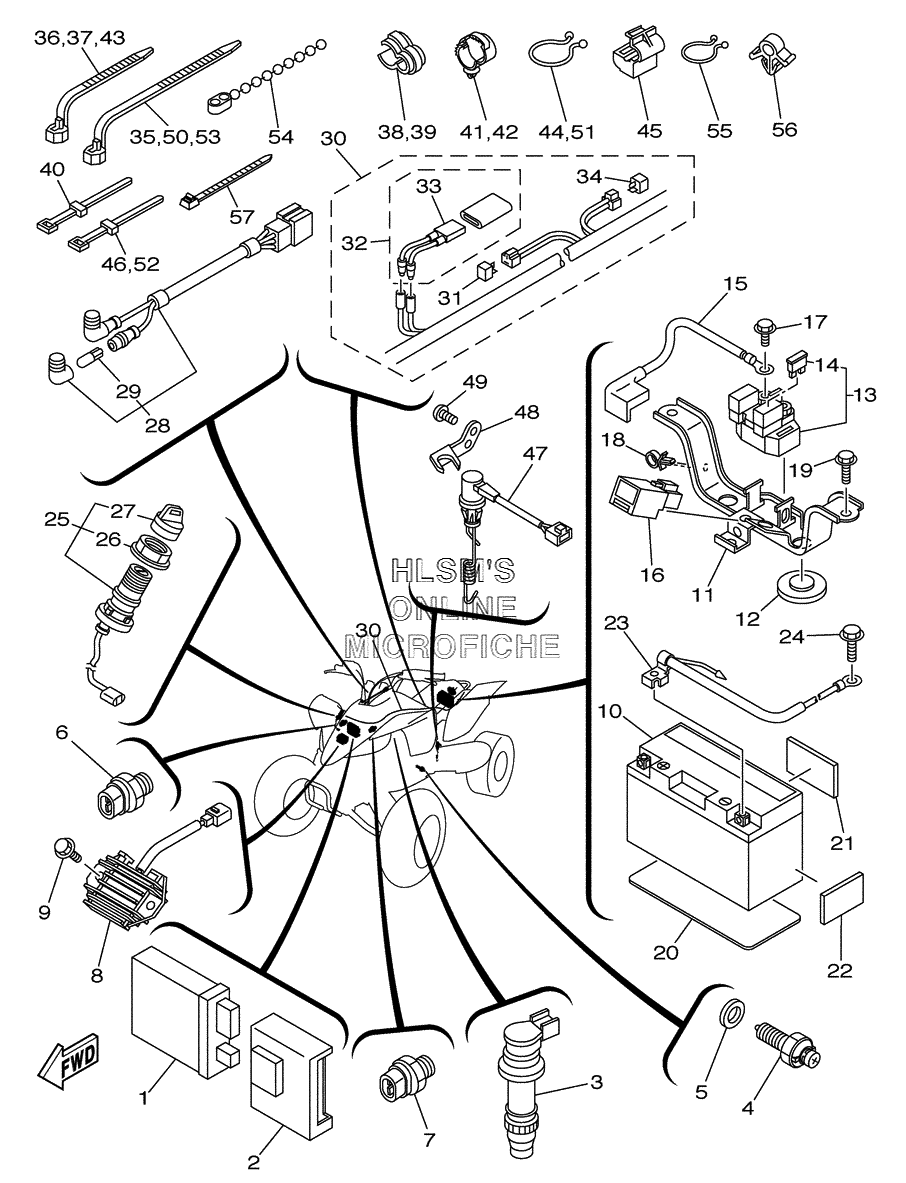

ELECTRICAL для Yamaha YFZ450 YFZ450S - 2004 года выпуска
-
№АртикулНазвание
-
15TG-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
25TG-85546-00-00 BANDBAND
-
35TA-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
43GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
590430-10148-00 GASKETGASKET
-
65GH-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
75LP-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
85TG-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
995027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
104UC-82100-01-00 BATTERY (GS GT7B-4)BATTERY (GS GT7B-4)
-
115TG-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
12371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
135JW-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1436Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
155TG-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
161RL-81950-92-00 RELAY ASSYRELAY ASSY
-
1795027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1890464-15157-00 CLAMPCLAMP
-
1990105-06044-00 BOLT, FLANGEBOLT, FLANGE
-
205TG-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
2129W-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
2222F-2139X-00-00 DAMPERDAMPER
-
235TG-82116-00-00 WIRE, LEADWIRE, LEAD
-
2495027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
255TG-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
263HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
273HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
285TG-83530-00-00 PILOT LIGHT ASSY (GREEN) (RED)PILOT LIGHT ASSY (GREEN) (RED)
-
295GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
305TG-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
313WP-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
325ND-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
335ND-82560-00-00 ...THERMO SWITCH ASSY...THERMO SWITCH ASSY
-
344WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
3590464-15195-00 CLAMPCLAMP
-
3690464-13073-00 CLAMPCLAMP
-
3790464-13073-00 CLAMPCLAMP
-
3890464-15065-00 CLAMPCLAMP
-
3990464-15065-00 CLAMPCLAMP
-
40437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4190464-20181-00 CLAMPCLAMP
-
4290464-20181-00 CLAMPCLAMP
-
4390464-13073-00 CLAMPCLAMP
-
4490464-30040-00 CLAMPCLAMP
-
4590464-05188-00 CLAMPCLAMP
-
463TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
475TG-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
485TG-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
4998907-06012-00 SCREW, BINDSCREW, BIND
-
5090464-15195-00 CLAMPCLAMP
-
5190464-30040-00 CLAMPCLAMP
-
523TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
5390464-15195-00 CLAMPCLAMP
-
5490464-20031-00 CLAMPCLAMP
-
5590464-23041-00 CLAMPCLAMP
-
5690464-48174-00 CLAMPCLAMP
-
5790465-13M11-00 CLAMPCLAMP
