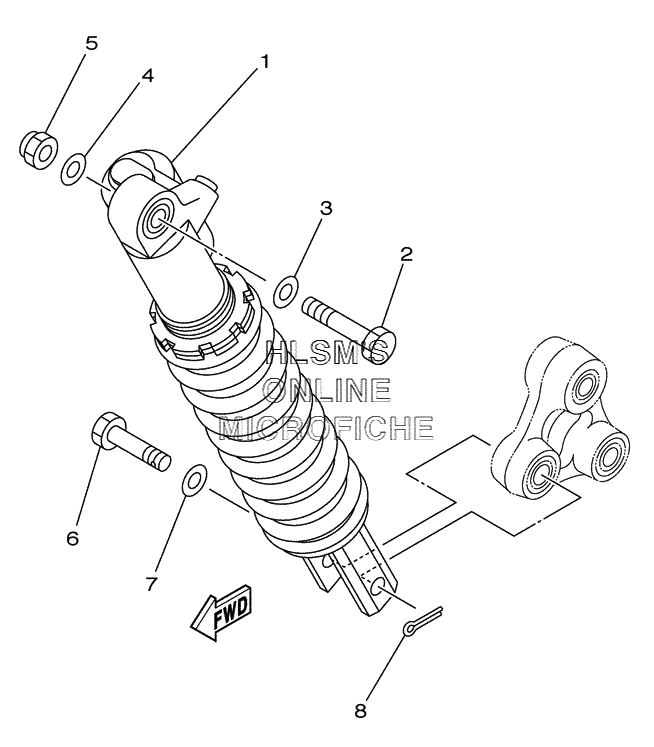

SUSPENSION - REAR SHOCK ABSORBER для Yamaha YFZ450 YFZ450S - 2004 года выпуска
-
№АртикулНазвание
-
15TG-22210-30-00 SHOCK ABSORBER ASSY, REAR (WW - WHITE) (FOR DPBSE)SHOCK ABSORBER ASSY, REAR (WW - WHITE) (FOR DPBSE)
-
15TG-22210-00-00 SHOCK ABSORBER ASSY, REAR (SL - SILVER) (FOR BWS1)SHOCK ABSORBER ASSY, REAR (SL - SILVER) (FOR BWS1)
-
290101-12012-00 BOLTBOLT
-
390201-12016-00 WASHER, PLATEWASHER, PLATE
-
490201-124G9-00 WASHER, PLATEWASHER, PLATE
-
590185-12134-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690102-12002-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
790201-12699-00 WASHER, PLATEWASHER, PLATE
-
891401-30025-00 PIN, SPLITPIN, SPLIT
