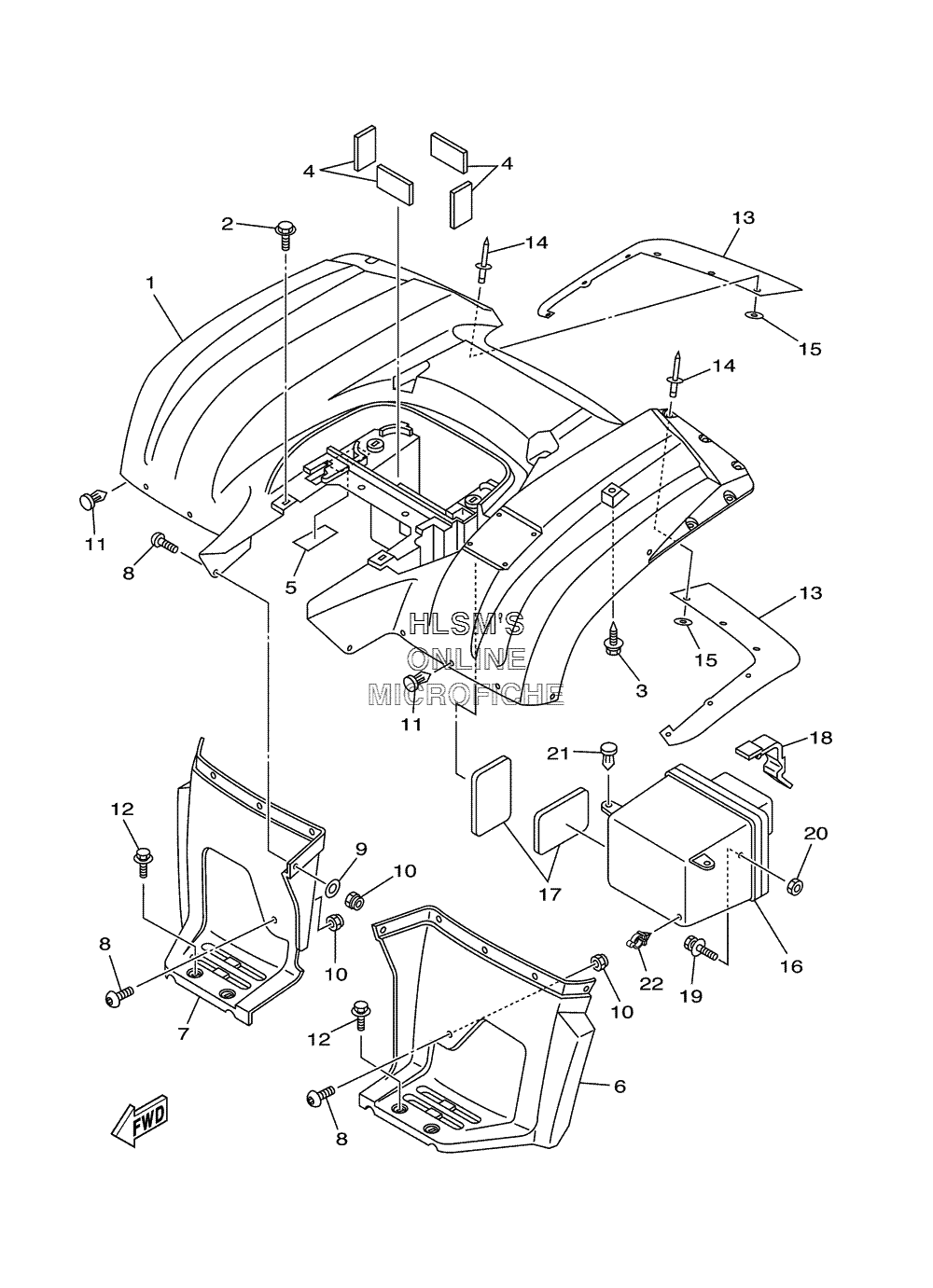

FENDER - REAR для Yamaha BIG BEAR 400 4x4 YFM40FT - 2005 года выпуска
-
№АртикулНазвание
-
15FU-F1600-00-00 REAR FENDER ASSY. FOR RTRREAR FENDER ASSY. FOR RTR
-
15FU-F1600-10-00 REAR FENDER ASSY. FOR PDGREAR FENDER ASSY. FOR PDG
-
15FU-F1600-40-00 REAR FENDER ASSY. FOR DPBSNREAR FENDER ASSY. FOR DPBSN
-
290119-06227-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
44XE-F4145-00-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
55FU-F174A-01-00 INSULATOR, SIDE COVERINSULATOR, SIDE COVER
-
65FU-F1621-00-00 FLAP (LEFT REAR)FLAP (LEFT REAR)
-
75FU-F1691-00-00 FLAP (RIGHT REAR)FLAP (RIGHT REAR)
-
890110-06836-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990201-068M4-00 WASHER, PLATEWASHER, PLATE
-
1095607-06100-00 NUT, UNUT, U
-
1190269-08813-00 RIVET,PLASTIC MAT MARIVET,PLASTIC MAT MA
-
1290119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
135FU-F162H-00-00 FLAP 3FLAP 3
-
1490269-06800-00 RIVETRIVET
-
1590201-068M4-00 WASHER, PLATEWASHER, PLATE
-
164XE-F160A-01-00 BOX COMP.BOX COMP.
-
175FU-21652-00-00 PROTECTORPROTECTOR
-
1859V-21646-00-00 BANDBAND
-
1990119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2095707-06600-00 NUT, W/WASHERNUT, W/WASHER
-
2190269-08813-00 RIVETRIVET
-
2290464-10833-00 CLAMPCLAMP
