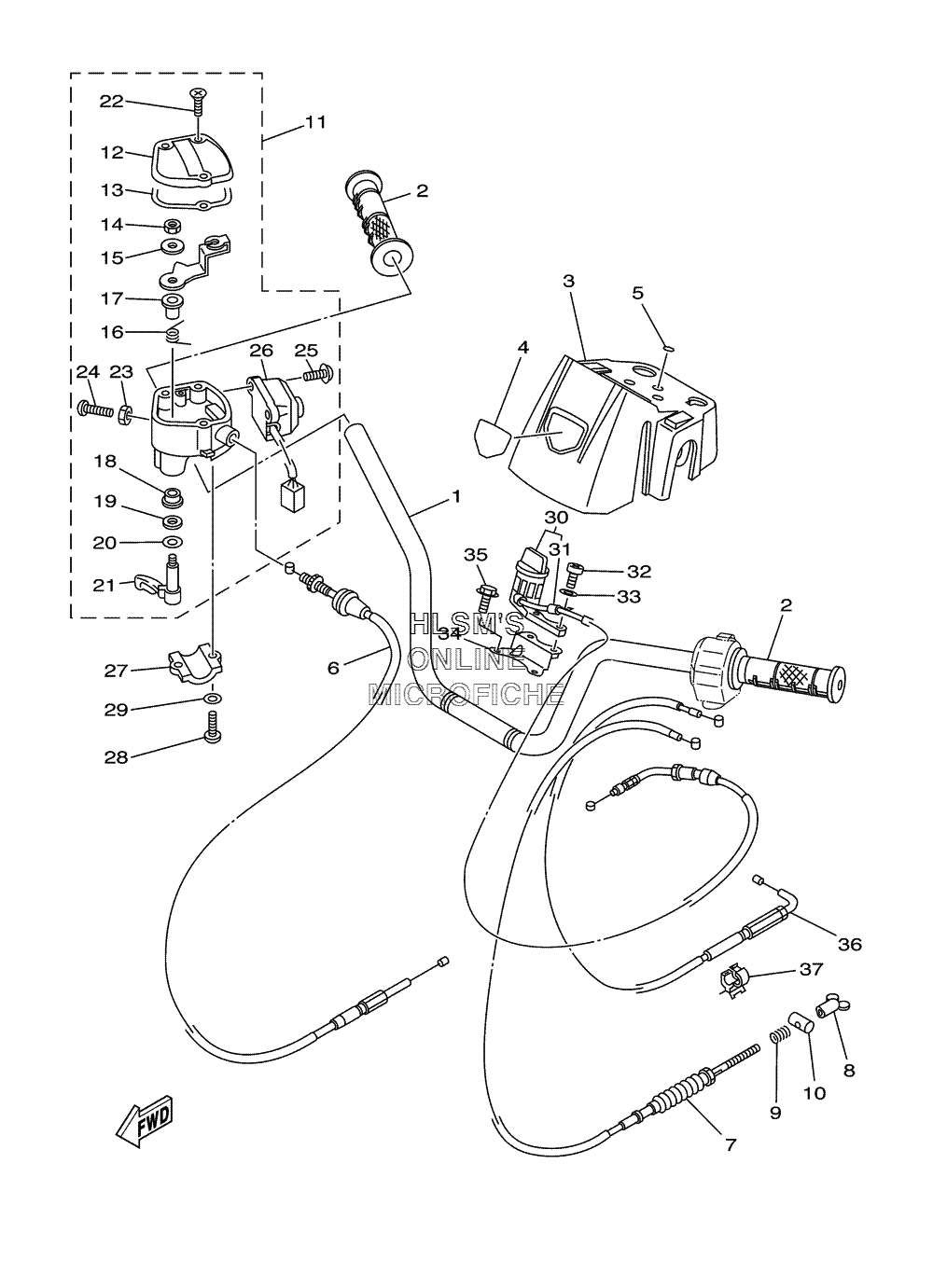

HANDLEBAR W/ CABLES для Yamaha BIG BEAR 400 4x4 YFM40FT - 2005 года выпуска
-
№АртикулНазвание
-
15FU-F6111-10-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
35FU-F6124-20-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
45FU-F6232-00-00 EMBLEM 3DEMBLEM 3D
-
55FU-F836B-00-00 TUNING FORK MARKTUNING FORK MARK
-
65FU-26311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
75FU-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
820E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
990501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090249-12008-00 PINPIN
-
114WV-26250-10-00 THROTTLE LEVER ASSY.THROTTLE LEVER ASSY.
-
124KB-2628F-10-00 ...CAP, GEAR...CAP, GEAR
-
134KB-2628G-00-00 ...GASKET...GASKET
-
1495607-05100-00 ...NUT, U...NUT, U
-
151NV-26398-00-00 ...WASHER...WASHER
-
161NV-26304-00-00 ...SPRING...SPRING
-
171NV-26259-01-00 ...COLLAR...COLLAR
-
181NV-2625K-00-00 ...COLLAR...COLLAR
-
1993104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
201NV-26129-00-00 ...WASHER...WASHER
-
211NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
2290149-04278-00 ...SCREW...SCREW
-
2395307-05700-00 ...NUT...NUT
-
2498507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
2597607-04210-00 ...SCREW,WITH WASHER...SCREW,WITH WASHER
-
264WV-83976-00-00 ...SWITCH, HANDLE 1...SWITCH, HANDLE 1
-
274V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2898507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2992907-05600-00 WASHER, PLATEWASHER, PLATE
-
304KB-26150-01-00 REV. LEVER ASSY..REV. LEVER ASSY..
-
314KB-2637E-02-00 ...CABLE, CONTROL 1...CABLE, CONTROL 1
-
3298507-05018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3392907-05600-00 WASHER, PLATEWASHER, PLATE
-
345FU-F612E-00-00 BRACKETBRACKET
-
359502P-06008-00 BOLT, FLANGEBOLT, FLANGE
-
365FU-26331-10-00 CABLE, STARTER 1CABLE, STARTER 1
-
3790464-10842-00 CLAMPCLAMP
