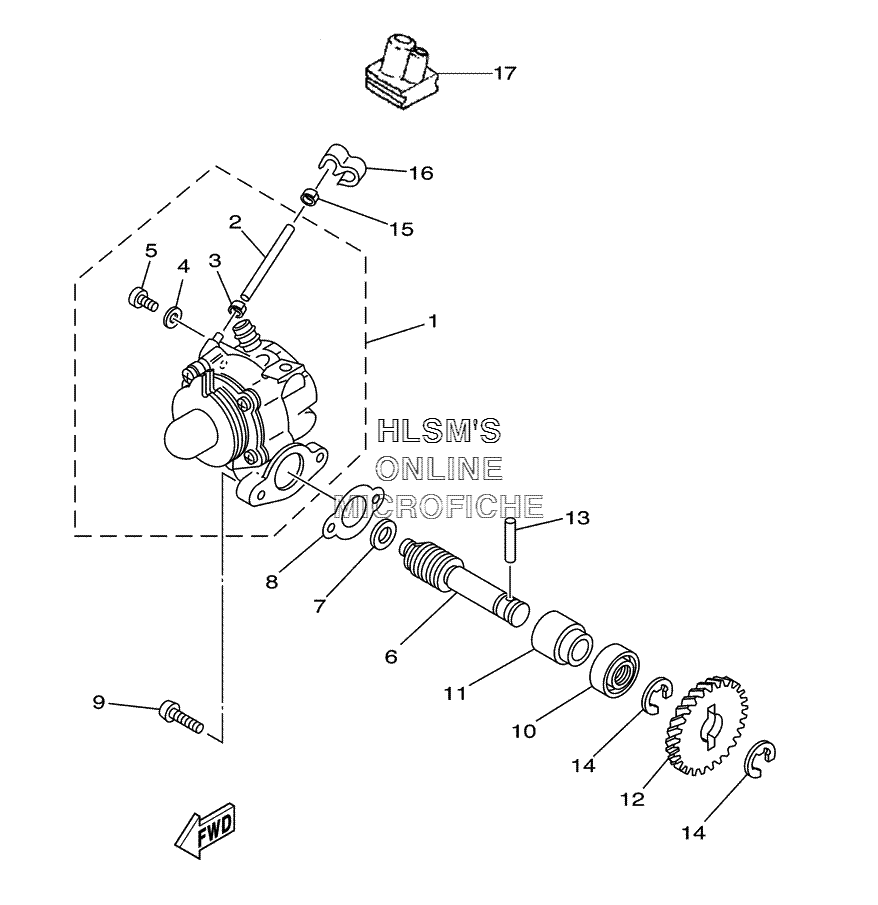

OIL PUMP для Yamaha BLASTER 200 YFS200T - 2005 года выпуска
-
№АртикулНазвание
-
12XJ-13100-00-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
290445-054F8-00 ...HOSE...HOSE
-
390468-02033-00 ...CLIP...CLIP
-
490430-04004-00 ...GASKET...GASKET
-
598907-04008-00 ...SCREW, BIND...SCREW, BIND
-
610V-13175-00-00 SHAFT, WORMSHAFT, WORM
-
790201-08624-00 WASHER, PLATEWASHER, PLATE
-
8126-13116-01-00 GASKET, PUMP CASEGASKET, PUMP CASE
-
998507-05014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1093101-10001-00 OIL SEAL, S-TYPEOIL SEAL, S-TYPE
-
11137-13176-00-00 METAL, WORM SHAFT OUTERMETAL, WORM SHAFT OUTER
-
1210V-13178-01-00 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
1393603-22028-00 PIN, DOWELPIN, DOWEL
-
1493430-08007-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
1590468-02033-00 CLIPCLIP
-
1690468-15020-00 CLIPCLIP
-
1710V-13174-00-00 HOLDER, OIL PIPEHOLDER, OIL PIPE
