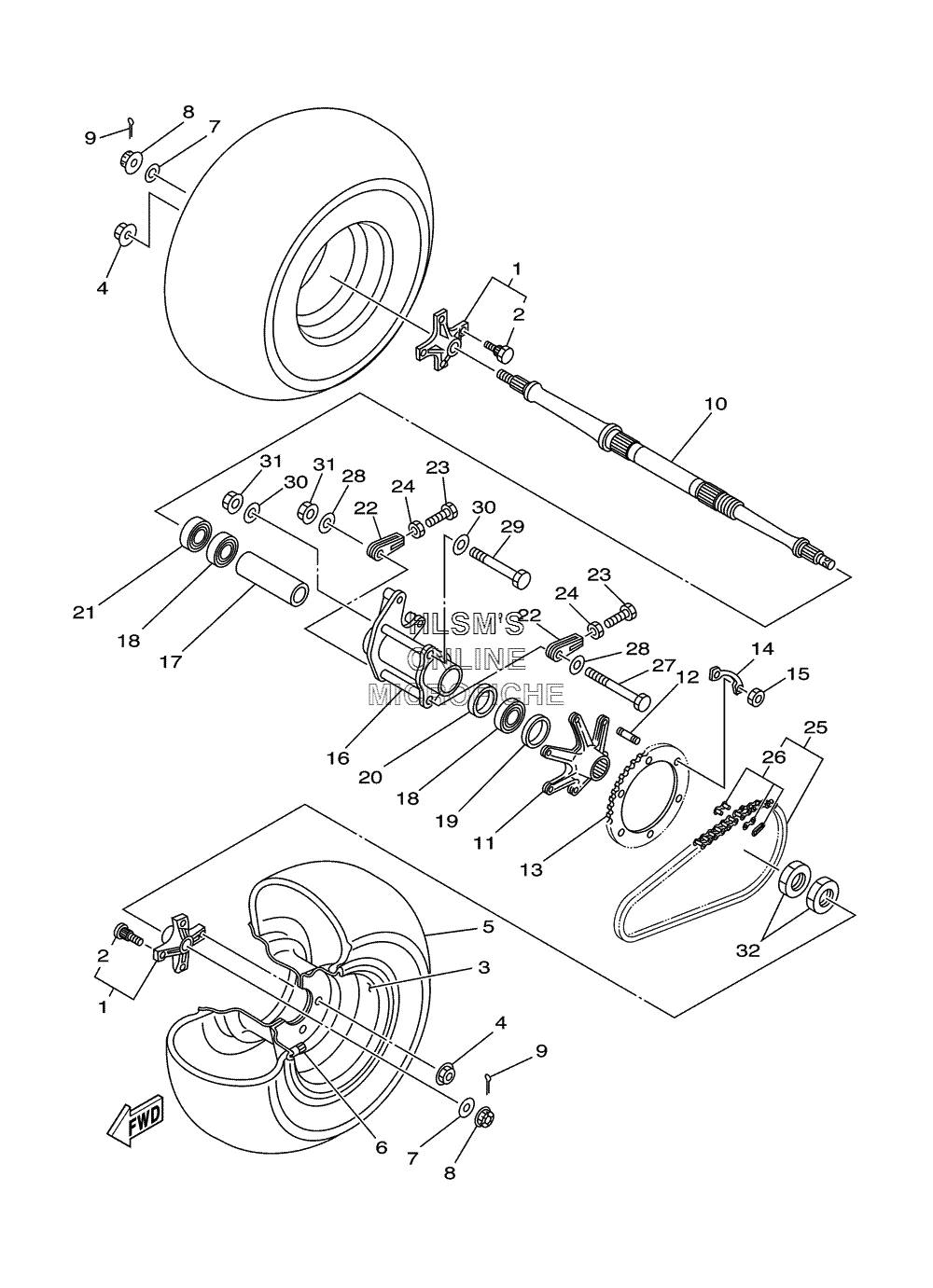

WHEEL - REAR W/ AXLE ASSY для Yamaha BLASTER 200 YFS200T - 2005 года выпуска
-
№АртикулНазвание
-
12XJ-25383-00-00 COLLAR, WHEEL (OPT)COLLAR, WHEEL (OPT)
-
290114-10010-00 ...BOLT, SERRATION...BOLT, SERRATION
-
32VY-25390-00-35 WHEEL,REAR (SL)WHEEL,REAR (SL)
-
495707-10500-00 NUT, FLANGENUT, FLANGE
-
594110-085W9-00 TIRE (AT21X10-8*KT895A T/L N) (DUNLOP)TIRE (AT21X10-8*KT895A T/L N) (DUNLOP)
-
594110-085W7-00 TIRE (AT21X10-8**C-874 T/L) (CHENG SHIN)TIRE (AT21X10-8**C-874 T/L) (CHENG SHIN)
-
693900-00022-00 VALVE, RIMVALVE, RIM
-
790201-14226-00 WASHER, PLATEWASHER, PLATE
-
890171-14037-00 NUT, CASTLENUT, CASTLE
-
991401-30030-00 PIN, COTTERPIN, COTTER
-
105VM-25381-00-00 AXLE, WHEELAXLE, WHEEL
-
112XJ-25386-00-00 COLLAR, SPROCKET AXLECOLLAR, SPROCKET AXLE
-
1290116-08507-00 BOLT, STUDBOLT, STUD
-
132XJ-25440-21-00 SPROCKET, DRIVEN (40T)SPROCKET, DRIVEN (40T)
-
142XJ-25412-00-00 WASHERWASHER
-
1590170-08258-00 NUTNUT
-
165VM-25311-10-00 HUB, REARHUB, REAR
-
172XJ-25317-00-00 SPACER, BEARINGSPACER, BEARING
-
1893306-00705-00 BEARINGBEARING
-
1993102-42260-00 OIL SEALOIL SEAL
-
2090387-561U7-00 COLLARCOLLAR
-
2193102-43341-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
222XJ-25388-00-00 PULLER, CHAIN 1PULLER, CHAIN 1
-
2390101-08777-00 BOLTBOLT
-
2495307-08600-00 NUTNUT
-
2594581-87092-00 CHAIN (DID520V)CHAIN (DID520V)
-
2694681-87011-00 ...JOINT, CHAIN (DID520V FJ)...JOINT, CHAIN (DID520V FJ)
-
2790101-10678-00 BOLTBOLT
-
2890201-106F2-00 WASHER, PLATEWASHER, PLATE
-
2990101-10678-00 BOLTBOLT
-
3090201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3195707-10500-00 NUT, FLANGENUT, FLANGE
-
3290170-33376-00 NUTNUT
