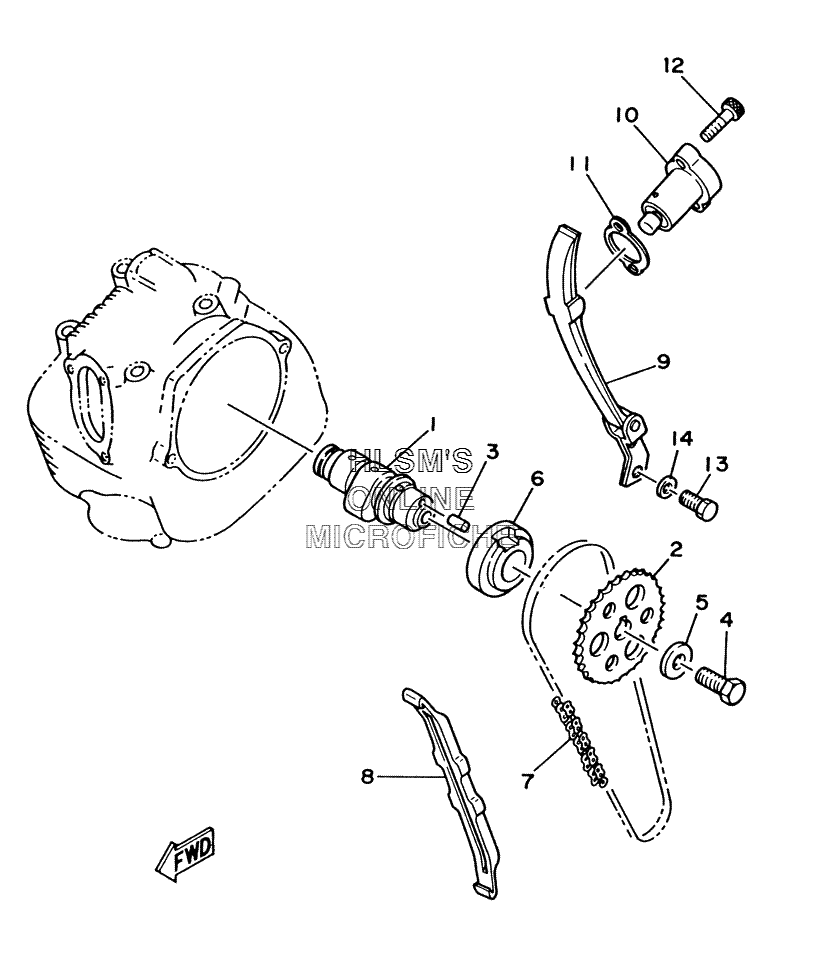

CAMSHAFT W/ CHAIN для Yamaha BRUIN 250 YFM250BT - 2005 года выпуска
-
№АртикулНазвание
-
15XG-E2171-00-00 CAMSHAFT 1CAMSHAFT 1
-
25XG-E2176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
393604-10837-00 PIN, DOWELPIN, DOWEL
-
490101-10303-00 BOLTBOLT
-
590201-108C6-00 WASHER, PLATEWASHER, PLATE
-
690389-25800-00 BUSHBUSH
-
794580-41104-00 CHAIN (DID25SH 104L)CHAIN (DID25SH 104L)
-
83UR-E2231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
95XG-E2241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
103GC-12210-10-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
114FM-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1295027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1397027-06016-00 BOLTBOLT
-
1492907-06600-00 WASHER, PLATEWASHER, PLATE
