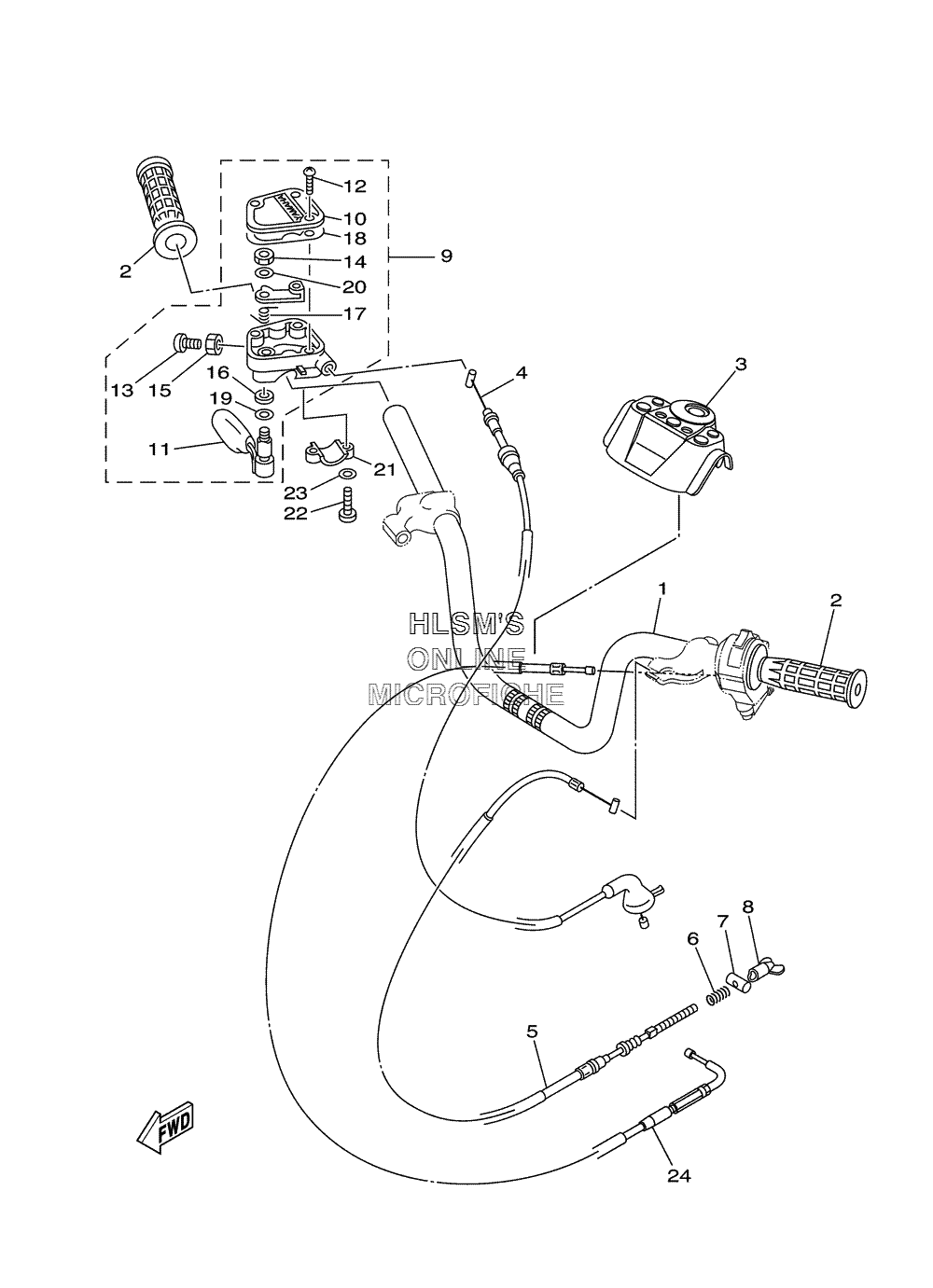

HANDLEBAR W/ CABLES для Yamaha BRUIN 250 YFM250BT - 2005 года выпуска
-
№АртикулНазвание
-
15FU-F6111-10-00 HANDLEBARHANDLEBAR
-
25FU-F6241-10-00 GRIPGRIP
-
31P0-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
41P0-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
51P0-26341-00-00 CABLE, BRAKECABLE, BRAKE
-
690501-10782-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
790249-12008-00 PINPIN
-
820E-26343-00-00 NUT, ADJUSTINGNUT, ADJUSTING
-
94KB-26250-10-00 THROTTLE LEVER ASSY.THROTTLE LEVER ASSY.
-
104KB-2628F-10-00 ...CAP, GEAR...CAP, GEAR
-
111NV-2625G-01-00 ...LEVER, THROTTLE...LEVER, THROTTLE
-
1290149-04278-00 ...SCREW...SCREW
-
1398507-05020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1495607-05100-00 ...NUT, U...NUT, U
-
1595307-05700-00 ...NUT...NUT
-
1693104-09025-00 ...OIL SEAL, SO-TYPE...OIL SEAL, SO-TYPE
-
171NV-26304-00-00 ...SPRING...SPRING
-
184KB-2628G-00-00 ...GASKET...GASKET
-
191NV-26129-00-00 ...WASHER...WASHER
-
201NV-26398-00-00 ...WASHER...WASHER
-
214V4-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
2298507-05020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392907-05600-00 WASHER, PLATEWASHER, PLATE
-
241P0-F6331-00-00 CABLE, STARTER 1CABLE, STARTER 1
