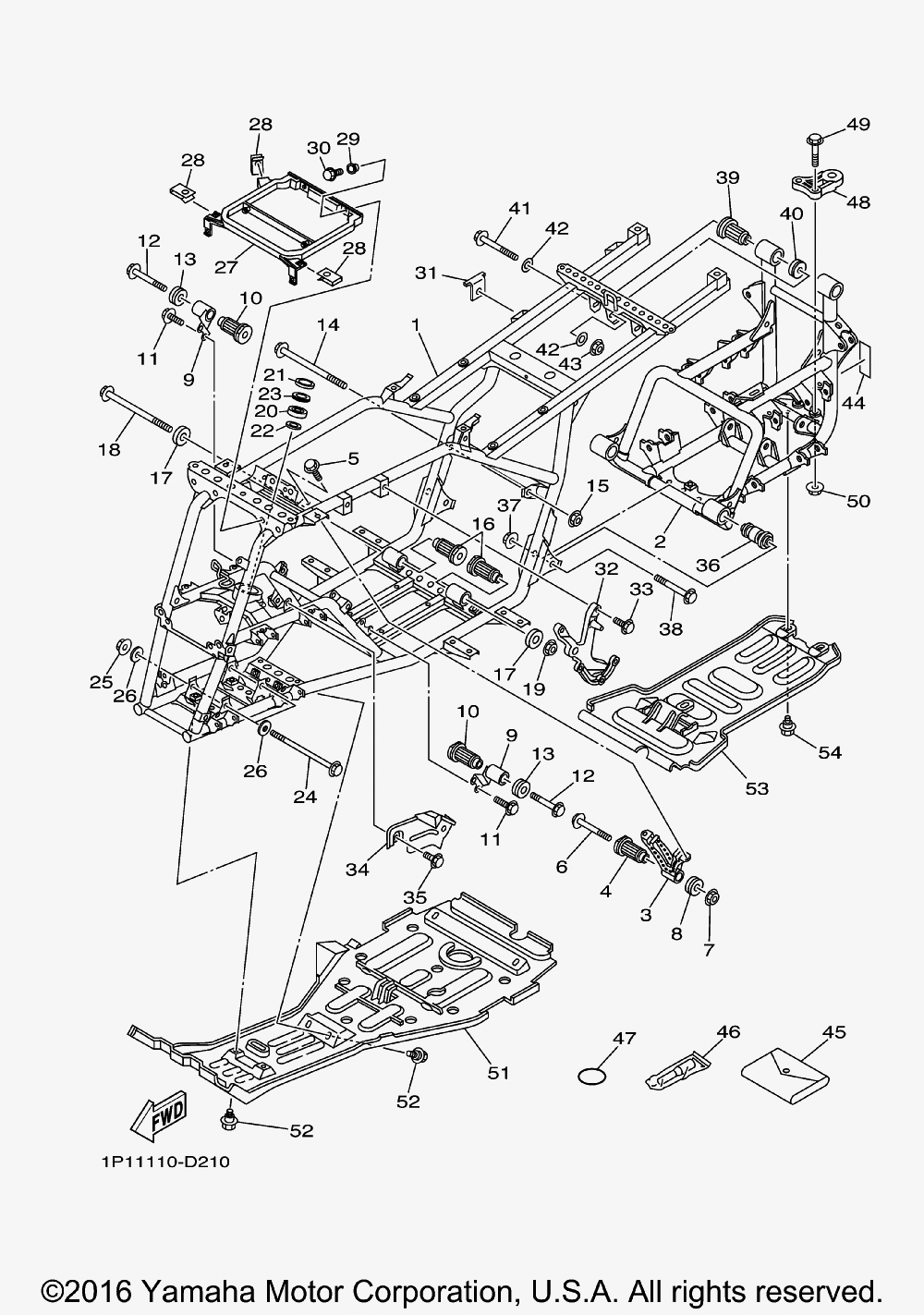

FRAME для Yamaha KODIAK 400 4WD HUNTER - 2005 года выпуска
-
№АртикулНазвание
-
11P1-F1110-00-00 FRAME COMP. (YMUS)FRAME COMP. (YMUS)
-
21D9-F111B-00-00 FRAME SUB COMP. (YMUS)FRAME SUB COMP. (YMUS)
-
35ND-F1315-00-00 STAY, ENGINE 2 (YMUS)STAY, ENGINE 2 (YMUS)
-
45ND-E5336-00-00 DAMPER, ENGINE MOUNT 3 (YMUS)DAMPER, ENGINE MOUNT 3 (YMUS)
-
59581P-08012-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
695817-10110-00 BOLT, FLANGEBOLT, FLANGE
-
795607-10200-00 NUT, U FLANGENUT, U FLANGE
-
85ND-F1486-00-00 DAMPER 2 (YMUS)DAMPER 2 (YMUS)
-
95ND-F1316-00-00 STAY, ENGINE 3 (YMUS)STAY, ENGINE 3 (YMUS)
-
105ND-E5336-00-00 DAMPER, ENGINE MOUNT 3 (YMUS)DAMPER, ENGINE MOUNT 3 (YMUS)
-
119581P-08012-00 BOLT, FLANGE (YMUS)BOLT, FLANGE (YMUS)
-
1295817-10080-00 BOLT, FLANGEBOLT, FLANGE
-
135ND-F1486-00-00 DAMPER 2 (YMUS)DAMPER 2 (YMUS)
-
1490105-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1595607-10200-00 NUT, U FLANGENUT, U FLANGE
-
165ND-E5336-00-00 DAMPER, ENGINE MOUNT 3 (YMUS)DAMPER, ENGINE MOUNT 3 (YMUS)
-
175ND-F1488-00-00 DAMPER (YMUS)DAMPER (YMUS)
-
1890105-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1995607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2093306-203YN-00 BEARING (YMUS)BEARING (YMUS)
-
2193102-25081-00 OIL SEALOIL SEAL
-
2293102-25099-00 OIL SEALOIL SEAL
-
232GU-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
2490105-10051-00 BOLT, FLANGEBOLT, FLANGE
-
2595607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2690201-101J1-00 WASHER, PLATEWASHER, PLATE
-
275ND-F1513-00-00 STAY, FENDER 1 (YMUS)STAY, FENDER 1 (YMUS)
-
2890183-06053-00 NUT, SPRINGNUT, SPRING
-
2990387-06681-00 COLLARCOLLAR
-
3095817-06012-00 BOLT, FLANGEBOLT, FLANGE
-
315ND-F1446-00-00 STAY, MUFFLER 2 (YMUS)STAY, MUFFLER 2 (YMUS)
-
325ND-F1585-01-00 ARM (YMUS)ARM (YMUS)
-
3395827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
345ND-F2825-00-00 PROTECTOR 1 (YMUS)PROTECTOR 1 (YMUS)
-
3595817-06010-00 BOLT, FLANGEBOLT, FLANGE
-
365ND-F2123-00-00 BUSH 1 (YMUS)BUSH 1 (YMUS)
-
3795607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3890105-12660-00 BOLT, FLANGEBOLT, FLANGE
-
391D9-E5336-00-00 DAMPER, ENGINE MOUNT 3 (YMUS)DAMPER, ENGINE MOUNT 3 (YMUS)
-
405ND-F1486-00-00 DAMPER 2 (YMUS)DAMPER 2 (YMUS)
-
4190105-10711-00 BOLT, FLANGEBOLT, FLANGE
-
4290201-101J1-00 WASHER, PLATEWASHER, PLATE
-
4395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
445ND-F151K-00-00 LABEL 7 (ENGLISH) (YMUS)LABEL 7 (ENGLISH) (YMUS)
-
455ND-F8100-00-00 TOOL KIT (YMUS)TOOL KIT (YMUS)
-
461NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
-
4793210-64297-00 O-RINGO-RING
-
481D9-F8488-00-00 HOOK (YMUS)HOOK (YMUS)
-
4990105-10669-00 BOLT, FLANGEBOLT, FLANGE
-
5095607-10200-00 NUT, U FLANGENUT, U FLANGE
-
515ND-F147A-01-00 GUARD, ENGINE 1 (YMUS)GUARD, ENGINE 1 (YMUS)
-
5290109-063F1-00 BOLTBOLT
-
531D9-F840K-00-00 GUARD COMP. (YMUS)GUARD COMP. (YMUS)
-
5490109-063F1-00 BOLTBOLT
