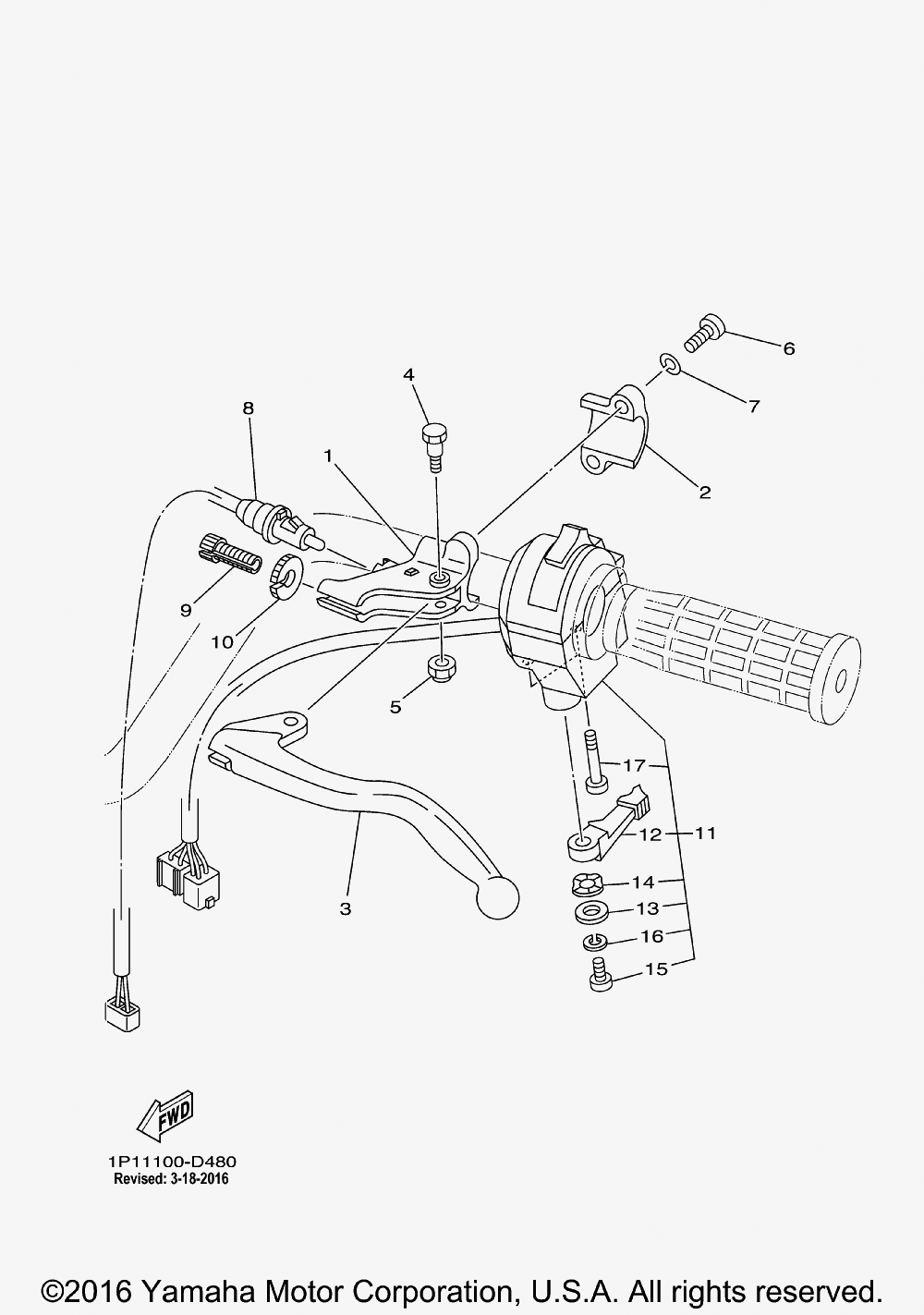

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha KODIAK 400 4WD HUNTER - 2005 года выпуска
-
№АртикулНазвание
-
11YW-82911-02-00 HOLDER, LEVER 1HOLDER, LEVER 1
-
22XJ-82913-00-00 HOLDER, LEVER LOWER 1HOLDER, LEVER LOWER 1
-
32HT-83912-00-00 LEVER 1LEVER 1
-
490109-06799-00 BOLTBOLT
-
595607-06100-00 NUT, UNUT, U
-
698507-06020-00 SCREW, PAN HEADSCREW, PAN HEAD
-
792907-06100-00 WASHER, SPRINGWASHER, SPRING
-
85KM-82917-00-00 SWITCHSWITCH
-
990123-08046-00 BOLTBOLT
-
1090179-08148-00 NUTNUT
-
115LP-83973-01-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
125GH-83941-00-00 ...LEVER, STARTER...LEVER, STARTER
-
131UY-83909-00-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
143L4-83943-00-00 ...WASHER, STARTER...WASHER, STARTER
-
1598517-05012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1692907-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
1798507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
