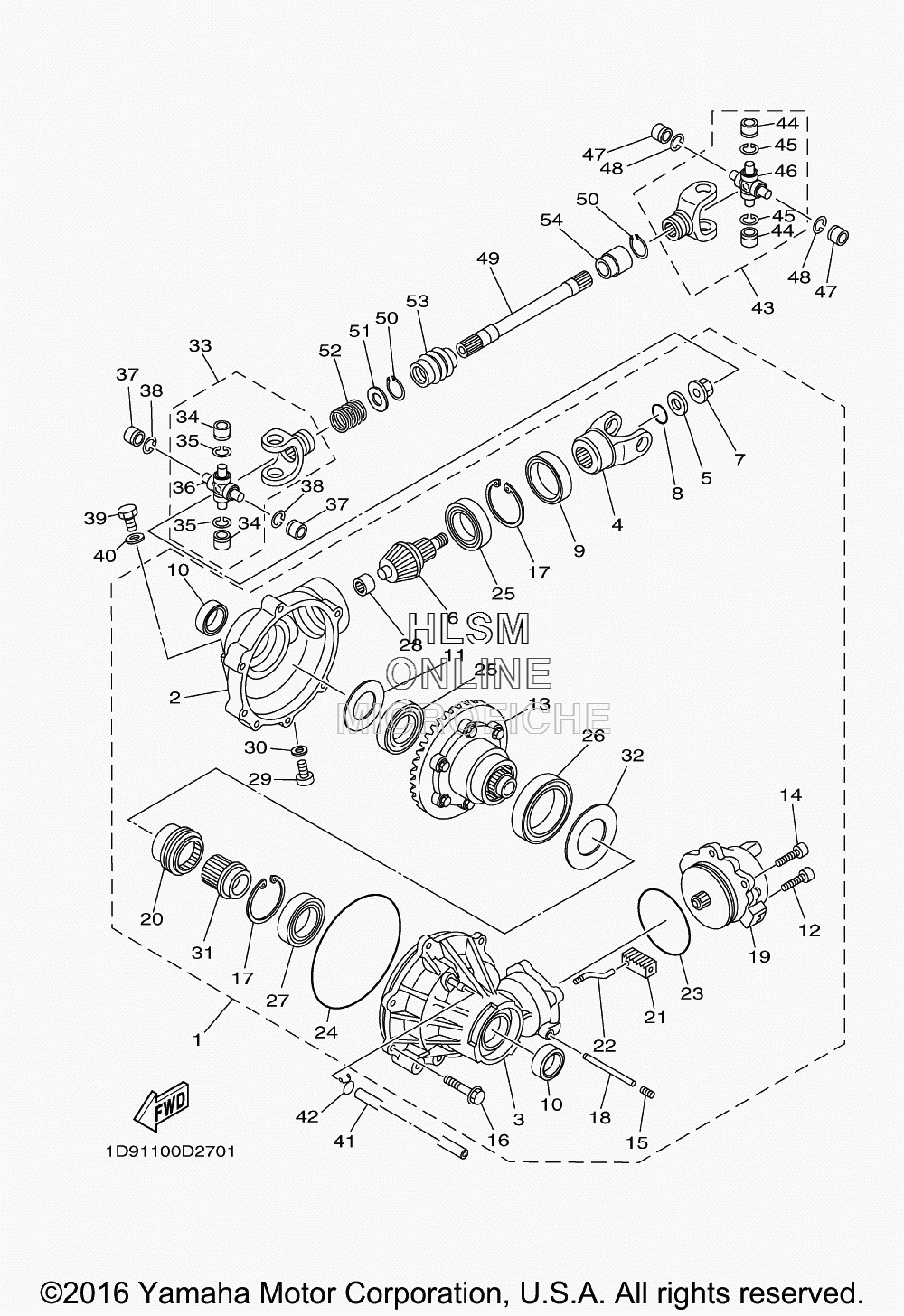

DIFFERENTIAL - FRONT для Yamaha KODIAK 450 4WD BLACK/CARBON - 2005 года выпуска
-
№АртикулНазвание
-
15KM-46160-04-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
25KM-46161-00-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
35KM-46162-00-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
45KM-46146-10-00 ...YOKE, JOINT 2...YOKE, JOINT 2
-
590201-14633-00 ...WASHER, PLATE...WASHER, PLATE
-
65KM-46141-11-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
74WV-46145-00-00 ...NUT 1...NUT 1
-
893210-14359-00 ...O-RING...O-RING
-
993102-48012-00 ...OIL SEAL...OIL SEAL
-
1093102-24034-00 ...OIL SEAL...OIL SEAL
-
114WV-46119-11-00 ...SHIM, THRUST (0.2T) (OPT)...SHIM, THRUST (0.2T) (OPT)
-
114WV-46119-21-00 ...SHIM, THRUST (0.3T) (OPT)...SHIM, THRUST (0.3T) (OPT)
-
114WV-46119-31-00 ...SHIM, THRUST (0.4T) (OPT)...SHIM, THRUST (0.4T) (OPT)
-
114WV-46119-41-00 ...SHIM, THRUST (0.5T) (OPT)...SHIM, THRUST (0.5T) (OPT)
-
114WV-46119-01-00 ...SHIM, THRUST (0.1T) (OPT)...SHIM, THRUST (0.1T) (OPT)
-
114WV-46119-51-00 ...SHIM, THRUST (1.0T) (OPT)...SHIM, THRUST (1.0T) (OPT)
-
125KM-46155-00-00 ...BOLT 1...BOLT 1
-
135KM-46470-12-00 ...LIMITED SLIP DIFF. ASSY...LIMITED SLIP DIFF. ASSY
-
1491317-08020-00 ...BOLT...BOLT
-
1590113-08004-00 ...BOLT, SET...BOLT, SET
-
164WV-46159-00-00 ...BOLT 3...BOLT 3
-
174WV-46143-00-00 ......RING,HOLE SNAP 2......RING,HOLE SNAP 2
-
185KM-42752-00-00 ...SHAFT...SHAFT
-
195KM-4616A-02-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
205KM-46441-00-00 ......CLUTCH, DRIVEN......CLUTCH, DRIVEN
-
215KM-18319-00-00 ...SHAFT 2...SHAFT 2
-
225KM-18514-00-00 ...FORK, SHIFT 4...FORK, SHIFT 4
-
2393210-82001-00 ...O-RING...O-RING
-
2493211-40040-00 ...O-RING...O-RING
-
2593306-00709-00 ...BEARING...BEARING
-
2693306-91201-00 ...BEARING...BEARING
-
2793316-00702-00 ...BEARING...BEARING
-
284WV-46167-00-00 ...BEARING 4...BEARING 4
-
2990340-10001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
3090430-10003-00 ...GASKET...GASKET
-
315KM-46451-00-00 ...ADAPTER...ADAPTER
-
325KM-46119-01-00 ...SHIM, THRUST (0.1T) (OPT)...SHIM, THRUST (0.1T) (OPT)
-
325KM-46119-61-00 ...SHIM, THRUST (1.5T) (OPT)...SHIM, THRUST (1.5T) (OPT)
-
325KM-46119-51-00 ...SHIM, THRUST (1.0T) (OPT)...SHIM, THRUST (1.0T) (OPT)
-
325KM-46119-41-00 ...SHIM, THRUST (0.5T) (OPT)...SHIM, THRUST (0.5T) (OPT)
-
325KM-46119-31-00 ...SHIM, THRUST (0.4T) (OPT)...SHIM, THRUST (0.4T) (OPT)
-
325KM-46119-21-00 ...SHIM, THRUST (0.3T) (OPT)...SHIM, THRUST (0.3T) (OPT)
-
325KM-46119-11-00 ...SHIM, THRUST (0.2T) (OPT)...SHIM, THRUST (0.2T) (OPT)
-
335KM-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
3493399-99948-00 ...BEARING...BEARING
-
3593440-20088-00 ...CIRCLIP...CIRCLIP
-
365GT-46187-00-00 ...SPIDER...SPIDER
-
3793399-99948-00 BEARINGBEARING
-
3893440-20088-00 CIRCLIPCIRCLIP
-
3990340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
40214-11198-01-00 GASKETGASKET
-
4190445-07809-00 HOSE (L750) (YMUS)HOSE (L750) (YMUS)
-
4290467-07029-00 CLIPCLIP
-
435KM-46107-00-00 CROSS JOINT COMP. 2CROSS JOINT COMP. 2
-
4493399-99948-00 ...BEARING...BEARING
-
4593440-20088-00 ...CIRCLIP...CIRCLIP
-
465GT-46187-00-00 ...SPIDER...SPIDER
-
4793399-99948-00 BEARINGBEARING
-
4893440-20088-00 CIRCLIPCIRCLIP
-
495ND-G6173-00-00 SHAFT, DRIVE 2 (YMUS)SHAFT, DRIVE 2 (YMUS)
-
5099009-19400-00 CIRCLIPCIRCLIP
-
5190201-20266-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
5290501-235L9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
535GT-46136-00-00 SEAL 1SEAL 1
-
545GT-46137-00-00 SEAL 2SEAL 2
