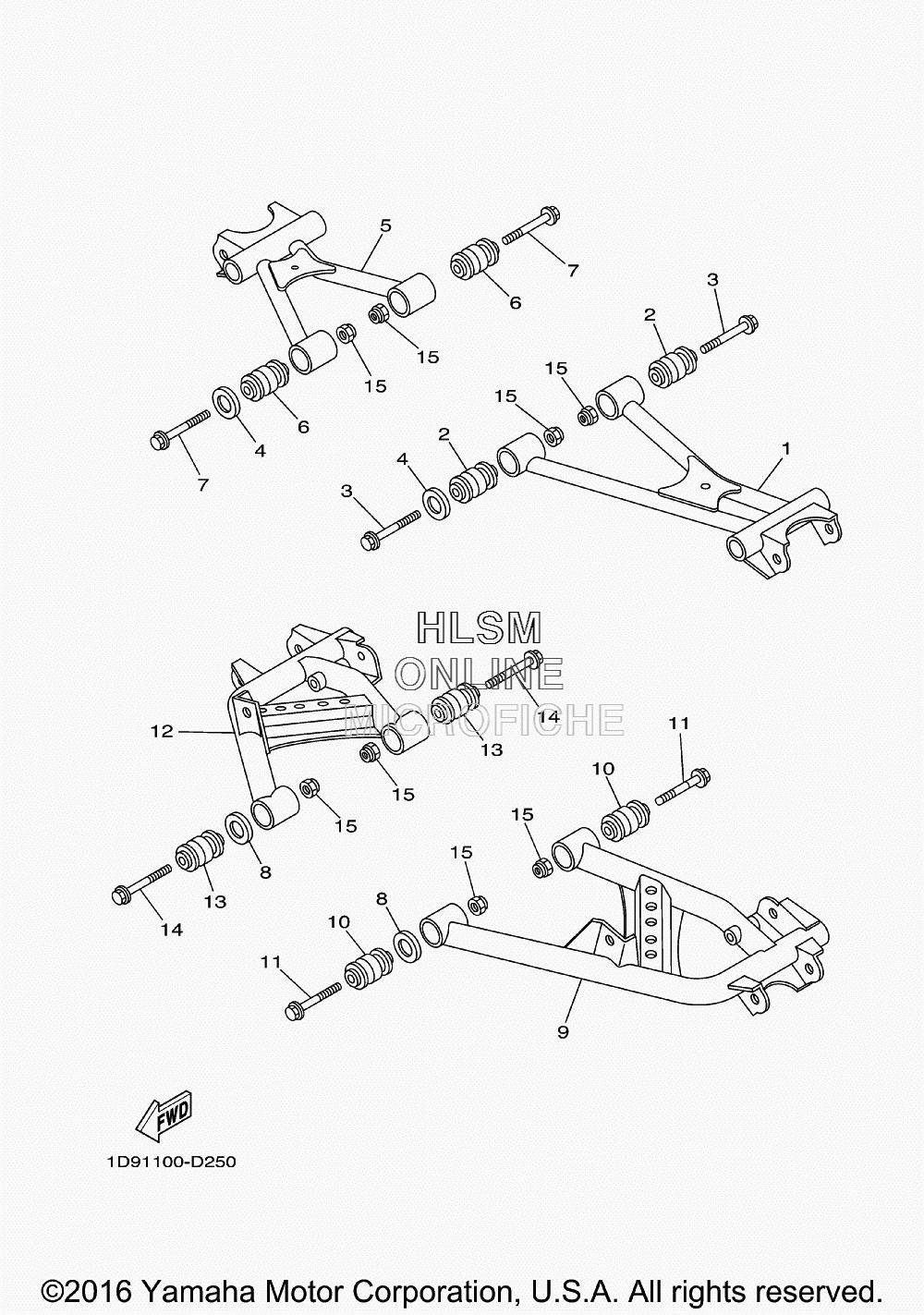

SUSPENSION - REAR ARM для Yamaha KODIAK 450 4WD BLACK/CARBON - 2005 года выпуска
-
№АртикулНазвание
-
11D9-F2171-00-00 ARM, REAR 1 (YMUS)ARM, REAR 1 (YMUS)
-
25KM-23526-00-00 BUSHBUSH
-
390105-10323-00 BOLT, FLANGEBOLT, FLANGE
-
45KM-22149-00-00 WASHERWASHER
-
51D9-F2172-00-00 ARM, REAR 2 (YMUS)ARM, REAR 2 (YMUS)
-
65KM-23526-00-00 BUSHBUSH
-
790105-10323-00 BOLT, FLANGEBOLT, FLANGE
-
85KM-22149-00-00 WASHERWASHER
-
91D9-F217M-00-00 ARM 1 (YMUS)ARM 1 (YMUS)
-
105KM-23526-00-00 BUSHBUSH
-
1190105-10323-00 BOLT, FLANGEBOLT, FLANGE
-
121D9-F217N-00-00 ARM 2 (YMUS)ARM 2 (YMUS)
-
135KM-23526-00-00 BUSHBUSH
-
1490105-10323-00 BOLT, FLANGEBOLT, FLANGE
-
1590185-10844-00 NUT, SELF-LOCKING (YMUS)NUT, SELF-LOCKING (YMUS)
