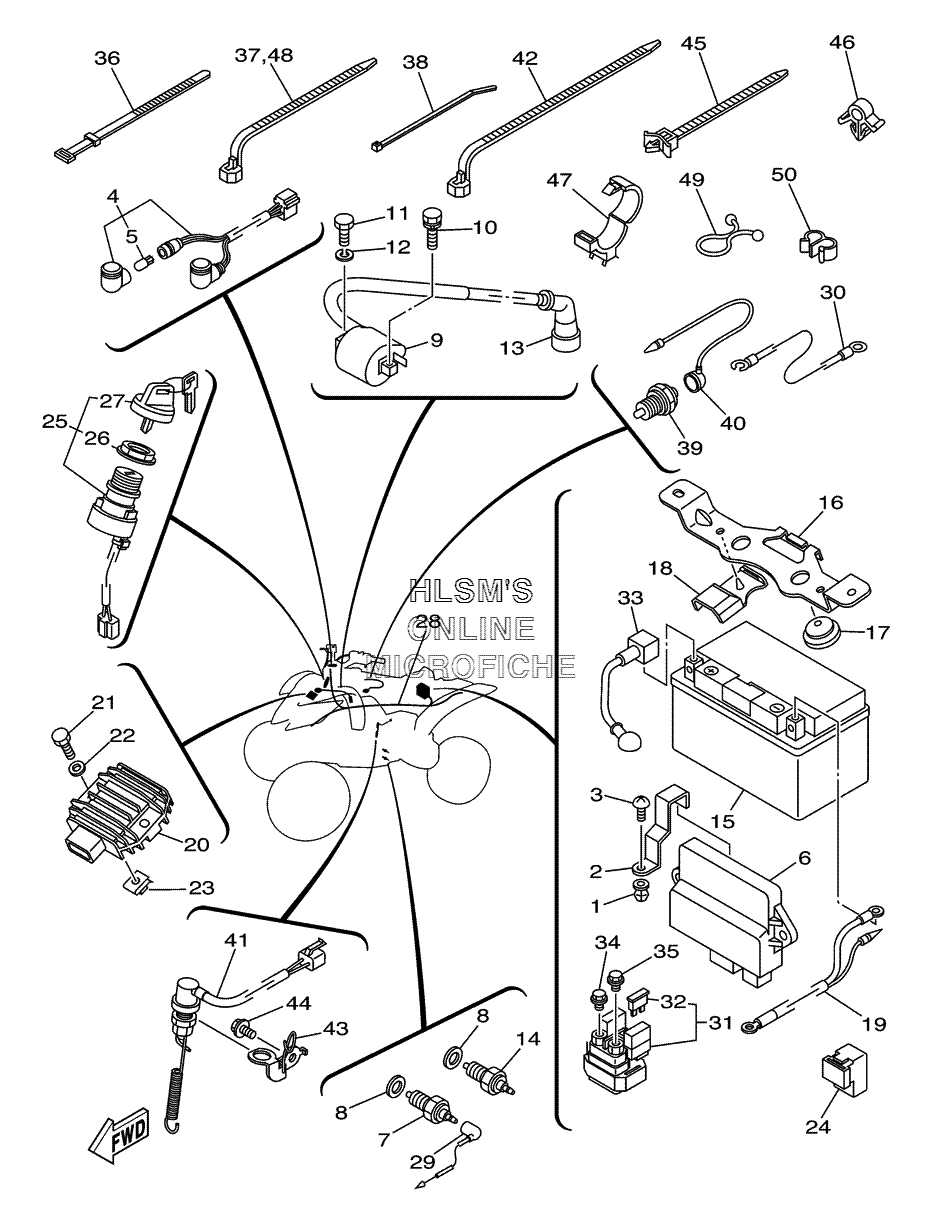

ELECTRICAL для Yamaha RAPTOR 350 YFM350RT - 2005 года выпуска
-
№АртикулНазвание
-
190338-08226-00 PLUGPLUG
-
25YT-8553A-00-00 STAY UNITSTAY UNIT
-
397707-60016-00 SCREW, TAPPINGSCREW, TAPPING
-
45YT-83530-00-00 PILOT LIGHT ASSY.PILOT LIGHT ASSY.
-
55GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
-
65YT-85540-00-00 C.D.I. UNIT ASSY.C.D.I. UNIT ASSY.
-
73GB-82540-01-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
890430-10148-00 GASKETGASKET
-
93KJ-82310-10-00 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
1090109-06723-00 BOLTBOLT
-
1197007-06020-00 BOLTBOLT
-
1292907-06100-00 WASHER, SPRINGWASHER, SPRING
-
131UY-82370-20-00 PLUG CAP ASSY.PLUG CAP ASSY.
-
143GD-82540-11-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
155VY-82100-00-00 BATTERY ASSY. (YTZ10S)BATTERY ASSY. (YTZ10S)
-
165YT-82128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
17371-82121-00-00 PAD, BATTERYPAD, BATTERY
-
185YT-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
195YT-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
205GT-81960-00-00 RECTIFIER AND REGULATOR ASSY.RECTIFIER AND REGULATOR ASSY.
-
2197007-06025-00 BOLTBOLT
-
2292907-06600-00 WASHER, PLATEWASHER, PLATE
-
2390183-06036-00 NUT, SPRINGNUT, SPRING
-
243GD-81950-01-00 RELAY ASSY.RELAY ASSY.
-
255LP-82510-00-00 MAIN SWITCH ASSY.MAIN SWITCH ASSY.
-
263HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
273HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
285YT-82590-00-00 WIRE HARNESS ASSY.WIRE HARNESS ASSY.
-
295YT-82541-00-00 WIRE, LEADWIRE, LEAD
-
303GD-82509-10-00 WIRE, SUB LEADWIRE, SUB LEAD
-
315YT-81940-00-00 STARTER RELAY ASSY.STARTER RELAY ASSY.
-
3236Y-82151-00-00 ...FUSE (15A-BL)...FUSE (15A-BL)
-
335YT-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
3495027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
3595027-06008-00 BOLT, FLANGEBOLT, FLANGE
-
36437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
3790464-13073-00 CLAMPCLAMP
-
3890465-10098-00 CLAMPCLAMP
-
394KD-82540-00-00 NEUTRAL SWITCH ASSY.NEUTRAL SWITCH ASSY.
-
405YT-82507-00-00 WIRE, LEADWIRE, LEAD
-
415NF-82530-00-00 STOP SWITCH ASSY.STOP SWITCH ASSY.
-
4290464-15195-00 CLAMPCLAMP
-
435YT-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
4495807-06010-00 BOLT, FLANGEBOLT, FLANGE
-
4590464-12089-00 CLAMPCLAMP
-
4690464-15157-00 CLAMPCLAMP
-
4790464-30252-00 CLAMPCLAMP
-
4890464-13073-00 CLAMPCLAMP
-
4990465-18147-00 CLAMPCLAMP
-
5090468-15139-00 CLIPCLIP
