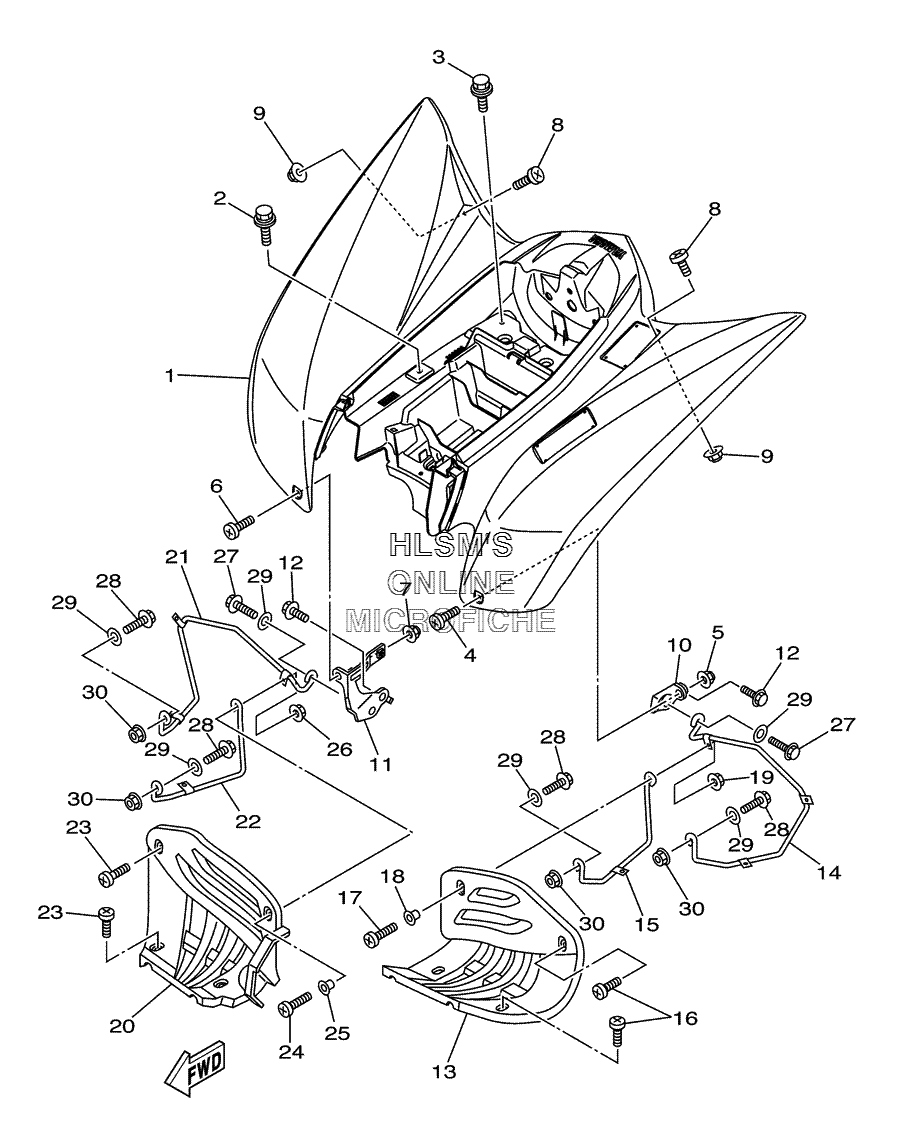

FENDER - REAR для Yamaha RAPTOR 350 YFM350RT - 2005 года выпуска
-
№АртикулНазвание
-
15YT-W2161-00-00 REAR FENDER COMP. FOR DPBSEREAR FENDER COMP. FOR DPBSE
-
15YT-W2161-10-00 REAR FENDER COMP. FOR BWS1REAR FENDER COMP. FOR BWS1
-
290119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
390119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
490149-06306-00 SCREWSCREW
-
590185-06153-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
690149-06306-00 SCREWSCREW
-
790185-06153-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
890149-06306-00 SCREWSCREW
-
990185-06153-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
105YT-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
115YT-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
1295827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
135LP-21621-00-00 FLAPFLAP
-
145YT-2164F-00-00 STAY 1STAY 1
-
155YT-2164H-00-00 STAY 3STAY 3
-
1690154-05013-00 SCREW, BINDINGSCREW, BINDING
-
1790154-06061-00 SCREW, BINDINGSCREW, BINDING
-
1890387-062E0-00 COLLARCOLLAR
-
1995607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
205LP-21691-00-00 FLAPFLAP
-
215YT-2164G-00-00 STAY 2STAY 2
-
225YT-2164J-00-00 STAY 4STAY 4
-
2390154-05013-00 SCREW, BINDINGSCREW, BINDING
-
2490154-06061-00 SCREW, BINDINGSCREW, BINDING
-
2590387-062E0-00 COLLARCOLLAR
-
2695607-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2795827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
2895827-08025-00 BOLT, FLANGEBOLT, FLANGE
-
2990201-08326-00 WASHER, PLATEWASHER, PLATE
-
3095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
