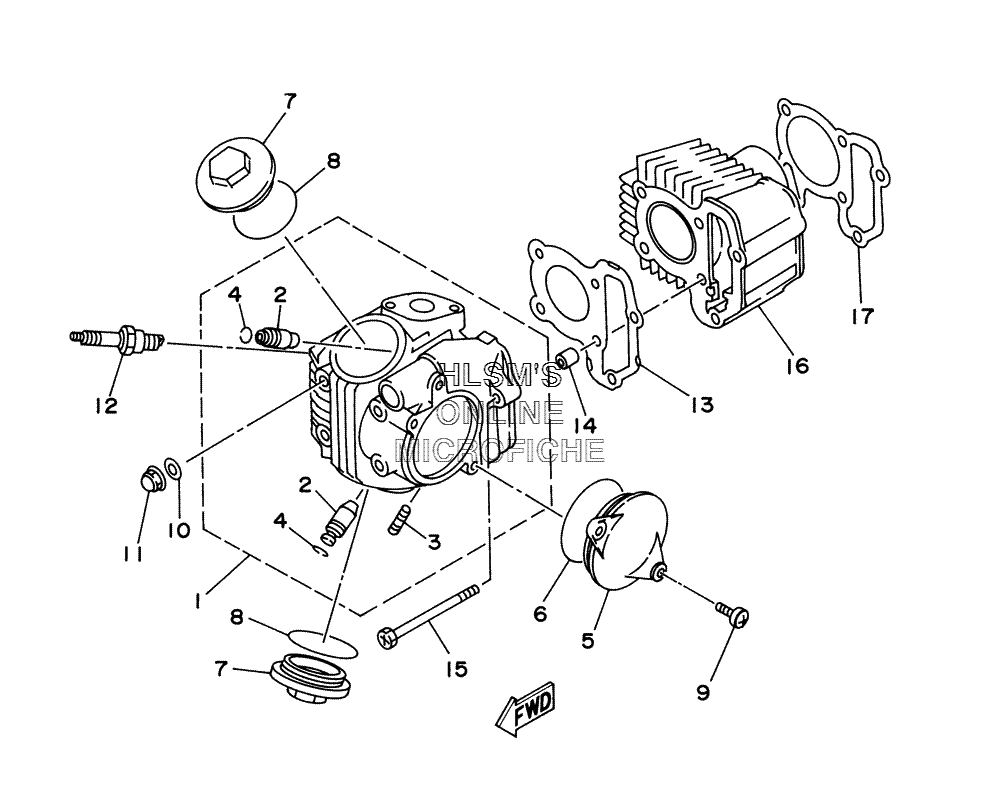

CYLINDER для Yamaha RAPTOR 80 YFM80RT - 2005 года выпуска
-
№АртикулНазвание
-
135T-11110-01-00 CYLINDER HEAD ASSY.CYLINDER HEAD ASSY.
-
222F-11134-10-00 ...GUIDE, EXST VLV 1 O/S...GUIDE, EXST VLV 1 O/S
-
322F-14651-00-00 ...BOLT, STUD...BOLT, STUD
-
493440-10109-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
522F-11185-01-00 COVER, CYLINDER HEAD SIDE 1COVER, CYLINDER HEAD SIDE 1
-
693210-63556-00 O-RINGO-RING
-
722F-11186-00-00 COVER, CYLINDER HEAD SIDE 2COVER, CYLINDER HEAD SIDE 2
-
893210-44704-00 O-RINGO-RING
-
998507-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1090201-066F0-00 WASHER, PLATEWASHER, PLATE
-
1190176-06065-00 NUT, CROWNNUT, CROWN
-
1294701-00366-00 PLUG, SPARK (NGK CR7HSA)PLUG, SPARK (NGK CR7HSA)
-
1355X-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1499530-08012-00 PIN, DOWELPIN, DOWEL
-
1595027-06085-00 BOLT, FLANGEBOLT, FLANGE
-
1622K-11311-02-00 CYLINDER 1CYLINDER 1
-
1722F-11351-01-00 GASKET, CYLINDERGASKET, CYLINDER
