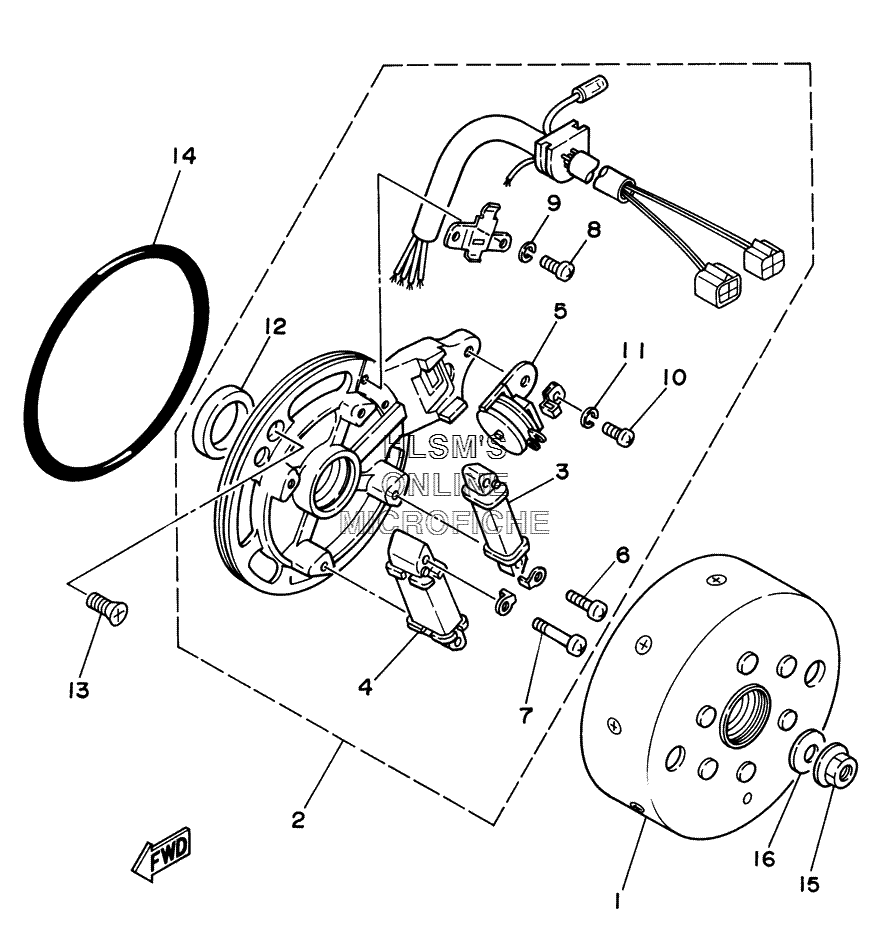

GENERATOR для Yamaha RAPTOR 80 YFM80RT - 2005 года выпуска
-
№АртикулНазвание
-
12FM-85550-M0-00 ROTOR ASSY.ROTOR ASSY.
-
24EM-85560-10-00 BASE ASSY.BASE ASSY.
-
35G3-85520-M1-00 ...COIL, CHARGE...COIL, CHARGE
-
455X-81313-M0-00 ...COIL, LIGHTING 1...COIL, LIGHTING 1
-
522K-85595-M0-00 ...COIL, PULSER...COIL, PULSER
-
698511-04012-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
798511-04020-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
898501-04006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
992901-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
1098501-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
1192901-05100-00 ...WASHER, SPRING...WASHER, SPRING
-
1293102-19276-00 ...OIL SEAL, SD-TYPE...OIL SEAL, SD-TYPE
-
1398707-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1493211-02703-00 O-RINGO-RING
-
1590179-10394-00 NUTNUT
-
1690201-101A4-00 WASHER, PLATEWASHER, PLATE
