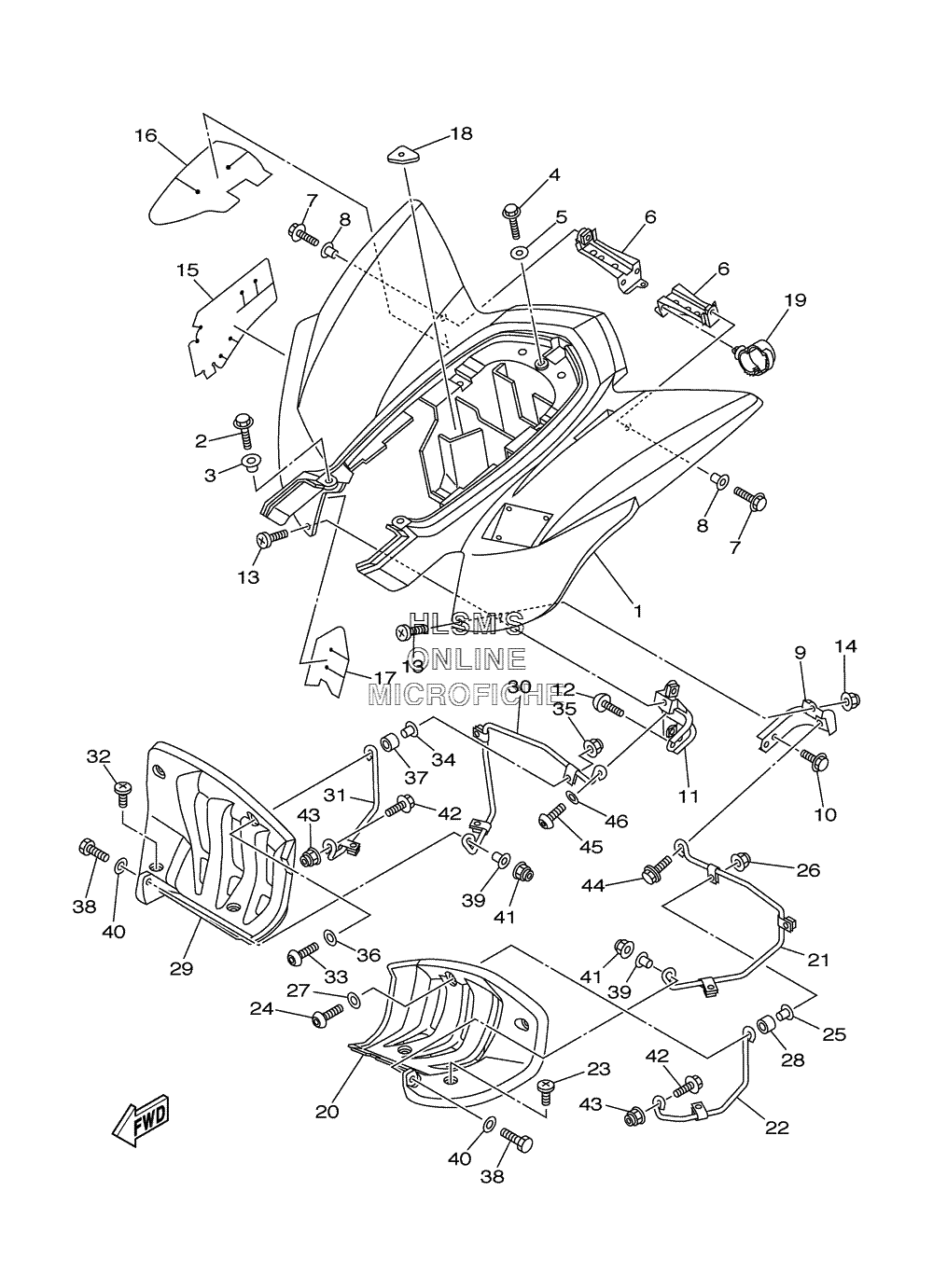

FENDER - REAR для Yamaha YFZ450 SPECIAL EDITION YFZ450SET - 2005 года выпуска
-
№АртикулНазвание
-
15TG-W2161-21-00 REAR FENDER COMP.REAR FENDER COMP.
-
290105-06044-00 BOLT, FLANGEBOLT, FLANGE
-
390387-06024-00 COLLARCOLLAR
-
490105-06044-00 BOLT, FLANGEBOLT, FLANGE
-
590201-067A0-00 WASHER, PLATEWASHER, PLATE
-
65TG-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
795807-06014-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
890387-06648-00 COLLARCOLLAR
-
95TG-21643-00-00 STAY, REARSTAY, REAR
-
1095827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
115TG-21644-00-00 STAY, REARSTAY, REAR
-
1292017-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1390149-06306-00 SCREWSCREW
-
1495607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
155TG-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
165TG-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
175TG-2163F-00-00 COVER, REAR FENDER 3COVER, REAR FENDER 3
-
185TG-21639-00-00 DAMPER 2DAMPER 2
-
1990464-20181-00 CLAMPCLAMP
-
205TG-21621-00-00 FLAPFLAP
-
215TG-2164F-00-00 STAY 1STAY 1
-
225TG-2164H-00-00 STAY 3STAY 3
-
2390154-05013-00 SCREW, BINDINGSCREW, BINDING
-
2492017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2590560-06201-00 SPACERSPACER
-
2695607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
2790201-06778-00 WASHER, PLATEWASHER, PLATE
-
2890387-06081-00 COLLARCOLLAR
-
295TG-21691-00-00 FLAPFLAP
-
305TG-2164G-00-00 STAY 2STAY 2
-
315TG-2164J-00-00 STAY 4STAY 4
-
3290154-05013-00 SCREW, BINDINGSCREW, BINDING
-
3392017-06035-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3490560-06201-00 SPACERSPACER
-
3595607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
3690201-06778-00 WASHER, PLATEWASHER, PLATE
-
3790387-06081-00 COLLARCOLLAR
-
3897027-06025-00 BOLTBOLT
-
3990387-06074-00 COLLARCOLLAR
-
4090201-06013-00 WASHER, PLATEWASHER, PLATE
-
4195607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
4295827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
4395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4592017-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4690201-086P8-00 WASHER, PLATEWASHER, PLATE
