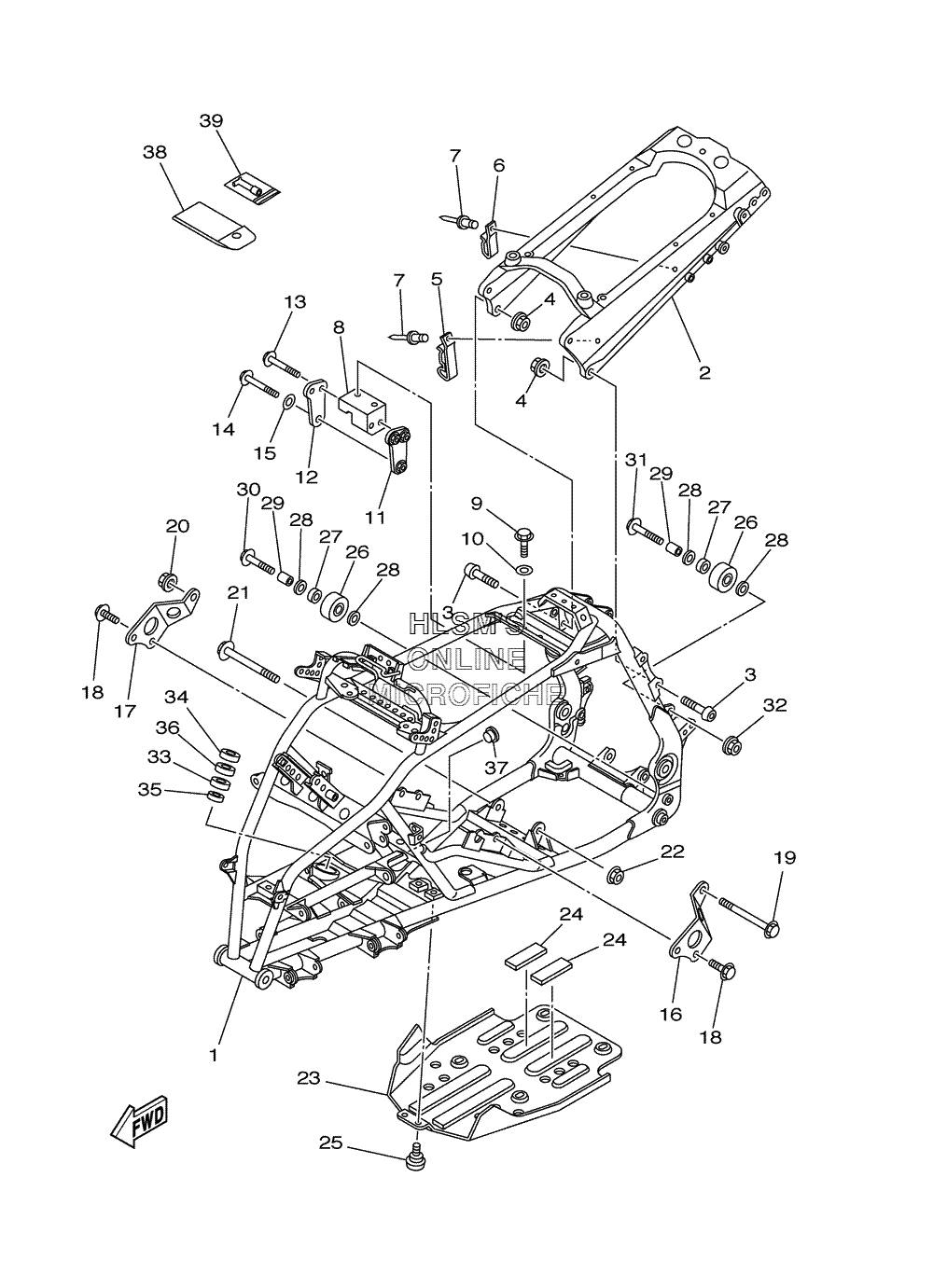

FRAME для Yamaha YFZ450 SPECIAL EDITION YFZ450SET - 2005 года выпуска
-
№АртикулНазвание
-
15TG-21101-38-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
25TG-21190-39-00 REAR FRAME COMP.REAR FRAME COMP.
-
392017-10030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
490185-10002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
590462-12003-00 CLAMPCLAMP
-
690462-12005-00 CLAMPCLAMP
-
790267-48088-00 RIVET, BLINDRIVET, BLIND
-
85TG-21315-00-00 STAY, ENGINE 1STAY, ENGINE 1
-
995817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1090201-08784-00 WASHER, PLATEWASHER, PLATE
-
115TG-21318-00-00 STAY, ENGINE 4STAY, ENGINE 4
-
125TG-21314-00-00 STAY, ENGINE 5STAY, ENGINE 5
-
1395817-08050-00 BOLT, FLANGEBOLT, FLANGE
-
1495817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
1590201-10774-00 WASHER, PLATEWASHER, PLATE
-
165TG-21316-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
175TG-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
1895817-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1995817-10165-00 BOLT, FLANGEBOLT, FLANGE
-
2090185-10002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190105-10733-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2290185-10002-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
235TG-21471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
2441R-21717-00-00 DAMPERDAMPER
-
2590109-066G1-00 BOLTBOLT
-
265TG-22178-00-00 TENSIONERTENSIONER
-
2793300-60804-00 BEARINGBEARING
-
2890201-086P8-00 WASHER, PLATEWASHER, PLATE
-
2990387-086N4-00 COLLARCOLLAR
-
3095027-08040-00 BOLT, FLANGEBOLT, FLANGE
-
3190105-08062-00 BOLT, FLANGEBOLT, FLANGE
-
3295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3393306-20331-00 BEARINGBEARING
-
3493102-25081-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
3593102-25099-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
365GT-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
3790338-18122-00 PLUGPLUG
-
385TG-28100-00-00 TOOL KITTOOL KIT
-
391NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
