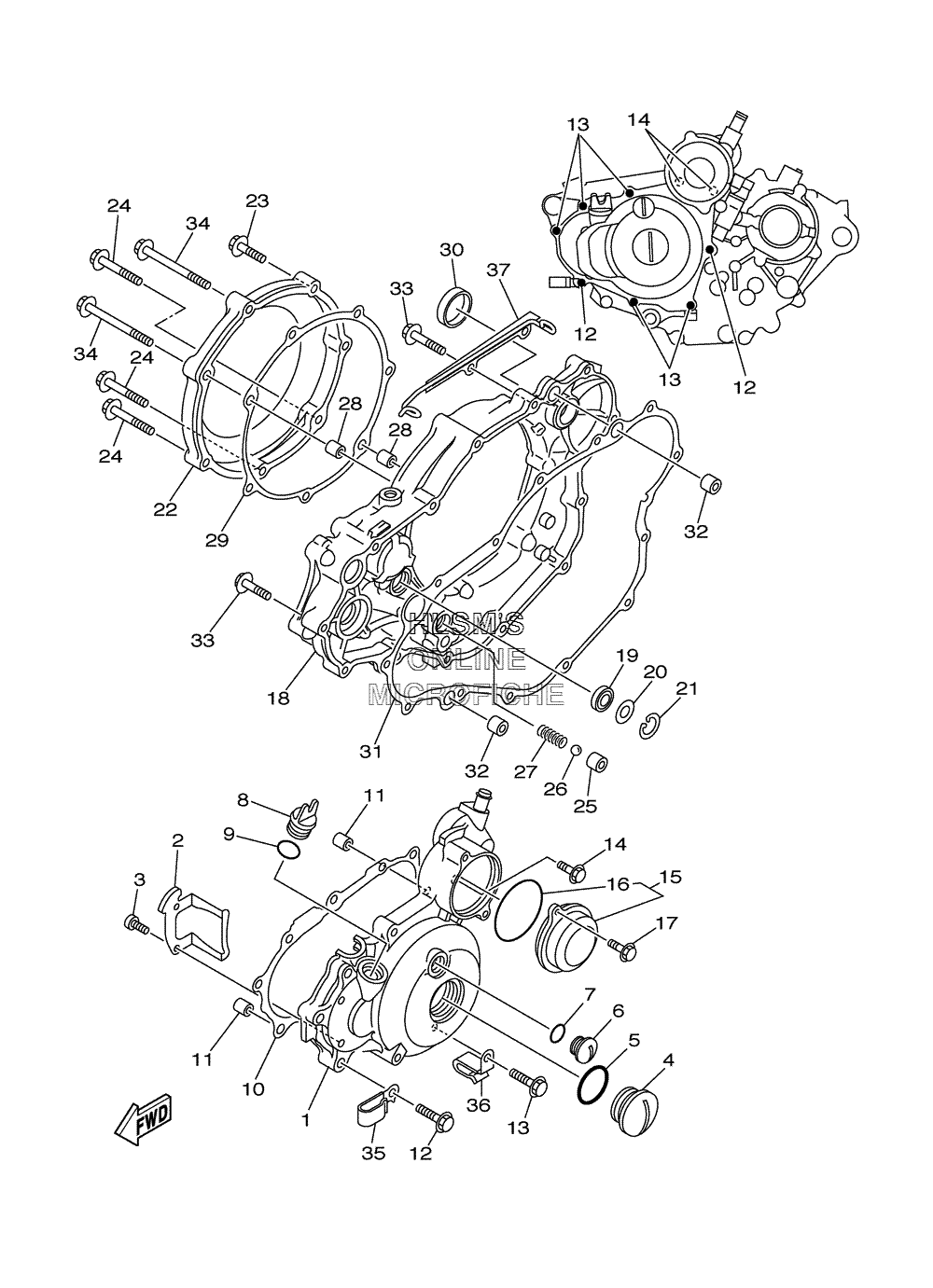

CRANKCASE COVER для Yamaha YFZ450 YFZ450T - 2005 года выпуска
-
№АртикулНазвание
-
15TG-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
290465-10017-00 CLAMPCLAMP
-
391317-05012-00 BOLTBOLT
-
490340-27002-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
593210-27370-00 O-RINGO-RING
-
690340-14128-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
793210-14369-00 O-RINGO-RING
-
83Y1-15363-00-00 PLUG, OILPLUG, OIL
-
993210-19123-00 O-RINGO-RING
-
105TG-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1199530-08016-00 PIN, DOWELPIN, DOWEL
-
1295027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1395027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1495027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
155TG-1549B-00-00 CRANKCASE COVER ASSY.CRANKCASE COVER ASSY.
-
1693210-60426-00 ...O-RING...O-RING
-
1795027-06016-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
185XD-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
1993101-14164-00 OIL SEALOIL SEAL
-
2090201-15701-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
2199009-22500-00 CIRCLIPCIRCLIP
-
225TA-15415-10-00 COVER, GENERATORCOVER, GENERATOR
-
2395027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2495027-06040-00 BOLT, FLANGEBOLT, FLANGE
-
25583-13113-00-00 SEAT, CHECK BALLSEAT, CHECK BALL
-
2693503-08007-00 BALL 3/8BALL 3/8
-
2790501-043E0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2899530-08016-00 PIN, DOWELPIN, DOWEL
-
295TA-15453-00-00 GASKETGASKET
-
3090338-30096-00 PLUGPLUG
-
315TA-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
3291812-16001-00 PIN, DOWELPIN, DOWEL
-
3395027-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3495027-06080-00 BOLT, FLANGEBOLT, FLANGE
-
3590465-08125-00 CLAMPCLAMP
-
3690462-10025-00 CLAMPCLAMP
-
375TG-15484-00-00 CLAMP 2CLAMP 2
