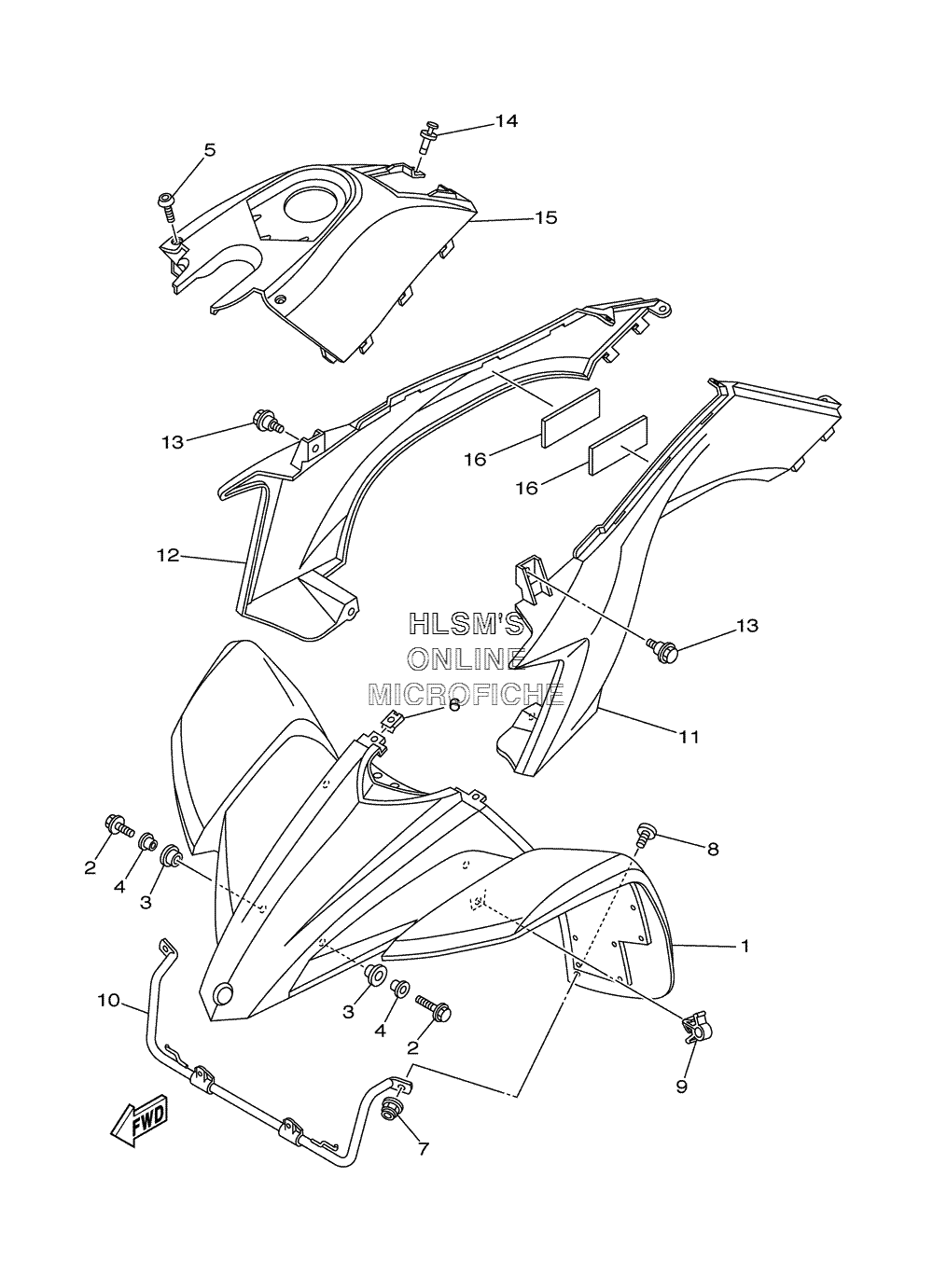

FENDER - FRONT для Yamaha YFZ450 YFZ450T - 2005 года выпуска
-
№АртикулНазвание
-
15TG-W2151-00-00 FRONT FENDER COMP. FOR DPBSEFRONT FENDER COMP. FOR DPBSE
-
15TG-W2151-10-00 FRONT FENDER COMP. FOR BWS1FRONT FENDER COMP. FOR BWS1
-
295807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
390480-15006-00 GROMMETGROMMET
-
490387-062L2-00 COLLARCOLLAR
-
590110-05201-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
690183-05008-00 NUT, SPRINGNUT, SPRING
-
795607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
890149-06306-00 SCREWSCREW
-
990464-48174-00 CLAMPCLAMP
-
105TG-21513-00-00 STAY, FENDER 1STAY, FENDER 1
-
115TG-21711-00-00 COVER, SIDE 1 FOR DPBSECOVER, SIDE 1 FOR DPBSE
-
115TG-21711-10-00 COVER, SIDE 1 FOR BWS1COVER, SIDE 1 FOR BWS1
-
125TG-21721-00-00 COVER, SIDE 2 FOR DPBSECOVER, SIDE 2 FOR DPBSE
-
125TG-21721-10-00 COVER, SIDE 2 FOR BWS1COVER, SIDE 2 FOR BWS1
-
1390109-063F1-00 BOLTBOLT
-
1490269-06002-00 RIVETRIVET
-
155TG-2171A-00-00 COVER, TOP FOR DPBSECOVER, TOP FOR DPBSE
-
155TG-2171A-10-00 COVER, TOP BWS1COVER, TOP BWS1
-
165TG-21541-00-00 DAMPER 1DAMPER 1
