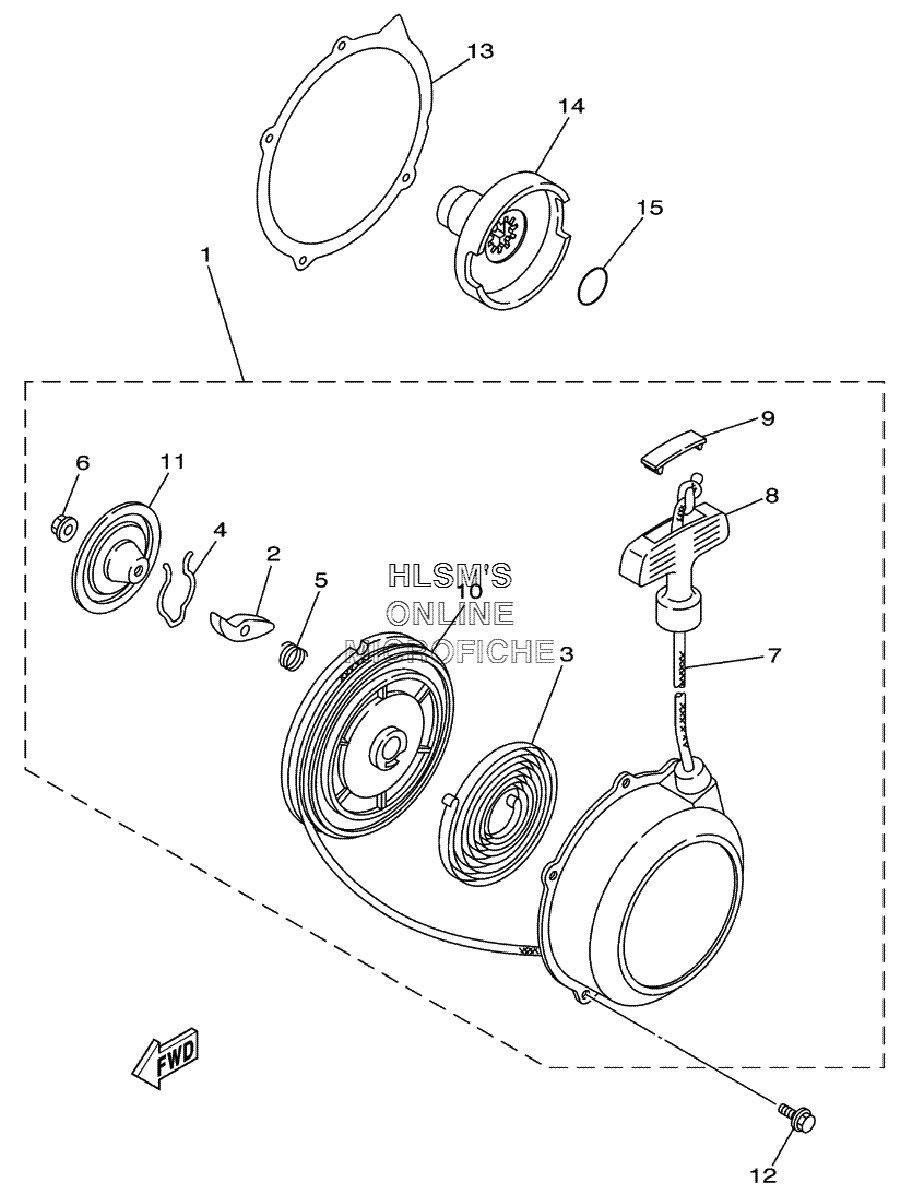

STARTER - RECOIL для Yamaha BIG BEAR 400 4x4 YFM40FV - 2006 года выпуска
-
№АртикулНазвание
-
11UY-15710-30-00 STARTER ASSY.STARTER ASSY.
-
221V-15741-00-00 ...PAWL, DRIVE...PAWL, DRIVE
-
321V-15713-00-00 ...SPRING, STARTER...SPRING, STARTER
-
421V-15715-01-00 ...SPRING, FRICTION...SPRING, FRICTION
-
521V-15767-00-00 ...SPRING...SPRING
-
695702-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
721V-15751-00-00 ...ROPE, STARTER...ROPE, STARTER
-
83X3-15755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
921V-15779-00-00 ...COVER...COVER
-
1024W-15714-00-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
1121V-15716-01-00 ...PLATE, DRIVE...PLATE, DRIVE
-
1295027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
133GD-15699-00-00 GASKETGASKET
-
141UY-15723-00-00 PULLEY, STARTERPULLEY, STARTER
-
1593210-16290-00 O-RINGO-RING
