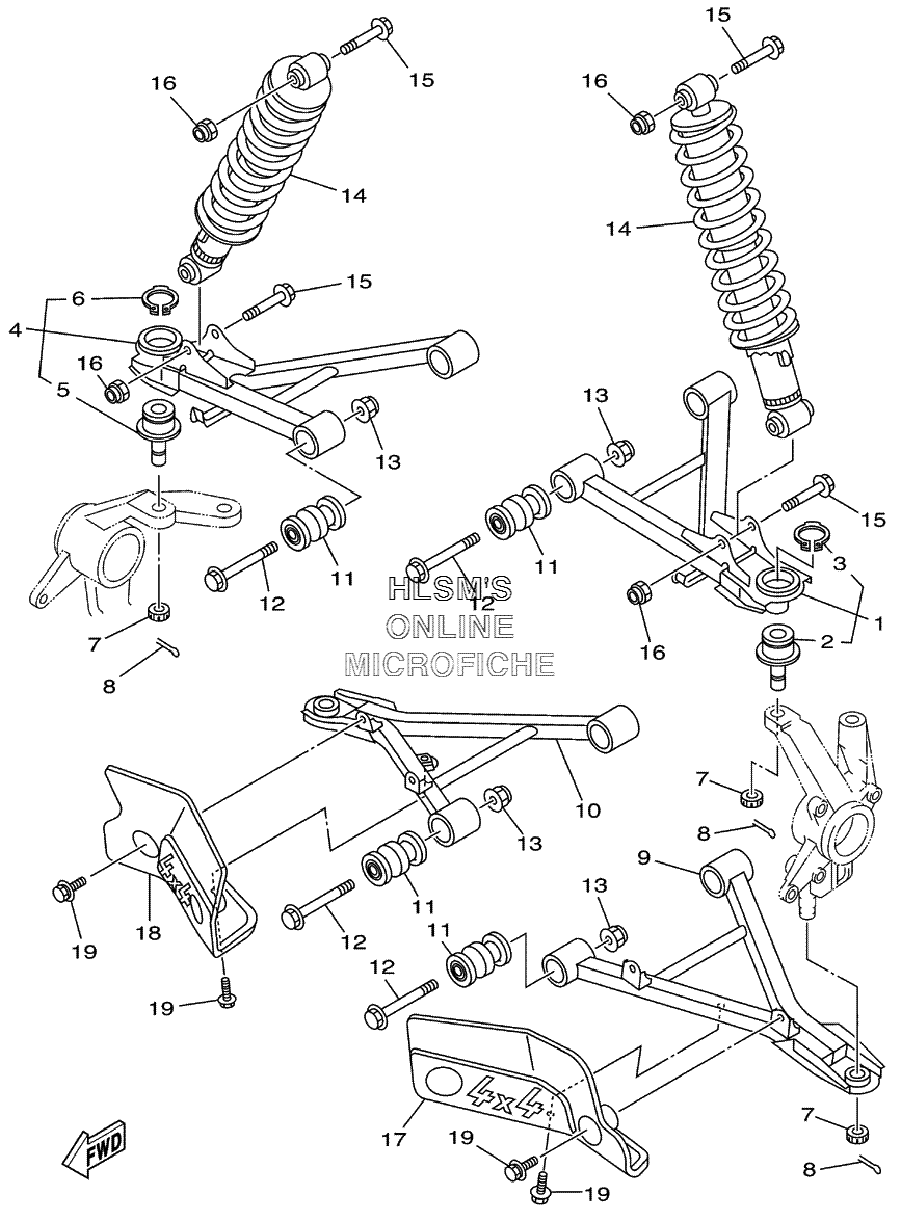

SUSPENSION - FRONT WHEEL для Yamaha BIG BEAR 400 4x4 YFM40FV - 2006 года выпуска
-
№АртикулНазвание
-
15FU-F3540-00-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
25FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
393410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
45FU-F3550-00-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
55FU-F3549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
693410-32826-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
790171-12816-00 NUT, CASTLENUT, CASTLE
-
891401-25020-00 PIN, COTTERPIN, COTTER
-
95FU-F357A-00-00 ARM, FRONT LOWER LH.ARM, FRONT LOWER LH.
-
105FU-F358A-00-00 ARM, FRONT LOWER RH.ARM, FRONT LOWER RH.
-
112HR-23526-00-00 BUSHBUSH
-
1290105-10890-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1390185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
145FU-F3350-10-00 SHOCK ABSORBER ASSY.SHOCK ABSORBER ASSY.
-
1590105-108B1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1690185-10844-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
175FU-F3123-00-00 COVER, LOWER 1COVER, LOWER 1
-
185FU-F3133-00-00 COVER, LOWER 2COVER, LOWER 2
-
1990119-06060-00 BOLT, WITH WASHERBOLT, WITH WASHER
