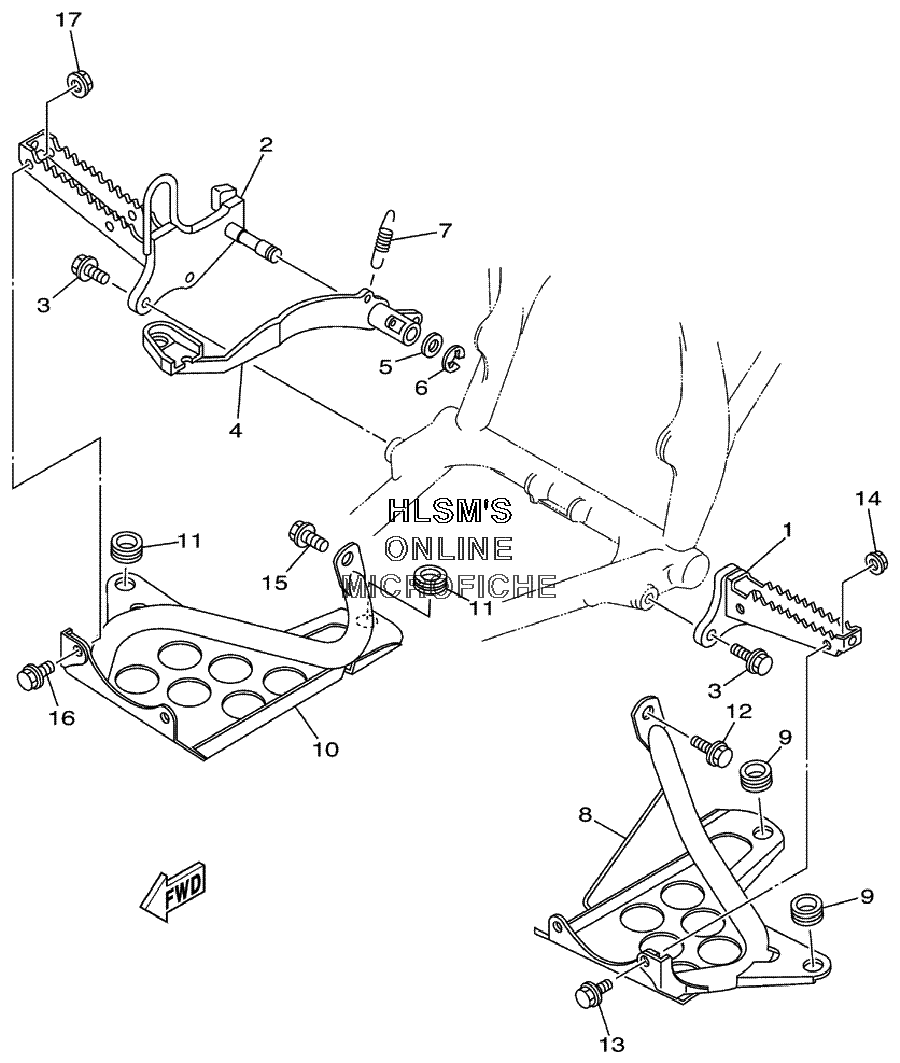

FOOTREST W/ BRAKE PEDAL для Yamaha BLASTER YFS200V - 2006 года выпуска
-
№АртикулНазвание
-
15KJ-27411-00-00 FOOTREST 1FOOTREST 1
-
25VM-27421-00-00 FOOTREST 2FOOTREST 2
-
395817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
45VM-27211-00-00 PEDAL, BRAKEPEDAL, BRAKE
-
590201-15797-00 WASHER, PLATEWASHER, PLATE
-
693430-12008-00 CIRCLIP, E-TYPECIRCLIP, E-TYPE
-
790506-20380-00 SPRING, TENSIONSPRING, TENSION
-
83JM-27445-00-00 PLATE 1PLATE 1
-
990480-18411-00 GROMMETGROMMET
-
103JM-27446-00-00 PLATE 2PLATE 2
-
1190480-18411-00 GROMMETGROMMET
-
1295827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1392017-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1495707-08500-00 NUT, FLANGENUT, FLANGE
-
1595827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
1692017-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1795707-08500-00 NUT, FLANGENUT, FLANGE
