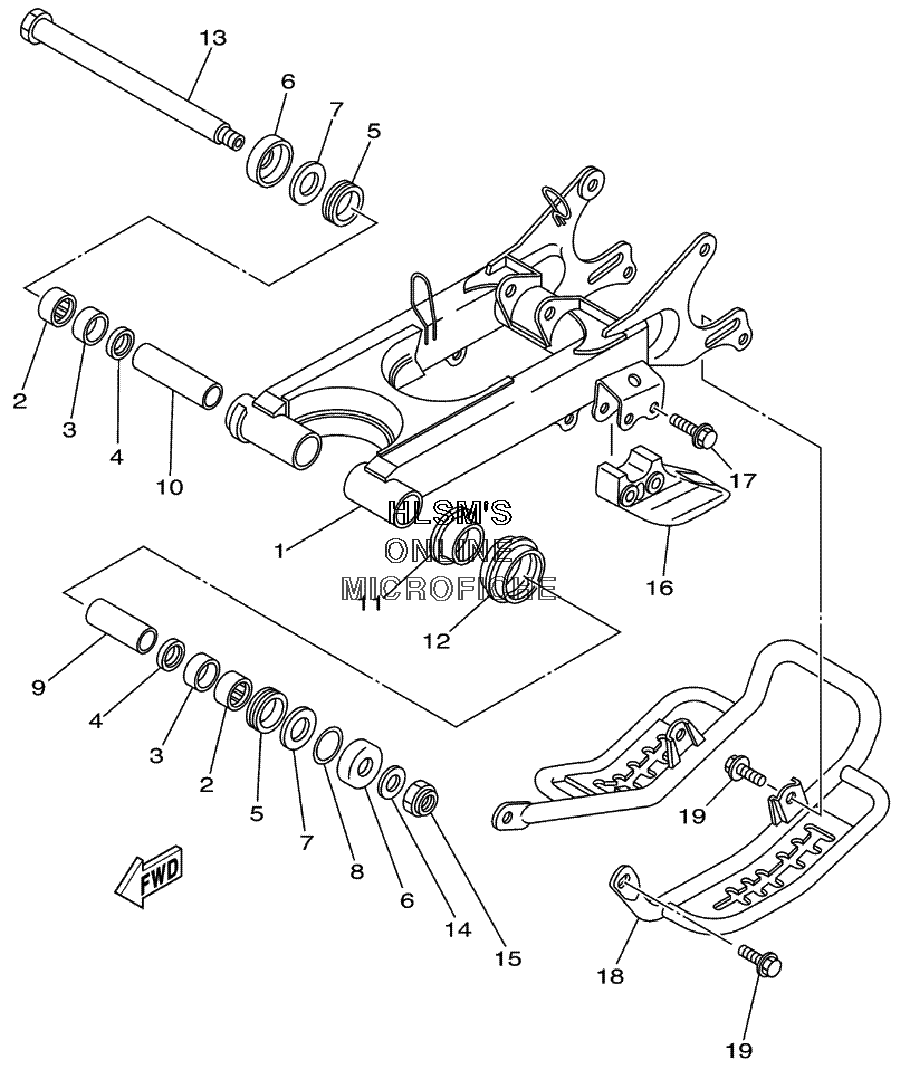

SUSPENSION - REAR ARM для Yamaha BLASTER YFS200V - 2006 года выпуска
-
№АртикулНазвание
-
15VM-22110-10-00 REAR ARM COMP.REAR ARM COMP.
-
293317-22237-00 BEARING, CYL.#17BEARING, CYL.#17
-
390380-22111-00 BUSH, SOLIDBUSH, SOLID
-
493106-22019-00 OIL SEAL, DD-TYPEOIL SEAL, DD-TYPE
-
593108-35004-00 OIL SEAL, OSO-TYPEOIL SEAL, OSO-TYPE
-
62K6-22128-01-00 COVER, THRUST 1COVER, THRUST 1
-
790201-244A9-00 WASHER, PLATE (2.05T)WASHER, PLATE (2.05T)
-
8156-22127-00-00 SHIM (0.3T)SHIM (0.3T)
-
92XJ-22123-00-00 BUSH 1BUSH 1
-
102XJ-22124-00-00 BUSH 2BUSH 2
-
112GU-22155-00-00 COLLARCOLLAR
-
122GU-22151-10-00 SEAL, GUARDSEAL, GUARD
-
132JN-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
1490201-14215-00 WASHER, PLATEWASHER, PLATE
-
1590185-14070-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1638W-22199-00-00 SUPPORT, CHAINSUPPORT, CHAIN
-
1795807-08040-00 BOLT, FLANGEBOLT, FLANGE
-
182XJ-2219X-00-00 COVERCOVER
-
1995827-08012-00 BOLT, FLANGEBOLT, FLANGE
