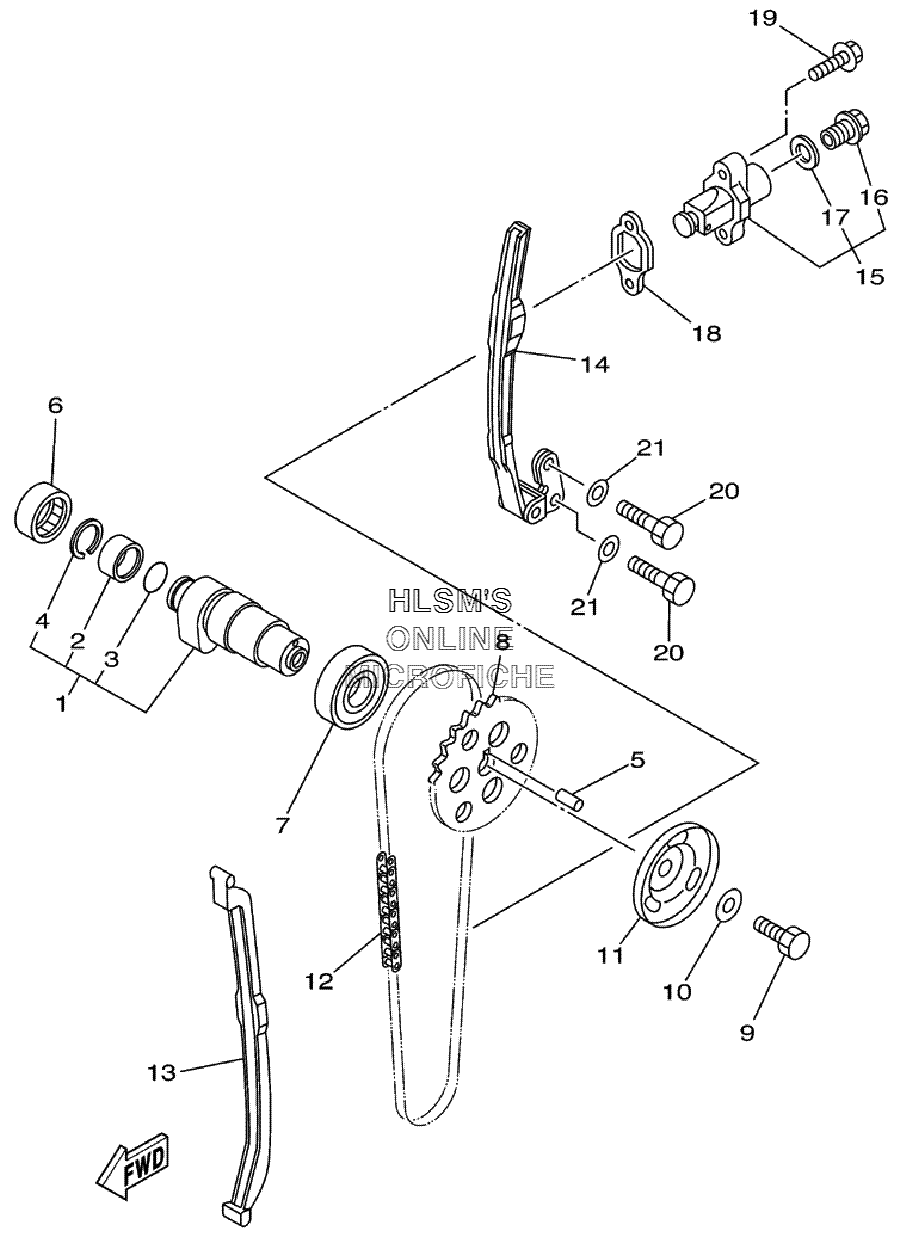

CAMSHAFT W/ CHAIN для Yamaha BRUIN 350 4WD HUNTER YFM35FAHV - 2006 года выпуска
![](/wa-data/public/shop/sheme/yamaha/atv/439e77ae-0fce-47d5-98c0-bd281d5b793a.gif)
-
№АртикулНазвание
-
15UH-12170-00-00 CAMSHAFT ASSY. 1CAMSHAFT ASSY. 1
-
290387-20013-00 ...COLLAR...COLLAR
-
393210-17003-00 ...O-RING...O-RING
-
493410-20038-00 ...CIRCLIP, S-TYPE...CIRCLIP, S-TYPE
-
593604-10011-00 PIN, DOWELPIN, DOWEL
-
693315-32516-00 BEARING, CYL.#15BEARING, CYL.#15
-
793306-00502-00 BEARINGBEARING
-
85UH-12176-00-00 SPROCKET, CAM CHAINSPROCKET, CAM CHAIN
-
990101-10303-00 BOLTBOLT
-
1090201-10591-00 WASHER, PLATEWASHER, PLATE
-
114KB-11145-00-00 PLATE, BREATHER 2PLATE, BREATHER 2
-
1294591-87110-00 CHAIN (92RH2005-110M)CHAIN (92RH2005-110M)
-
135UH-12231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
145UH-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
1531G-12210-01-00 TENSIONER ASSY., CAM CHAINTENSIONER ASSY., CAM CHAIN
-
1631G-12222-00-00 ...PLUG...PLUG
-
1731G-12214-00-00 ...GASKET...GASKET
-
183GD-12213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
1995027-06025-00 BOLT, FLANGEBOLT, FLANGE
-
2097027-06016-00 BOLTBOLT
-
2192907-06600-00 WASHER, PLATEWASHER, PLATE
