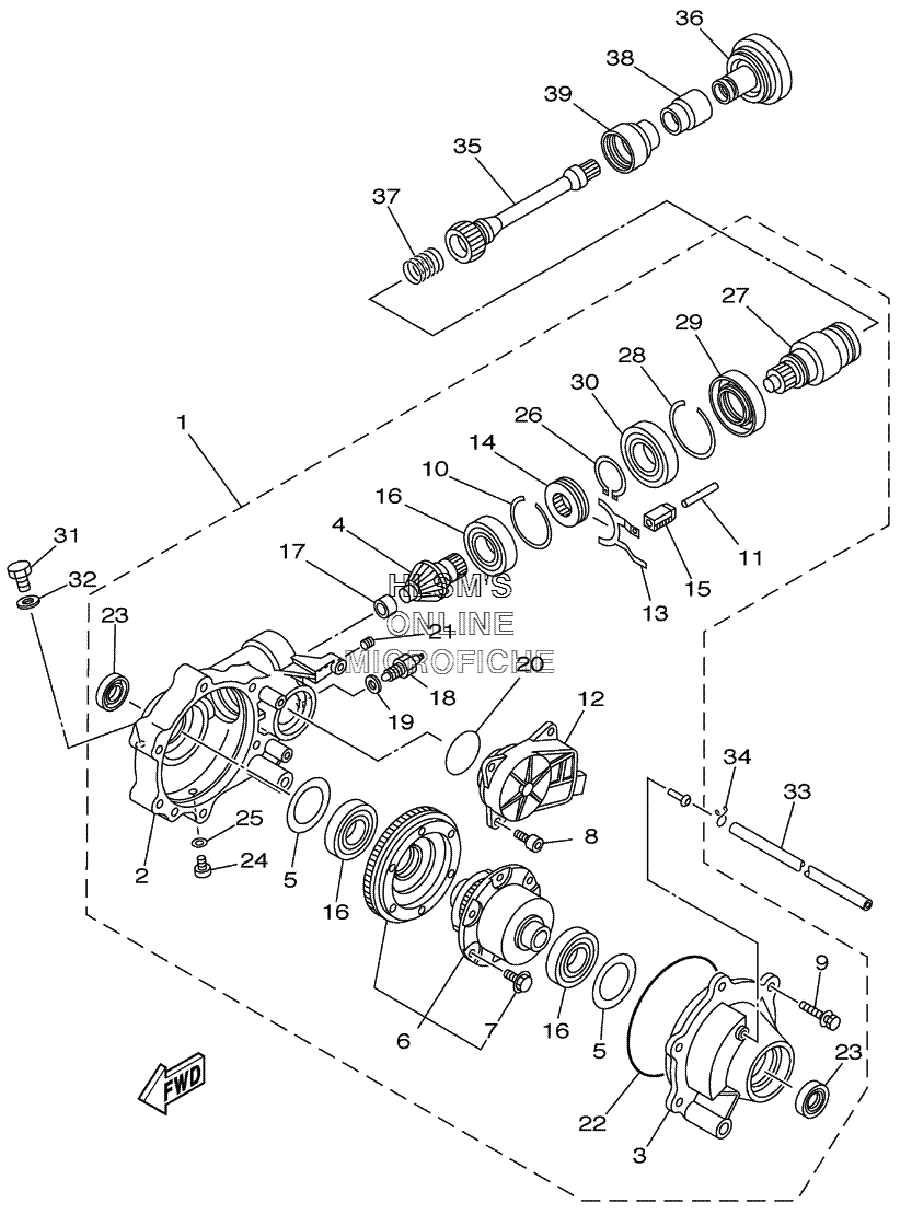

DIFFERENTIAL - FRONT для Yamaha BRUIN 350 4WD HUNTER YFM35FAHV - 2006 года выпуска
-
№АртикулНазвание
-
15GH-46160-04-00 FRONT AXLE GEAR CASE COMP.FRONT AXLE GEAR CASE COMP.
-
25GH-46161-01-00 ...HOUSING, SHAFT DRIVE 2...HOUSING, SHAFT DRIVE 2
-
35GH-46162-01-00 ...HOUSING, BEARING 2...HOUSING, BEARING 2
-
45GH-46141-01-00 ...PINION, DRIVE 2...PINION, DRIVE 2
-
54WV-46119-01-00 ...SHIM, THRUST (0.1T) (OPT)...SHIM, THRUST (0.1T) (OPT)
-
54WV-46119-11-00 ...SHIM, THRUST (0.2T) (OPT)...SHIM, THRUST (0.2T) (OPT)
-
54WV-46119-21-00 ...SHIM, THRUST (0.3T) (OPT)...SHIM, THRUST (0.3T) (OPT)
-
54WV-46119-31-00 ...SHIM, THRUST (0.4T) (OPT)...SHIM, THRUST (0.4T) (OPT)
-
54WV-46119-51-00 ...SHIM, THRUST (1.0T) (OPT)...SHIM, THRUST (1.0T) (OPT)
-
54WV-46119-41-00 ...SHIM, THRUST (0.5T) (OPT)...SHIM, THRUST (0.5T) (OPT)
-
65GH-46470-03-00 ...LIMITED SLIP DIFF. ASSY....LIMITED SLIP DIFF. ASSY.
-
74WV-46155-00-00 ...BOLT 1...BOLT 1
-
891317-08020-00 ...BOLT...BOLT
-
94WV-46159-00-00 ...BOLT 3...BOLT 3
-
104WV-46143-00-00 ...RING, HOLE SNAP 2...RING, HOLE SNAP 2
-
115GH-18318-00-00 ...SHAFT, SHIFTER...SHAFT, SHIFTER
-
125GH-4616A-02-00 ...SERVO MOTOR COMP...SERVO MOTOR COMP
-
135GH-18514-01-00 ...FORK, SHIFT 4...FORK, SHIFT 4
-
144WV-46441-00-00 ...CLUTCH, DRIVEN...CLUTCH, DRIVEN
-
155GH-18319-00-00 ...SHAFT 2...SHAFT 2
-
164WV-46165-00-00 ...BEARING 2...BEARING 2
-
174WV-46167-00-00 ...BEARING 4...BEARING 4
-
183GD-82540-11-00 ...NEUTRAL SWITCH ASSY....NEUTRAL SWITCH ASSY.
-
194WV-46132-00-00 ...GASKET 1...GASKET 1
-
2093210-50768-00 ...O-RING...O-RING
-
2190113-08004-00 ...BOLT, SET...BOLT, SET
-
2293211-40040-00 ...O-RING...O-RING
-
2393102-24034-00 ...OIL SEAL...OIL SEAL
-
2490340-10001-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
2590430-10003-00 ...GASKET...GASKET
-
2693450-44141-00 ...CIRCLIP...CIRCLIP
-
275GH-46126-01-00 ...COUPLING...COUPLING
-
2893450-71142-00 ...CIRCLIP...CIRCLIP
-
2993102-50030-00 ...OIL SEAL...OIL SEAL
-
3093316-00801-00 ...BEARING...BEARING
-
3190340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
32214-11198-01-00 GASKETGASKET
-
3390445-07809-00 HOSE (L750)HOSE (L750)
-
3490467-07029-00 CLIP, SCISSORCLIP, SCISSOR
-
355TE-G6173-10-00 SHAFT, DRIVE 2SHAFT, DRIVE 2
-
365GH-46123-00-00 COUPLING, GEARCOUPLING, GEAR
-
3790501-296L7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
385GH-46136-00-00 SEAL 1SEAL 1
-
395KM-46137-00-00 SEAL 2SEAL 2
