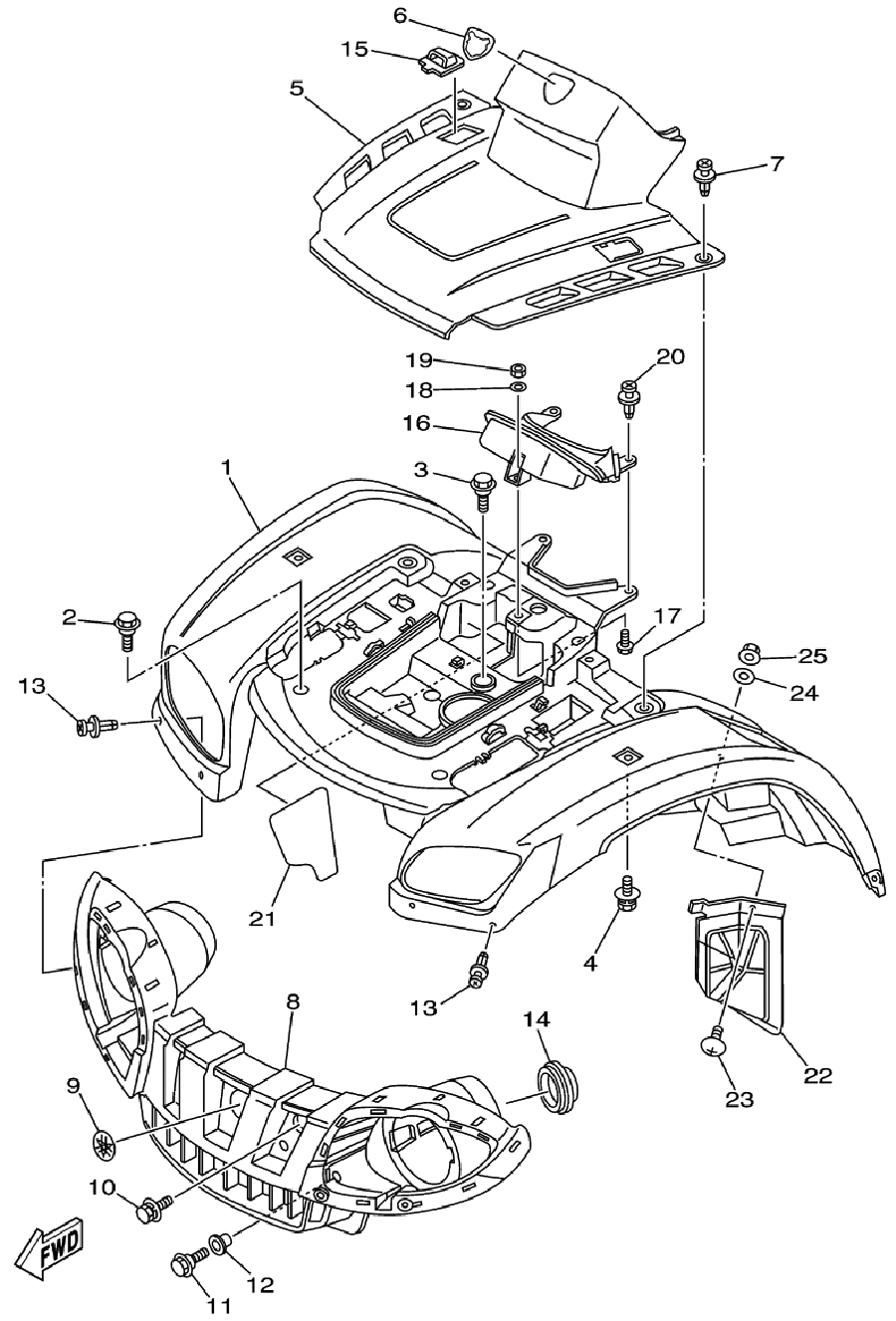

FENDER - FRONT для Yamaha GRIZZLY 660 4x4 DUCKS UNLIMITED EDITION YFM66FAHDV - 2006 года выпуска
-
№АртикулНазвание
-
15KM-W2151-H0-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
290109-063F1-00 BOLTBOLT
-
390109-063F1-00 BOLTBOLT
-
490119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
55KM-23391-H0-00 PANEL, FRONTPANEL, FRONT
-
62C6-26232-00-00 EMBLEM 3DEMBLEM 3D
-
790269-07076-00 RIVETRIVET
-
85KM-28309-00-00 GRILLE, FRONTGRILLE, FRONT
-
95KM-2175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
1090119-06056-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1195807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1290387-06648-00 COLLARCOLLAR
-
1390269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
145GH-28349-00-00 CAPCAP
-
155KM-23338-00-00 CAP, SIDE 1CAP, SIDE 1
-
165KM-2837L-00-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
1790109-063F5-00 BOLTBOLT
-
1890201-07081-00 WASHER, PLATEWASHER, PLATE
-
1995317-06600-00 NUTNUT
-
2090269-07076-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
215KM-21575-10-00 SEAL 1SEAL 1
-
225KM-2193A-00-00 PROTECTORPROTECTOR
-
2390149-06021-00 SCREWSCREW
-
2490201-06557-00 WASHER, PLATEWASHER, PLATE
-
2595707-06300-00 NUT, FLANGENUT, FLANGE
